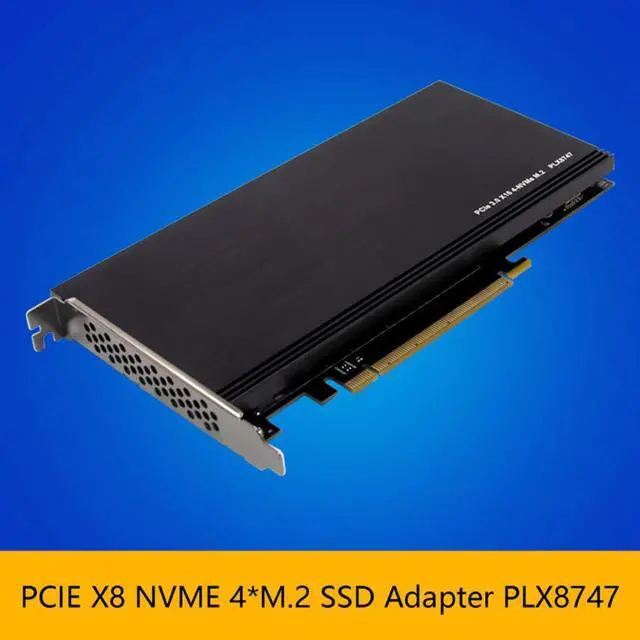

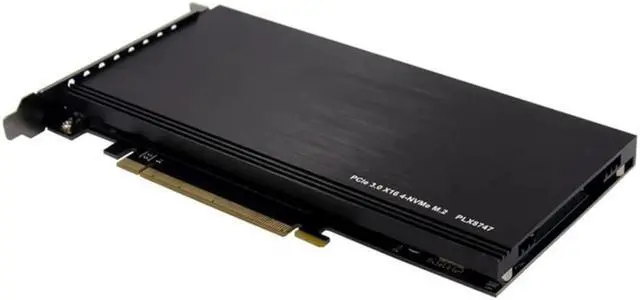

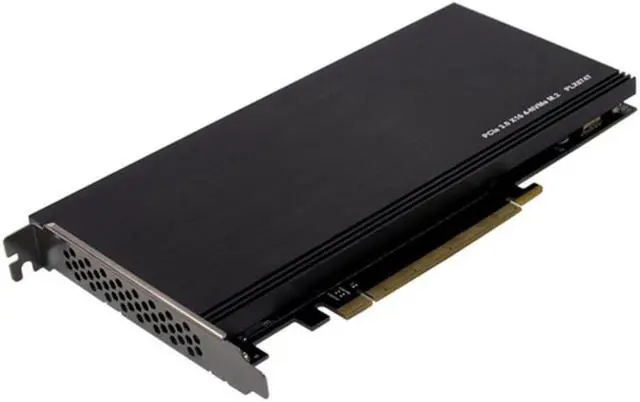

PCI-E 3.0 X16 PLX8747 to 4XM.2 NVMe SSD Riser Card Adapter for Miner BTC Mining Expansion Card

Origin:CN(Origin)
Type:Cable Adapter
Certification:NONE
Item name:PLX8747 PCIE X16 4Port M.2 KEY M NVMe SSD RAID Riser Card
Fit for:PC Laptop
Lane supports 2.5Gb:1GBs transfer rate per lane
Bus interface:PCI Express 3.0 X16
Support M.2 SSD module size:2230, 2242, 2260, 2280, 22110

PCI-E 3.0 X16 PLX8747 to 4XM.2 NVMe SSD Riser Card Adapter for Miner BTC Mining Expansion Card
Compliant with PCI Express specification revision v3.0, backward compatible with PCIe 2.0, PCIe 1.0 and PCIe1.0a
PCI power management specification revision 1.2
Lane supports 2.5Gb: 250MB/s, 5Gb: 500MB/s and 8Gb: 1GB/s transfer rate per lane
Bus interface: PCI Express 3.0 X16
Support NVM Express (NVMe), M.2 specification revision 0.9
Support 4 ports x 16 channels M.2 Key M NVMe SSD device
Support M.2 SSD module size: 2230, 2242, 2260, 2280, 22110
Support M.2 "M" key through PCIe protocol
LED read/write indicator
Onboard active cooling fan
Automatically detect channel configuration at startup
All ports support hot swap
Operating temperature range: 0~85 Celsius
Colour:black
Material:metal
Size:211 x 110mm
Package Contents:
1 * Adapter
1 * radiator
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
