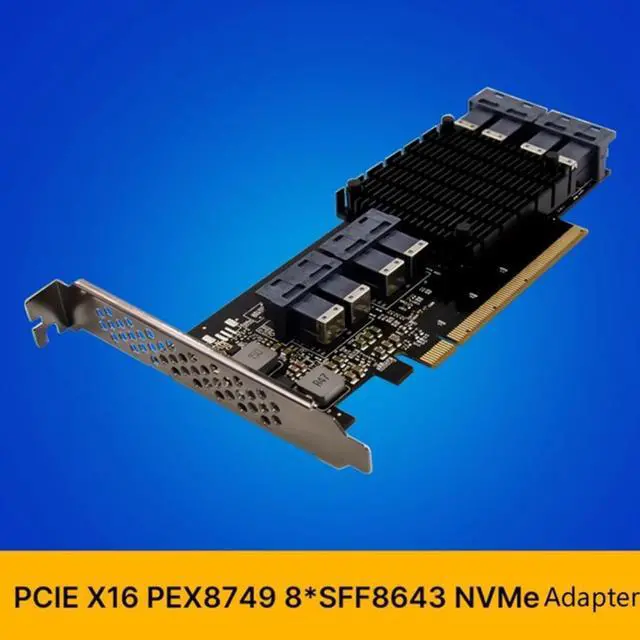

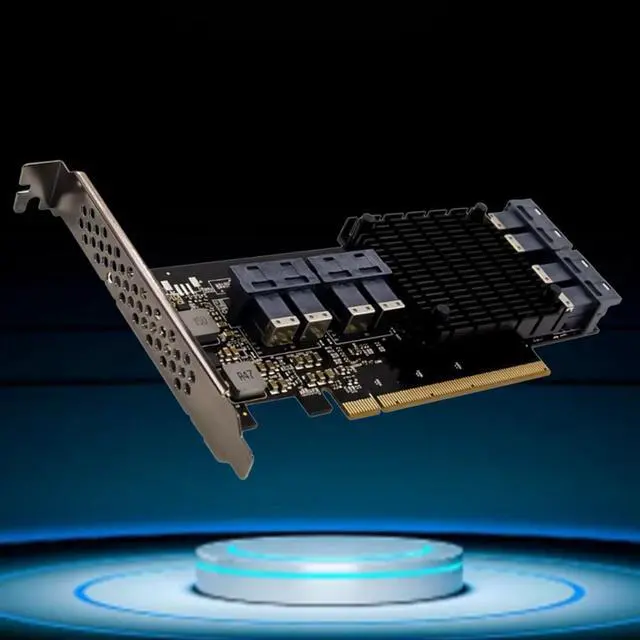

PCI-E 3.0 X16 Riser Card PEX8749 8-SFF8643 U.2 SSD Expansion Card Server-Class Adapter Support PCI Express Nvme

Certification:NONE
Origin:CN(Origin)
Output Voltage:12V
Output Current:2.25A

PCI-E 3.0 X16 Riser Card PEX8749 8-SFF8643 U.2 SSD Expansion Card Server-Class Adapter Support PCI Express Nvme
System requirements: For Windows 10 /Windows 8 /Windows 7, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support PCIe-NVMe
Support PCIE Gen3, PCIE Gen2, PCIE Gen1, PCIE Gen3 slot is recommended to achieve high performance.
Widely used in PC computers, servers, industrial computers, consumer electronic equipment, storage devices, etc.
The installation is simple, no driver is required, and it is a solution dedicated to meeting the increasing storage needs of users.
Heat dissipation material: 6063 T5 aluminum (built-in heat sink design, effective and fast heat dissipation)

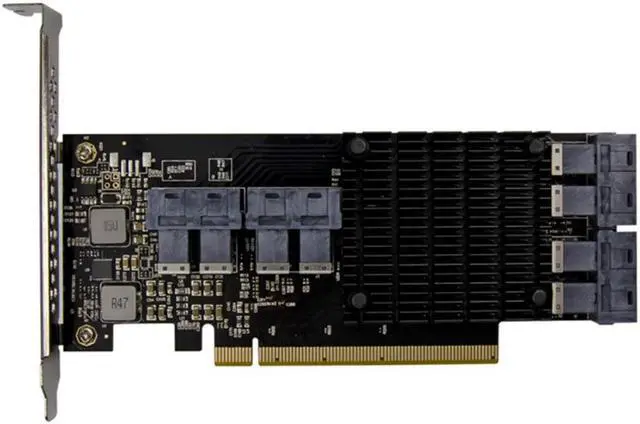

PCI Express 3.0 X16 bandwidth (32Gb/s) PEX8749 U.2 SFF-8643 NVMe adapter card, using PLX PEX8749 chip. 8 U.2 (SFF8643) interface devices can be transferred through the host PCI Express x16 slot, with PCI Express split protocol PLX8749 main control chip, BIOS supports PCLs slot bifurcation, and multi-host PCI Express switching function storage solution.
Enables users to connect multiple hosts to their respective endpoints through scalable, high-bandwidth, non-blocking interconnection, so as to communicate with various applications and storage system platforms including servers, storage, communication and graphics platforms. Very suitable for fan-out, aggregation and peer-to-peer traffic modes.
PCI Express 3.0 x16 PEX8749 U.2 SFF-8643 NVMe riser card, no operating system motherboard model compatibility requirements, etc., only the motherboard PCI Express x16 slot can be easily expanded.
Main control chip: PLX PEX8749
Bus interface: PCI Express 3.0 x16, backward compatible with PCIe 2.0, PCIe 1.0
Interface type: SFF-8643 Min SAS HD version 3.5
Transmission interface: 8 x U.2 SFF-8643 (NVMe channel)
Transmission rate: 2.5Gb (250MB/s), 5Gb (500MB/s), 8Gb (1GB/s)
Compatible devices: U.2 SSD, SAS SSD, NVME HDD/SSD
Colour:black
Material:metal
Size:157 x 70 x 10mm
Package Contents:
1 * Adapter
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
