M.2 SSD PCIE Adapter Aluminium Alloy Shell LED Expansion Card Computer Adapter Interface M.2 NVMe SSD NGFF To PCIE 3.0 X16 Rise

Origin:CN(Origin)
Type:Solid State Drive Conversion Card
Certification:NONE
interface:other
Types of:Riser card

M.2 SSD PCIE Adapter Aluminium Alloy Shell LED Expansion Card Computer Adapter Interface M.2 NVMe SSD NGFF To PCIE 3.0 X16 Rise
Overview

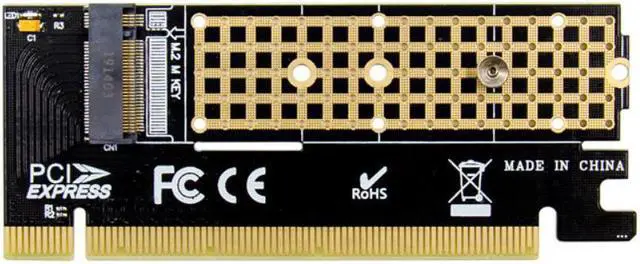

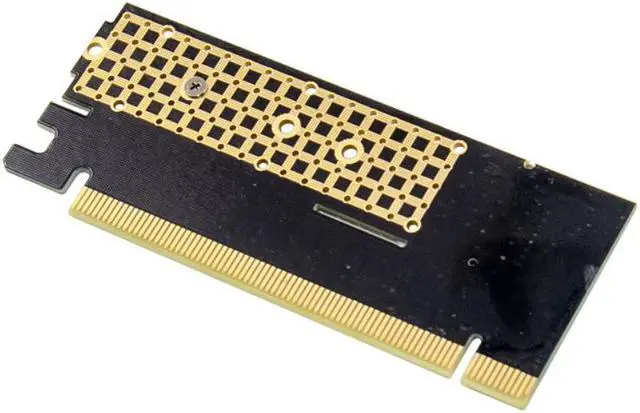

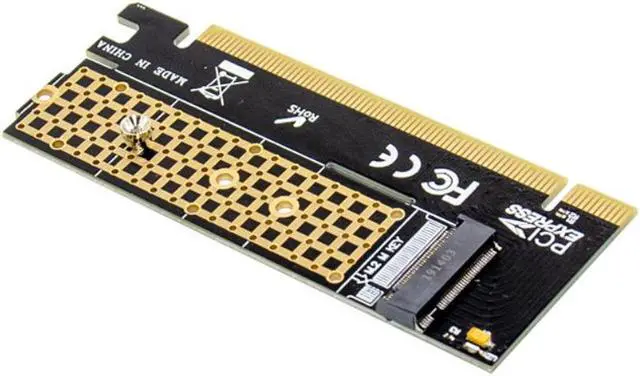

The PCIe X16 M.2 M-key NVMe SSD adapter is a multifunctional NVMe conversion card. It can support the PCIe protocol NVMe SSD directly connected to the motherboard, or support the SATA protocol NVMe SSD connected to the SATA port of the motherboard using a SATA cable. It supports ultra-high-speed PCI Express V3.0 X16 channel transmission bandwidth up to 32GT/S, and supports serial ATA V3.0 transmission speed up to 6Gbps. Through the adapter, the operating speed of the system can be increased, and the efficiency of office and entertainment can be improved.
feature
-Compliant with PCI Express Specification Version 3.0
-Compliant with Serial ATA Specification Version 3.0
-Supports NVMe key M.2 solid state drives, including 2230, 2242, 2260 and 2280 drives
-Backward compatible with PCIE V2.0 and V1.0 motherboards
-Support any "M" key M.2 solid state drive
-Drive size is 80, 60, 42 and 30mm
-M-Key interface can be inserted into the M.2NVMe Sida protocol solid state drive, and then plug in the Sida cable to connect to the motherboard, using PCI E power supply without external power supply.
-M.2 PCIe SSD gets power from the motherboard PCIe bus slot 3.3V
*No driver is required because the driver is transparent to the operating system
