Bluetooth 12V MP3 Decoder Board Decoding Module MP3 WAV U Disk TF Card USB/SD Digital Player Audio Board with Remote Control

Origin:CN(Origin)
Item Type:Shell
Voltage:12V

Bluetooth 12V MP3 Decoder Board Decoding Module MP3 WAV U Disk TF Card USB/SD Digital Player Audio Board with Remote Control

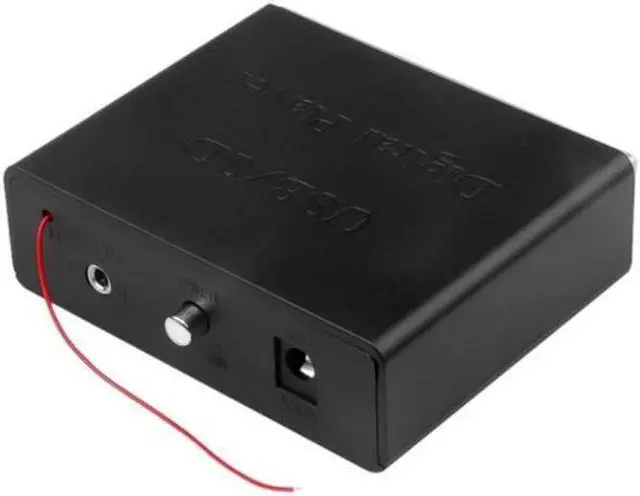

Model: HLX-D079BT (with Bluetooth) Shell size: 88*27MM; depth: 73MM
Function introduction: Zhongke Nanxun solution/support Bluetooth call function/dual decoding MP3, WMA, WAV, FLAC, APE format music/read USB disk/read TF card/radio FM/external audio input LINE IN/infrared remote control/supply voltage 12V;
Function description:
1. Main functions
1. Double decoding supports music in MP3 /WMA / WAV / FLAC / APE format;
2. Support Bluetooth call function;
3. Support TF card interface, support USB interface (U disk);

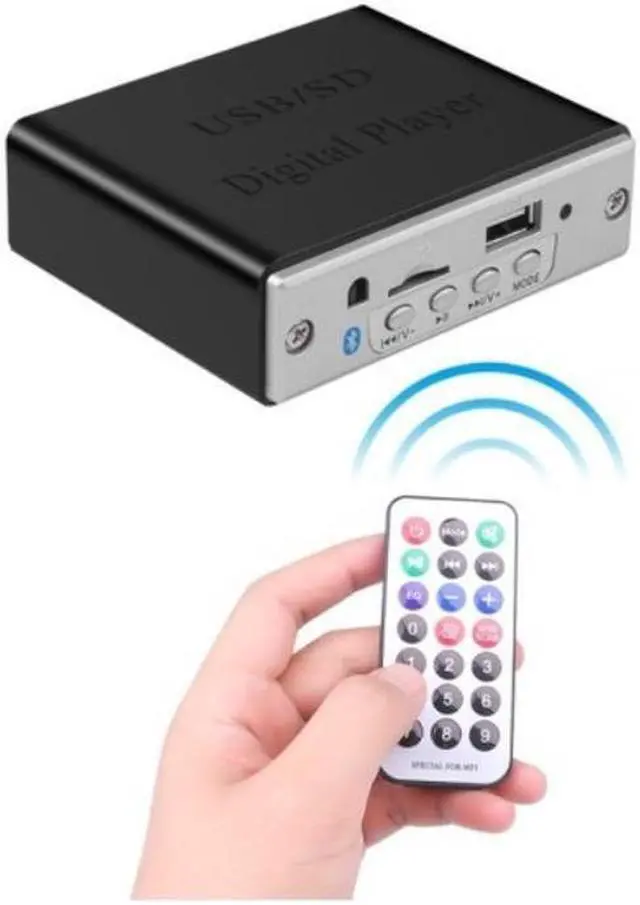

4. Support infrared remote control operation at a distance of 10 meters;
5. Support external audio source input LINE IN;
6. Support for radio FM, radio frequency band (87.5MHZ108.0MHZ);

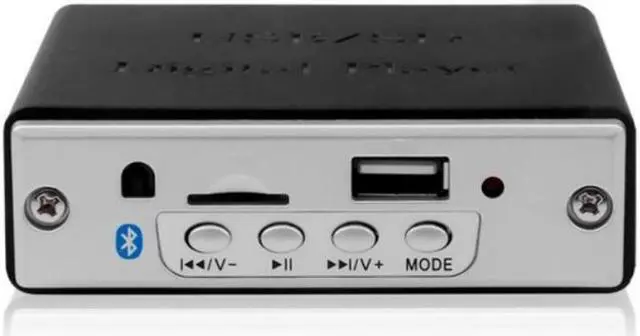

7. Buttons: Four-button multi-directional control, VOL-/ AUTO / VOL+ / MODE;
8. LED indicator;
9. The power supply voltage is 12V;
Second, the key operation details
To
1. VOL- button (previous song/volume down): in MP3 state, short press VOL- to last song, long press to decrease volume; in FM state, short press to increase a station number; in Bluetooth Under function, short press is the previous Bluetooth song, long press is the volume decrease.
2. AUTO button (play/pause): short press AUTO in MP3 state to play/pause; short press in FM state to play/pause, long press to automatically close and save the station; short press in Bluetooth function to play /pause.
3. VOL+ button (next song/volume increase): in MP3 state, short press VOL+ for the next song, long press to increase the volume; in FM state, short press to adjust the station number down; in the Bluetooth function Short press for the next Bluetooth song, long press to decrease the volume.
4. MODE button: Switch between USB / TF / radio FM / audio input LINE IN / Bluetooth function in turn.
