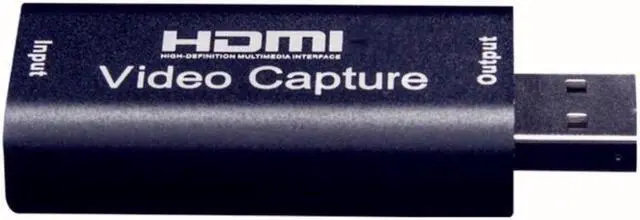

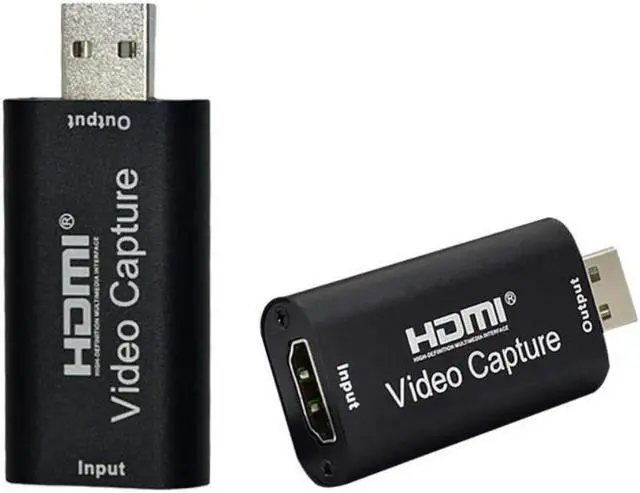

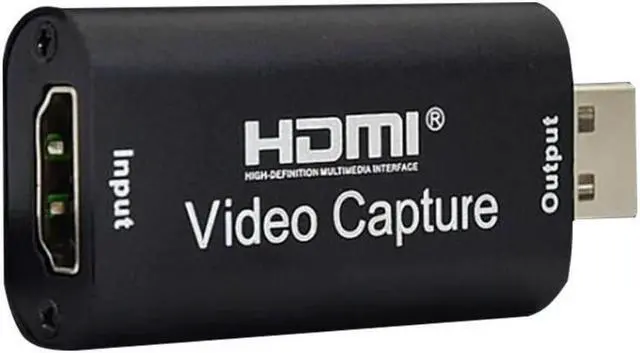

Video USB 2.0 Capture HDMI-compatible Card Video Grabber Record Box for PS4 Game DVD Camcorder Camera Recording Live Streaming

Certification:NONE
Origin:CN(Origin)
Resolution:1080P
interface:USB

[Product Name]HDMI to USB2.0 video capture card
[product alias]Live video capture card, USB2.0 video capture card, HDMI video capture card
[product introduction]The USB2.0 acquisition card is compact and portable, plug and play without power supply, and has no jamming in HD. It can not only collect HDMI video but also collect HDMI audio at the same time, and can transmit audio and video signals to computers and smart phones for preview and storage. It is suitable for high-definition collection, teaching recording, medical images, etc. Through many third-party broadcast collection software, the functions of preview, recording, collection, live broadcast, etc. The HDMI video collection conforms to the standards of UVC and UAC and is easy to use.
[product features]
1. Support input maximum resolution 3840×2160@30Hz;
2. Support the maximum output resolution of 1920×1080@30Hz; Hz;
3. Support 8/10/12-bit dark colors;
4. Support AWG26 HDMI standard cable: input up to 15 meters (1080P and below resolution);
5. Support most acquisition software, such as VLC, OBS, Amcap, etc.;
6. Support Windows, Android and MacOS operating systems
7. Support all third-party player software compatible with UVC and UAC protocols;
Product Specifications
1. Input interface: 1*HDMI interface;
2. Output interface: 1*USB2.0 interface;
3. HDMI input: maximum resolution 3840×2160@30Hz
4. USB output: maximum resolution 1920 × 1080@30Hz;
5. Video output formats: YUV and JPEG.;
6. Audio output format: L-PCM;
7. Input cable distance: 15m, AWG26 HDMI standard cable;
8. Audio and video capture: comply with UVC (USB video) and UAC (USB Audio) standards;
9. Maximum working current: 0.4a/5v DC;
10. Working temperature:-10-55 ;
11. Dimension (L x W x H): 63x28x13 (mm);
12. weight: 22g;;
[Connection instructions]
1. Connect the UHD signal source to the HDMI input of video capture with an HDMI cable.
2. Connect the computer to the USB port of video capture with USB cable.
3. Operating steps of 3.USB video capture (OBS): open the software select the source "+" "video capture device".
set image size select "studio mode" select "start recording".
[Yan Color Classic black;
[Packing List] 1 HDMI capture card, 1 product manual, 1 color box packaging;
