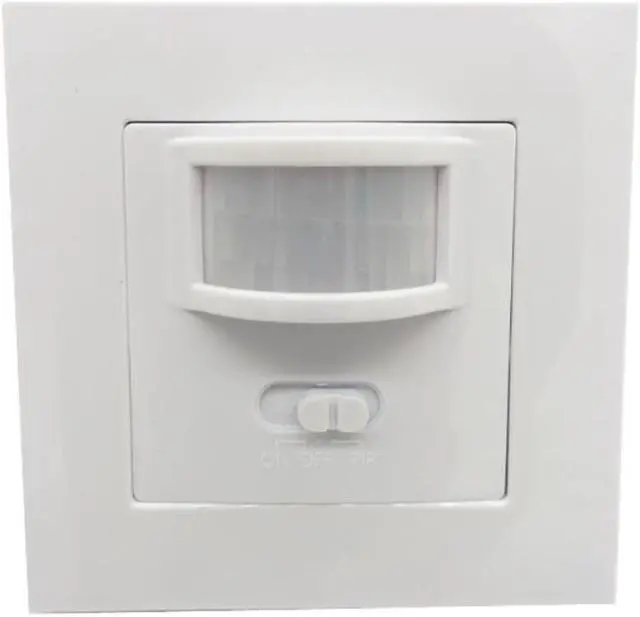

AC 110V-220V Smart PIR Motion Sensor Switch Security Light Control IR Infrared Movement Induction Detector ON/OFF/PIR Switch

Origin:CN(Origin)
Certification:NONE
Operating Voltage:110-240v
Sensing range:5-8m

Input voltage: 110V-240V/AC;
Rated load: 500W for resistive loads such as incandescent lamps, 150W for inductive loads such as energy-saving lamps, LEDs and energy-saving lamps.
Sensing distance: 10 meters (140 degrees); Delay: 5 seconds to 10 minutes adjustable;

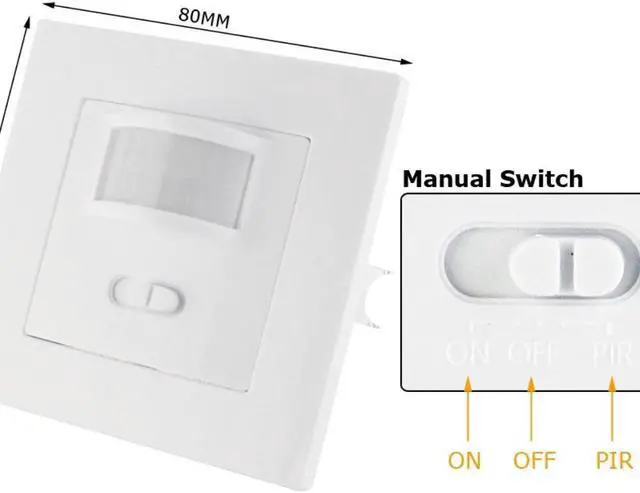

Sensitivity: (night and day) adjustable, with ordinary switch function. The adjusting knob is located under the face cover; Pry open the panel with a screwdriver to adjust. The time knob adjusts the delay length, and the lux knob adjusts the sensitivity ( when it is adjusted to the sun position, it is sensed during the day and at night, and when it is adjusted to the moon position, it is sensed only at night).

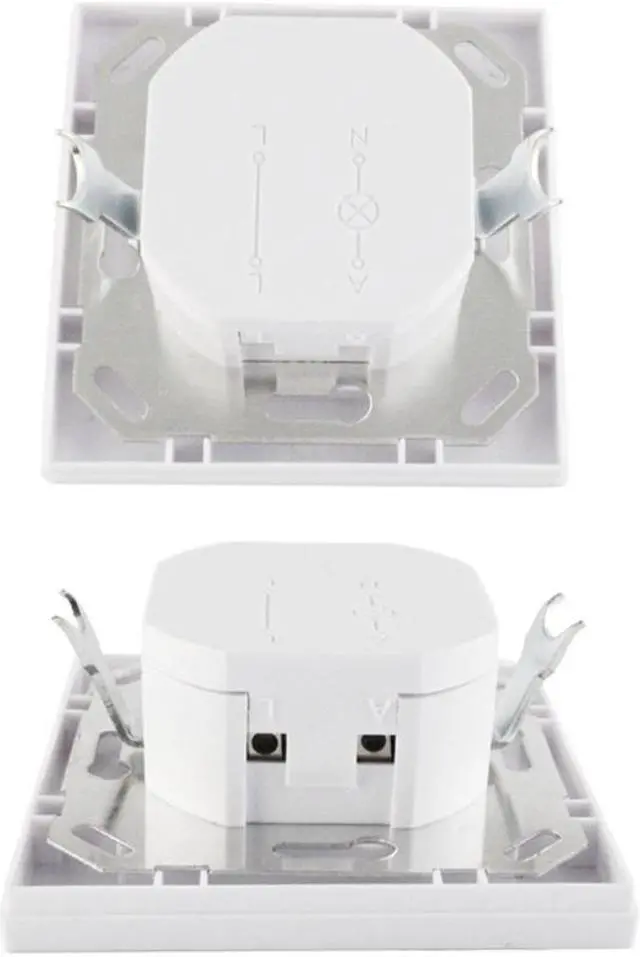

Wiring instructions: the live wire of 220V power supply is connected to the l connection hole of the induction switch, and the a connection hole of the switch is the live wire transmission
