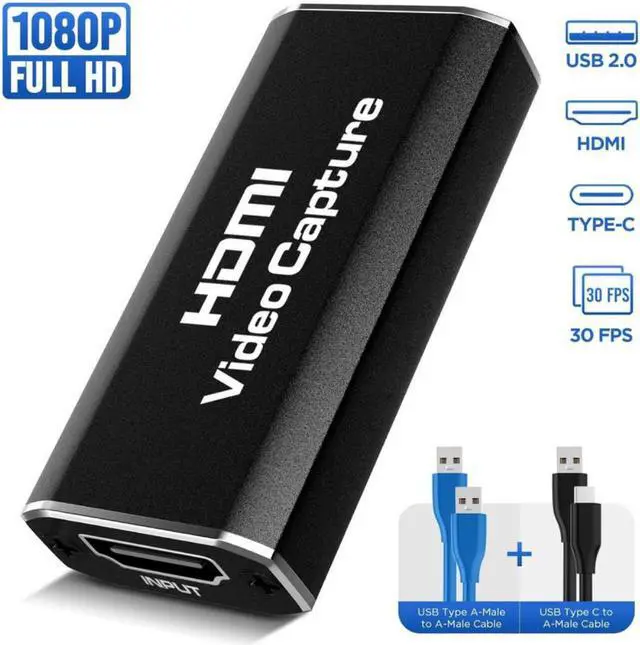

4K Video Capture Card USB 3.0 2.0 HDMI-compatible HD 1080p Video Grabber Record Box for Switch Camera Live Streaming Recording

Certification:NONE
Origin:CN(Origin)
Resolution:1080P

USB2.0 audio and video capture card live recording box HDMI to USB2.0 Capture Card

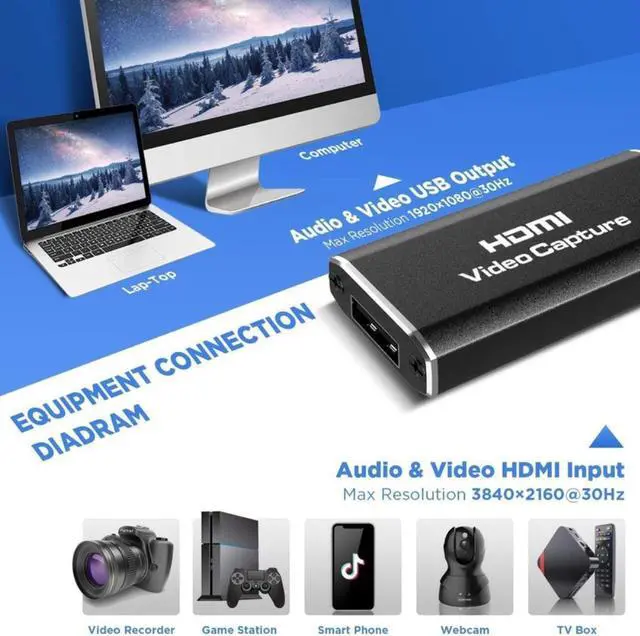

This USB 2.0 acquisition card can collect both HDMI video and HDMI audio at the same time. It can transmit audio and video signals to computers and smartphones for preview and storage. Suitable for high-definition acquisition, teaching recording, medical imaging, etc.
Product features:
* Support the maximum input resolution of 4K/30HZ;
* Support maximum output resolution up to 1080P/60Hz;
* Support 8/10/12 bit color depth;
* When using standard AWG26 cables, the input transmission distance is up to 15 meters (1080P and below resolution);
* Support most acquisition software, such as VLC, OBS, Amcap, etc.
* Support Windows, Android and MacOS;
* Comply with USB video UVC specification;
* comply with USB audio UAC specification;
*No external power supply, small size and easy to carry.
To
Product specifications:
HDMI resolution......................................... ....... The highest input can support 4K
Video input format........................................ 8/10/12 bit color depth
Video output mode ............................................... ............. YUV, JPEG
Video output resolution.......................................... maximum output resolution 1080p
Support audio format ............................................... ................. L-PCM
Input cable length............ 15 meters, AWG26 HDMI standard cable
Maximum operating current.......................................... 0.4a/5vdc
range of working temperature............................................... ........ (-10 to +55)
size................................................. ............... 60x28x13 (mm)
The weight ................................................ ........................ is 0.1KG
To
Packing: Color box (capture card + 1pc USB3.0 to Cable+1pc type- Cable+1pc English manual)
