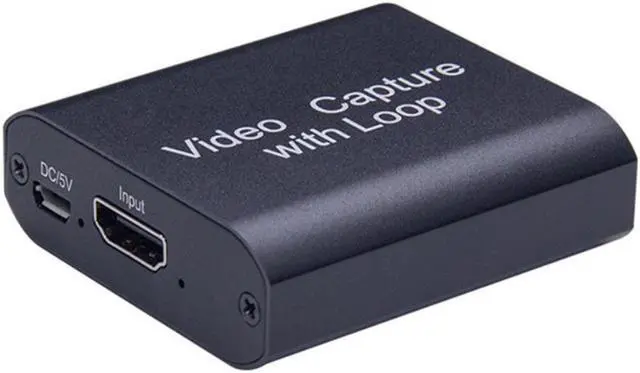

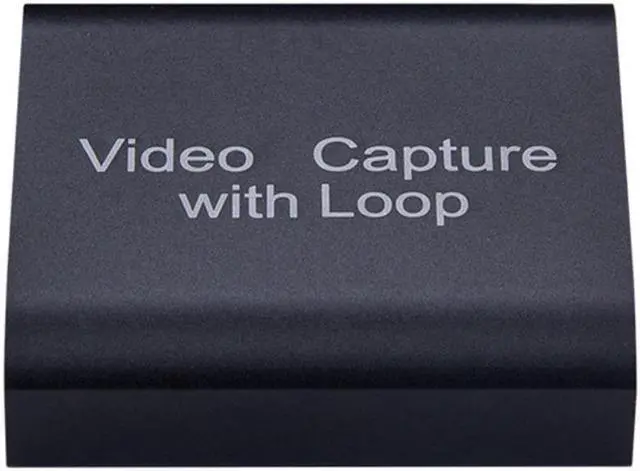

USB 3.0 4K Graphics HDMI-compatible Capture Card placa video Recorder Box for Live Streaming Video Recording digital converter

Certification:NONE
Origin:CN(Origin)
Resolution:1080P

For cross-border e-commerce platform, our company is the source factory, and 4K HD HDMI audio and video acquisition card has local output. Small and exquisite in appearance, portable, plug and play without power supply, high-definition without jamming, and widely used in live games, live webcasts, live teaching, live s, live meetings, etc.
Product introduction:
This acquisition card can collect both HDMI video and HDMI audio, and can transmit audio and video signals to computers and smart phones for preview and storage. Suitable for high-definition acquisition, teaching recording, medical imaging, etc.
Product features:
* Support HDMI local loop out;
* Support the maximum input resolution of 4K;
* Support maximum output resolution up to 1080P;
* When using standard AWG26 cables, the input transmission distance is up to 15 meters (1080P and below resolution);
* Support most acquisition software, such as VLC, OBS, Amcap, etc.;
* Support Windows, Android and MacOS;
*Comply with USB video UVC specification;
* Comply with USB audio UAC specification;
* Small size and easy to carry.
Product specifications:
HDMI resolution......................................... ....... The highest input can support 4K
Video input format............................................... ......... 8/10/12 bit color depth
Video output mode........................................ YUV, JPEG
Video output resolution............................................. .. Maximum output resolution 1080P
Support audio format............................................... ................. L-PCM
Input cable length .......................................... 15m, AWG26 HDMI standard cable.
Maximum working current............................................... ............. 0.7A/5VDC
Operating range ................................................ ....... (-10 to +55).
size................................................. ............... 59x56x19 (mm)
weight................................................. .........................156g
