HDMI-compatible 2.0 Audio Extractor To RCA 4K 60Hz YUV4:4:4 HDR Audio Converter Adapter 4K To Optical TOSLINK SPDIF

Certification:NONE
Origin:CN(Origin)
Resolution:4K 60HZ
Color:black
type:HDMI audio separation

The converter allows the HD Source connected to single HD Display and adds extra one L+R and SPDIF and 3.5 headphone jack audio out port.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
FEATURES

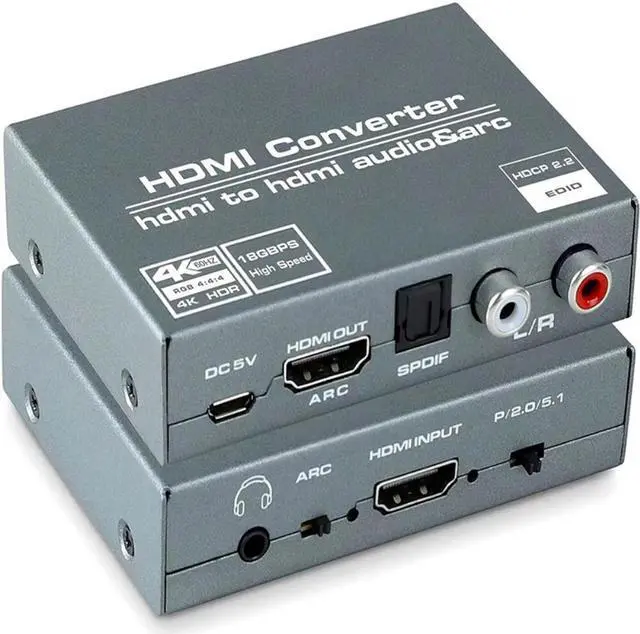

*One HDMI input converted to one HDMI(ARC)+ Audio (SPDIF+R/L+3.5Jack)output
*Support 4K x 2K@60Hz YUV4:4:4, Support 3D, Maximum support for HDCP2.2
* Supports) HDR 10 Dolbby Vision and Dolbby Atmos
* Support deep color24/30bit,36bit
*Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
*Digital audio format, as DTS-HD/Dollby-trueHD/LPCM7.1/DTS/Dollby-AC3/DSD
*Support signal retiming
* Support for HDMI ARC.
* Easy to Connect, Plug&Play.
*Need DC5V power supply.
SPECIFICATIONS:
HDMI resolution: 4k2k@60Hz/3D /1080p/1080i/720p/720i/576p/576i/480p/480i
Max bandwidth: 600MHz; Max baud rate: 18.2Gbps;
Input cable distance: 10m AWG26 HDMI2.0a standard cable
Output cable distance: .10m AWG26 HDMI2.0a standard cable
Dimension (L x W x H): 84.5X61.8X21 (mm)

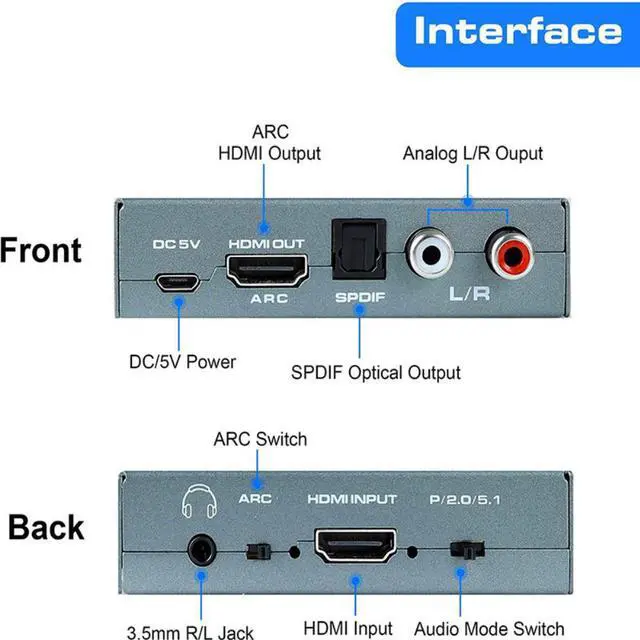

Operating and Connecting:
1.To use one hdmi 2.0 cable to connect the HD Source with the input HDMI2.0 port.
2.To connect the converter hdmi2.0 output port with the HD Display.
3.To use one audio cable to connect the converter R/L port with the audio equipment.
4.To use the optical cable to connect the SPDIF port with the audio equipment.
5.To connect the converter with 5V DC power adaptor.

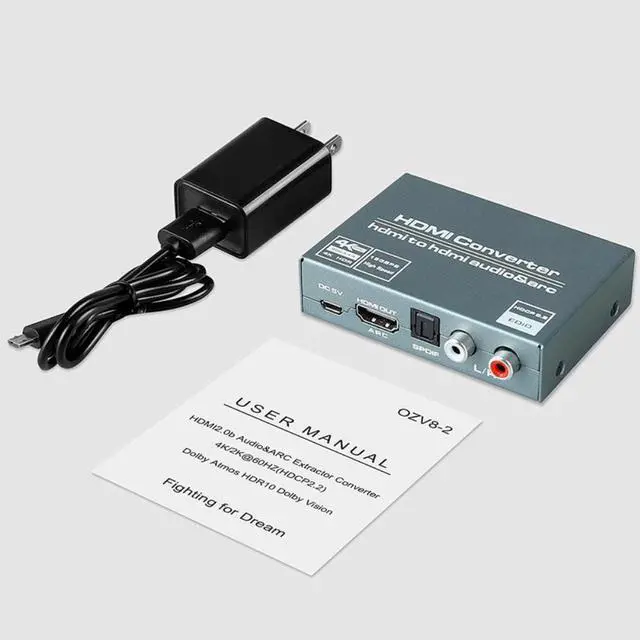

Package include:
1 X HDMI Audio Extractor
1 X 5V/1A Power Adapter
1 X User Manual
