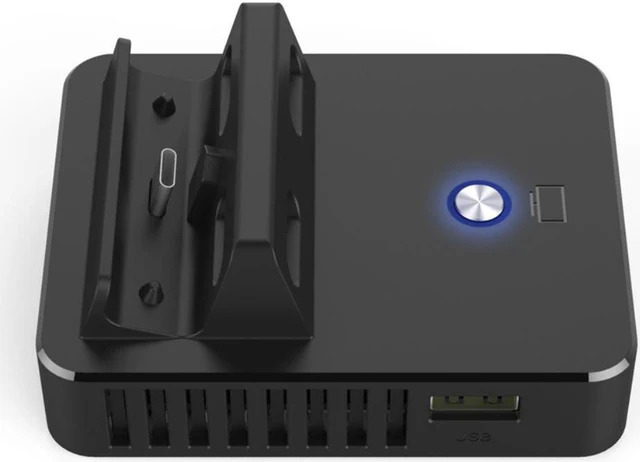

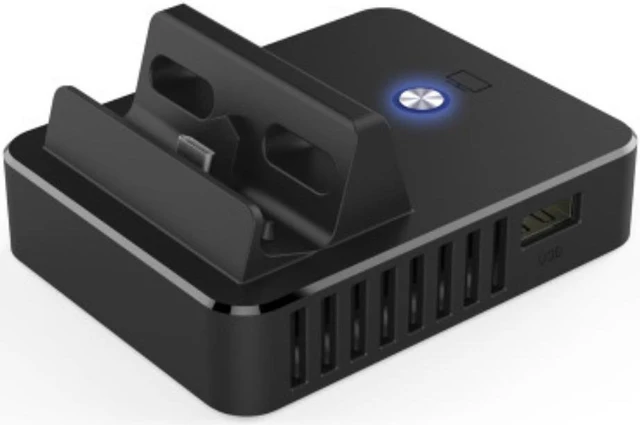

TV Switcher Type-C To 4K HDMI-compatible Adapter with USB2.0 3.0 Ports Charging Dock Stand for Nintendo Switch NS Console

Certification:NONE
Origin:CN(Origin)
colour:black
Connection method:HDMI+ USB +TYPC
Material:ABS
Applicable Products:SWITCH host
Video/audio interface:HDMI

TV Switcher Type-C To 4K HDMI-compatible Adapter with USB2.0 3.0 Ports Charging Dock Stand for Nintendo Switch NS Console
SwitchTVHC-A3566
characteristic:
1 One-key display switching, ly switch the display interface of the host and TV.
2 The unique design of heat dissipation structure prevents the host from crashing due to the inability to dissipate heat.
3 The abutment designed with the principle of mechanics no longer worry about the product is not solid.
4 This product uses the HDMI 2.0A version 4K video output solution to make the game screen clearer.
5 Adopting the design scheme of charging while playing, get rid of the problem that the host cannot see the display screen on the seat, and easily place it on the desktop while charging and playing games.
6 Support USB3.0 function.
7 Add 2 USB2.0 functions.
Indication method:
1 Lit blue light: host plug-in indication.
2 Turn off the blue light: the SWITCH host dials out or the TV display returns to the SWITCH host screen.
Instructions:

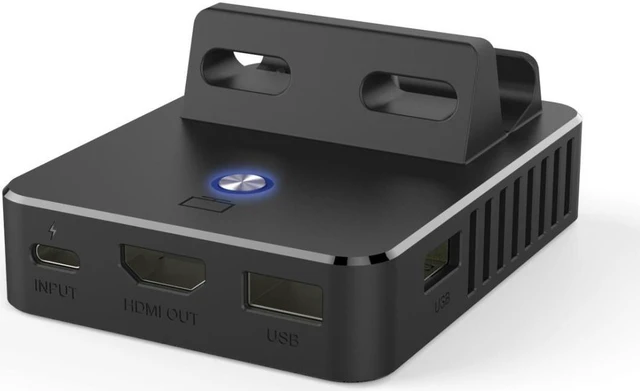

1 After turning on the TV HDMI video input channel, plug one end of the high-definition HDMI2.0A video cable into the HDMI OUT of the product, and connect the other end to the TV video HDMI input interface, as shown in Diagram 1.
2 Align the bottom interface of the SWITCH host with the TYPE C plug on the product and insert it obliquely, as shown in Figure 2.
3 Insert the matching AC power adapter TYPE C plug into the INPUT of the product holder,
4 After the product is powered on, the SWITCH host display interface will be displayed on the large TV screen. At this time, the SWITCH host screen is off and the blue indicator light is on.
5 If you want to switch the TV display interface back to the host display instead of removing it from the product holder, you can achieve the purpose of playing games while charging, then this product can meet your requirements, as long as the blue light of the product lights up. The switch function can be realized by pressing the button, and the blue indicator light goes out at the same time. If you want to turn the interface displayed by the host to the TV screen again, press the button again to turn it back to the TV, and the blue indicator light will be on at the same time; cycle operation mode,
Use note:
1 During the charging process, keep it well ventilated and cannot be covered with clothing, PE bags and other items.
2 Do not use in humid and high temperature environments.
