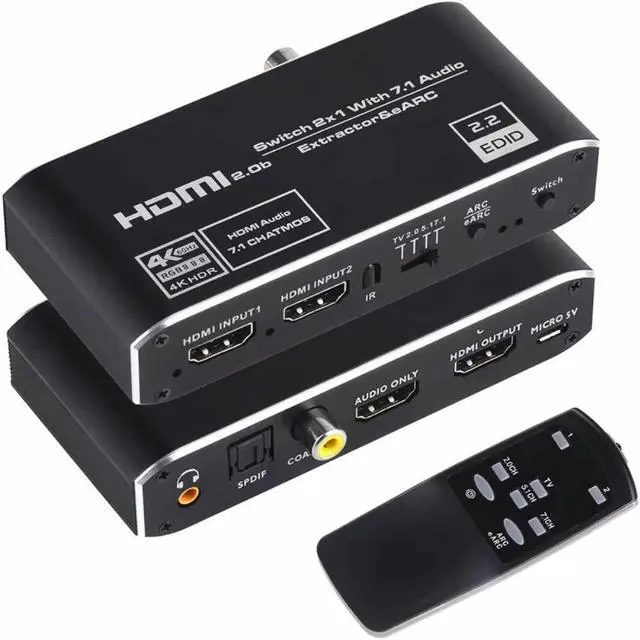

HDMI-compatible Switcher Audio Extractor with ARC & Optical Toslink 2.0 Switch 4K 60Hz with Remote Control for Apple TV PS4/PS5

Certification:NONE
Origin:CN(Origin)
Resolution:4K 60Hz
Type:Switch/distributor

HDMI2.0b 2 in 1 out audio separation+eARC 7.1CH HDCP2.2 4K/60HZ
[2x1 HDMI switcher with audio extractor] High-performance 4K HDMI 2.0 audio extractor. It has 2 HDMI inputs and 1 HDMI output with audio extraction function. Support ARC and eARC functions. The extracted audio can be output through 3.5mm audio jack, Toslink SPDIF, coaxial, HDMI audio port. It allows users to use existing audio receivers to receive 4Kx2K@60Hz, HDCP 2.3 content audio. The product also supports HDMI loop output, and 10-bit HDR (high dynamic range).

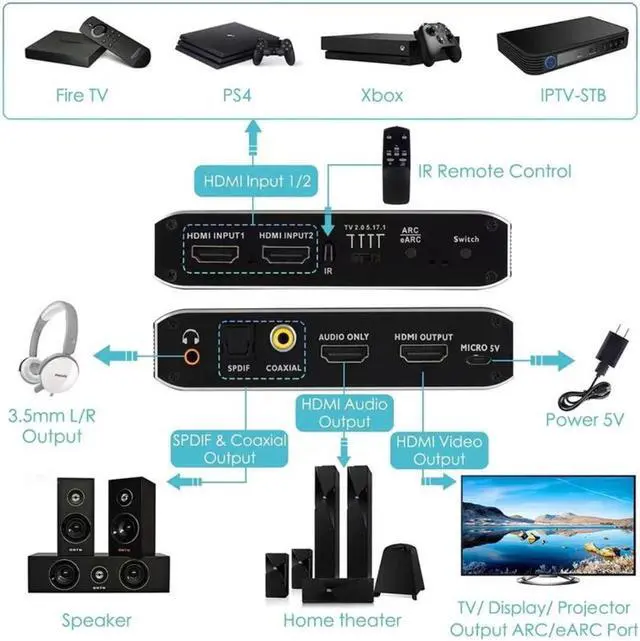

[Support ARC and eARC function] Extract audio from TV to sound bar or amplifier. Connect the HDMI (ARC or eARC) port of the TV to the HDMI output (ARC/eARC) port of this audio converter with an HDMI cable, and then connect the optical or HDMI cable or coaxial cable to the amplifier or sound bar. Please note: eARC and ARC functions are only available for optical SPDIF, coaxial and HDMI audio ports.
[High HDMI input resolution] Support up to 4K@60Hz RGB 8:8:8. Color space: RGB 8:8:8, Ycbcr 4:4:4/4:2:2/4:2:0. Color depth: 8-bit, 10-bit, 12-bit (1080p@60HZ); 8-bit (4kx2k@60Hz RGB 8:8:8/YUV 4:4:4) 8-bit, 10-bit, 12-bit (4Kx2K@60HZ Ycbcr 4:2:2/4:2:0).

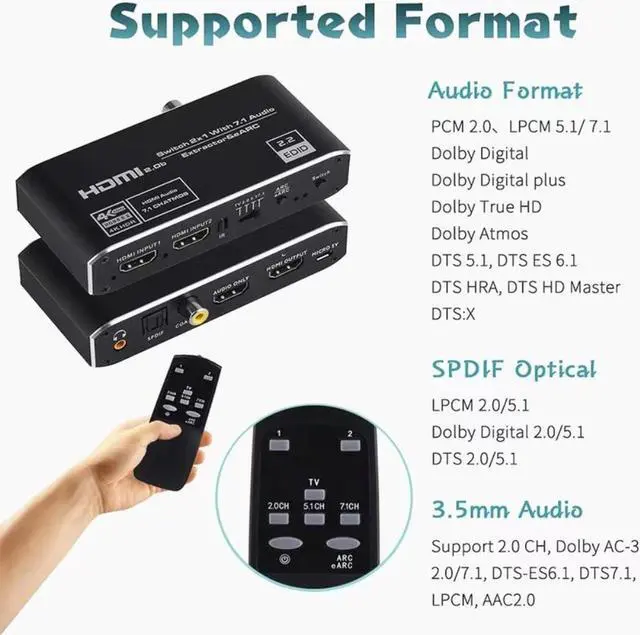

[supported HDMI audio extraction formats] HDMI audio formats: PCM 2.0, lpcm 5.1 / 7.1, Dolby Digital, Dolby Digital plus, Dolby true HD, Dolby atmos, DTS 5.1, DTS es 6.1, DTS HRA, DTS HD master, DTS: X . Support Blu ray 24/50 / 60fs / HD-DVD / xvYCC. SPDIF / coaxial format: lpcm2.0 / 5.1, Dolby number 2.0 / 5.1, dts2.0 / 5.1. When using HDMI output earc / arc function: TV earc / arc audio output port shall be connected to TV with arc / earc function.
[Compatibility] HDCP supports 2.2/2.3, compatible with HDMI 2.0b. HDMI input support: computers, laptops, PS3, PS4, Xbox, Blu-ray DVD players, set-top boxes, etc. HDMI video output support: projector
