HD 3G HDMI-compatible to SDI / SDI to HDMI-compatible Adapter BNC 1080P Video Micro Converter Audio for Camera Monitor HDTV

Certification:NONE
Origin:CN(Origin)
resolving power:1080P 60HZ
Type:HDMI converter

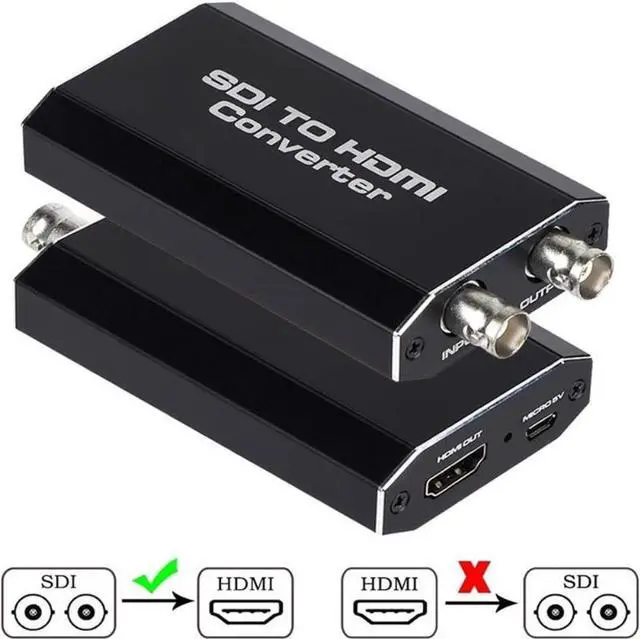

Factory SDI to HDMI HD Converter
SDIInterface is an acronym for serial digital interface. The serial interface is the interface that transmits each bit of the data word and the corresponding data sequentially through a single channel. Due to the high data rate of serial digital signals, they must be processed before transmission.
HDMI
HDMI, High Definition Multimedia Interface (English: High Definition Multimedia Interface) is a fully digital image and sound transmission interface that can transmit uncompressed audio and video signals. HDMI can be used for set-top boxes, DVD players, personal computers, TV games, integrated amplifiers, digital audio and televisions. HDMI can transmit audio and video signals at the same time. Because audio and video signals use the same cable, the installation of the system is greatly simplified.
Application field
It is widely used in the broadcasting room and non programming field of TV stations at all levels using SDI signal, as well as in various optical transmission fields and security fields using HDMI interface.
Specification parameter
2. Video input signal: HD-SDI and 3G-SDI signals
3. Video output signal: one HDMI signal is output (1080P@60Hz)
4. Input audio signal: SDI embedded
5. Maximum working current: 500mA
6. Power adapter specification: AC input (50Hz, 60Hz) 100v-240v; Output: DC 5 ~ 12V / 1A
7. Working temperature: (- 15 to + 55 )
8. Working humidity: 5 to 90% RH (non condensing)
Main functional features
The performance is very advanced, the input end supports the most widely used HDMI1.4 version, and is backward compatible with HDMI1.3 and HDMI1.2.1.1 and below at the same time, and the output end supports the highest-end 3GSDI signal and 1.485GSDI high-definition signal in the industry. It is also compatible with various SD-SDI signals.
The output effect of image quality is first-class, which fully meets the professional requirements of broadcasting room and non-editing system.
Aiming at the 24-hour uninterrupted operation environment of radio and television broadcasting room, the scheme emphasizes stability from design to component selection and production technology, which can meet the requirements of 7 days *24 hours operation
The effective distance is 120 meters
main feature:
l HDMI 1.4a input, 3G SDI output
L full 10bit conversion
l Full HD HDMI supports 8-channel embedded audio
l Optional audio SRC function, support any HDMI audio sampling frequency channel input
l SDI phase locked loop clock filter, 3G SDI output with very low jitter
l HDMI HDCP1.2 local decryption
l Power indicator and video lock indicator
L industrial grade protective metal shell, easy to install and operate
Parameters Table:
Interface
HDMI input port (Type A female socket with locking hole); 2 SDI output (BNC female socket); 5V DC in (Ø3);
power waste
Input video
HDMI v1.3a, 30/36 bits per pixel,RGB or YUV,
SD, HD,525i, 625i, 720p 50/59.94/60,1080i 50/59.94/60,1080p23.98/24/25/29.9/30/50/59.94/60
HDMI Standard Type A connector
Output video
3G, HD, and SD-SDI (auto-selected),
SMPTE-259/274/292/296/372/424/425,
2x BNC
Input audio
HDMI embedded audio,24 bit/48KHz or any other HDMI supports any audio frequency (SRC function exists model), 8 channels max
Output audio
SDI embedded audio,24 bit/48KHz, 8 channels max
Semaphore
Power-Green; Video-Green
Temperature range
0 ~ 40°C (working temperature range); -20 ~ 60 C (storage temperature range)
Regulatory compliance
FCC; CE.
Typical applications:
It is applicable to the conversion output from HDMI source to remote SDI monitor to realize the long-distance coaxial cable transmission of HD audio and video signals.
