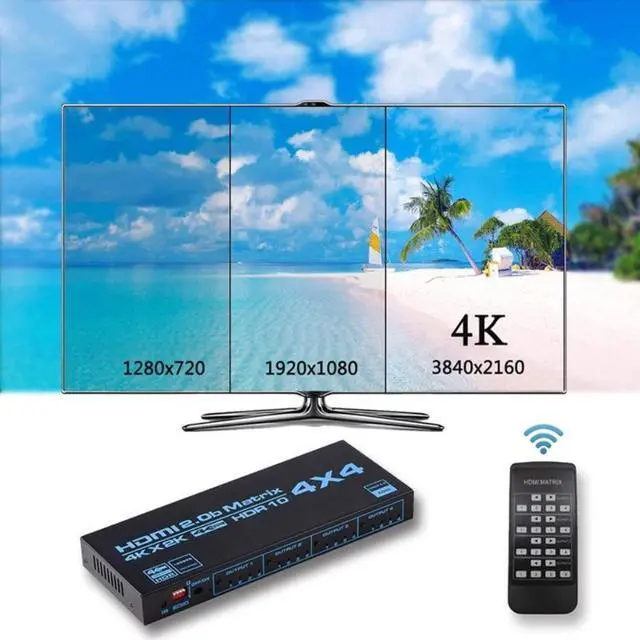

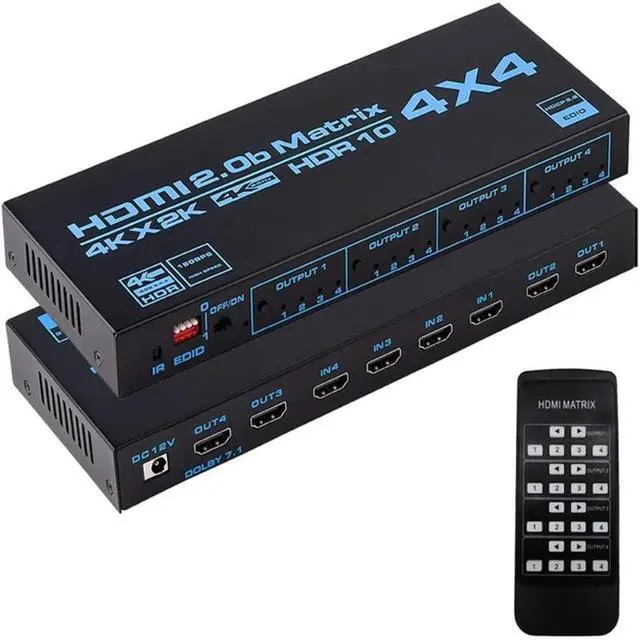

HDMI-compatible Matrix Switch 4x4, 4K Matrix Switcher Splitter 4 In 4 Out Box with EDID Extractor and IR Remote Control

Certification:NONE
Origin:CN(Origin)
Resolution:4K60HZ RGB8:8:8
type:Switch/distributor

HDMI2.0b matrix 4 in 4 out HDMI Matrix 4x4 4K 60HZ HDCP2.2
Product functions and features:
> Matrix function: Four HDMI output ports independently select any one of the four HDMI input ports to achieve different display;
> Allocation function: Allocate any HDMI input to 1/2/3/4 HDMI signal synchronous output to achieve the same display;
> Support ultra-clear 4K*2K@60Hz (YUV444/RGB888), not only 4Kx2k@24/25/30Hz;
> Support HDMI version: Support HDMI2.0b, backward compatible with HDMI1.0, HDMI1.3, HDMI1.4;
> Support HDCP version: HDCP2.2 is backward compatible with HDCP1.4;
> Support audio: support PCM, DTS, AC-3, Dolby Panorama (only HDMI port supports) and HD audio;
> Support 3D, flip the EDID dial switch according to actual needs, select the corresponding 3D video and audio format;
> Automatically identify the highest resolution of the output device, actively reduce the resolution, and perfectly match the 1080P power amplifier and projection;
> Support HDR10/HDR10+;
> Support video resolution 480/576/720/1080/4Kx2K@24/25/30/60Hz;
> Support 4K60Hz Dolby Vision;
> Support lossless output, that is, the separated audio does not affect the HDMI output, and the input and output are exactly the same;
> Support remote control and panel switch switching;
Note: Dolby Vision/Dolby Panorama requires TV support.
HDMI Matrix Switch 4x4, 4K HDMI Matrix Switcher Splitter 4 In 4 Out Box with EDID Extractor and IR Remote Control
The 4 in 4 Out HDMI Matrix Switch allows four HDMI devices to be switched or split easily to four HDMI compatible monitors or projectors.
It is suitable for home theater, villa, conference room, shopping mall, video wall, school and corporate training environments etc.
Specifications
-Product Type: HDMI Matrix 4x4
-Interface Type: 4 HDMI in, 4 HDMI out
-Color: Black
-Power Supply: DC 12V.
-Dimension (LxWxH): 230*90*25mm
Features
-Support HDMI 2.0b HDCP 2.2
-Support 3D video format
-Support highest resolution up to 3840*2160/60Hz YUV4:4:4
-Support 18Gbps data rate and tmds clock up to 600Mhz
-Support deep color 8/10/12/24bit
-4 HDMI inputs switch and split to 4 HDMI displays
-Input cable distance:
-Output cable distance:
Package contents
1x HDMI Matrix 4X4
1x 12V power adapter
1x IR Remote Control
1x User Manual
Note:

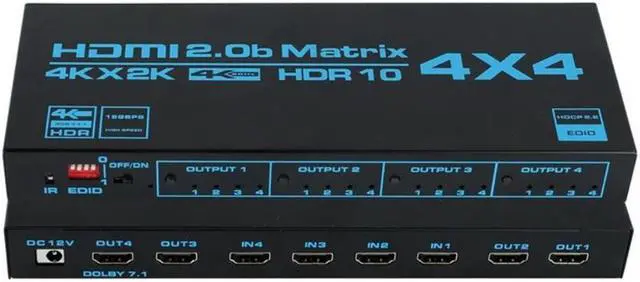

Instruction of Buttons and LED:
1. Instruction of LED: IN1-IN2 IN3-IN4 indicator is the corresponding input sources out from OUT1 or OUT2 or OUT3 or OUT4.
2. Operation of Buttons: OUT1 or OUT2 or OUT3 or OUT4. is used to switched the corresponding input source out from OUT1 or OUT2 or OUT3 or OUT4
