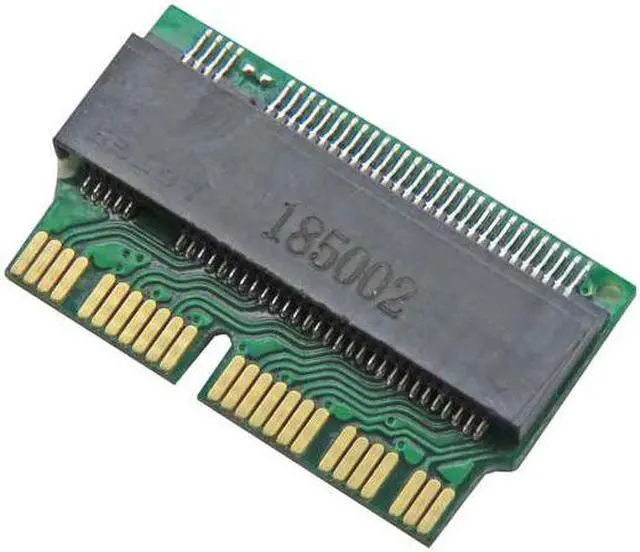

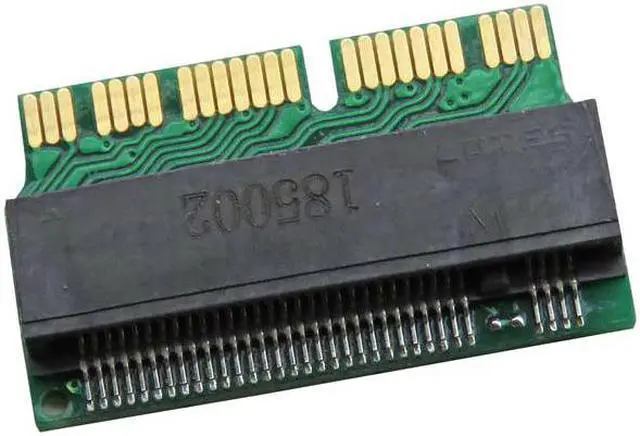

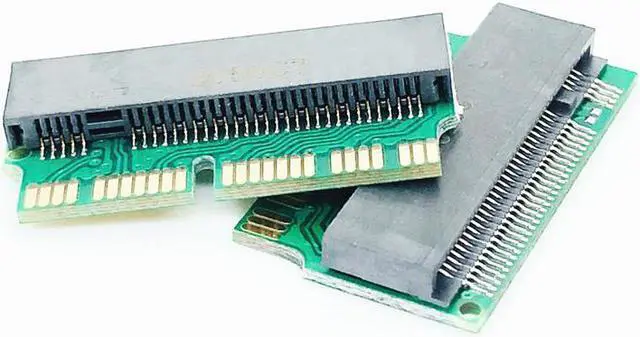

QINDIAN Add On Card NVMe PCIe M.2 M Key SSD Adapter Card Expansion Card for Macbook Air 2013 2014 2015 2017 For MAC 10.5 or more

Certification:NONE
Origin:CN(Origin)
Package:Yes
Model Number:AC4332
Type:Add On Cards
Interface Type:PCI Express
Apply to:AHCI Protocol 2230-2280 PCIe x4 M.2 (NGFF) SSD
Compatible with:for apple macbook air 2013 2014 2015 2016 2017
For:A1465 A1466 A1502 A1398
M.2:M Key
Interface:M.2 to SSD for Macbook
Feature 1:SSD for Macbook
Feature 2:adapter hard disk for Macbook
Feature 3:m2 ssd adapter for Macbook
Feature 4:macbook ssd adapter

QINDIAN Add On Card NVMe PCIe M.2 M Key SSD Adapter Card Expansion Card for Macbook Air 2013 2014 2015 2017 For MAC 10.5 or more
About Description:
Specification:
Product Master Control: No
Product color: PCB green
Product weight: 1.5g
Product Interface: M.2 NVME KEY-M
Support system: For MAC 10.5 or more
This adapter card and hard disk can replace the hard disk of the following type of notebook computer.
For Macbook Pro retina A1398 A1502 2013 version ( ME864 ME865 ME866 ME293 ME294 )
For Macbook Pro retina A1502 A1398 2014 version ( MG 72 MGX82 MGX92 MGXA2 MGXC2 )
For Macbook Pro retina A1502 A1398 2015 version ( MF839 MF840 MF841 MJLU2 MJLT2 MJLQ2 )
For Macbook Air A1465 A1466 2013-2014 version ( MD711 MD712 MD760 MD761 )
For Macbook Air A1465 A1466 2015 version ( MJVM2 MJVP2 MJVE2 MJVG2 MMGF2 MMGG2)
For Macbook Air A1466 2017 version (MQD32MQD42MQD52, Model A1466EMC3178)
Warm Tips:
1. The Adapter card into the computer's solid-state hard disk socket insertion is not in place, you can use a little force.
2. The hard disk is used incorrectly. Some buyers will install M2NGFF hard disk based on 5ATA protocol, so it will not work.
3. The installation disk of the system must be 10.13,6 version or higher.
4. The partition format of hard disk is not correct. It is not recognized when installing the system. It must be GPT (GUID) partition format. Be careful not to use any Windows partitioning software to partition the hard disk into PE system, otherwise it will bring numbness to the later installation work.
5. Do not install the system from the network, nor try to restore the system with your backup, because the old and versions of the for Apple system disk format is not the same.
6. For MacA1418, Integrative Machine, 2013 Edition EMC: 2638) and for IMAC A1418 2017 Edition (EMC: 3069).You can group Fusion Drive, that is to say, if your for IMAC can group Fusion Drive from 2013 to 2017, you can definitely use it, but before replacing the hard disk, you must remove Fusion Drive first.
7. 2013, 2015, 1016, 2017 version 27 inch for IMAC A1419 can be used. Keep in mind that the 27-inch and 21.5-inch IMAC A1419A1418 of 201020112012 version cannot be used! Also note that some for IMAC only supports Pcle x2 data transmission mode! This is the reason for the machine, not the reason for the transfer card.
Note:
Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
You'll receive:
1 x Adapter Card
Please check pictures for more details.
