USB Watchdog Timer Card Module Automatic Restart IP Electronic Watch dog 2 Timer Reboot Lan For Mining Gaming Computer PC

Type:Cable Adapter
Products Status:STOCK
Package:Yes
Model Number:AC3178
Fetures1:Type-A Watchdog For 32 / 64 Windows System
Fetures2:Use For Windows (XP~Win10, 32 bit & 64 bit)
Use:Computer
Product name:USB Watchdog
Function:Unattended Automatic Restart Blue Screen and Server
100% Support:Mining BTC Miner
Fetures3:watchdog usb
Fetures4:watch dog mining
Fetures5:watch dog usb
Fetures6:watchdog

USB Watchdog Timer Card Module Automatic Restart IP Electronic Watch dog 2 Timer Reboot Lan For Mining Gaming Computer PC
About Description:
Introduction:
This product is designed for
automatically
restarting
computers when blue screen crash occurs, especially well used in mining, servers, gamers, monitoring systems, etc.
Specifications
1. Applicable to a variety of computer motherboards. M
otherboards
just need
with a Type-A USB interface
.
2. Use for windows x86/x64 system. include winxp, win7, win8, win10, Linux ect.
3. Need to install the driver to compatible with a variety of motherboards.
4. With Desktop software, It can precise monitoring the program as your need. Better than no software version.
5. Reboot timeout time 10-1270 seconds.You can set  up it as your need.
6. est monitoring desktop software version: USBWatchDog V2.5.5
Function:
Double-Relay Version:
Specified Program Monitoring
Scheduled Restart
Website Monitoring
Video Card Monitoring
Run Log Query
Support Forced Power off Restart
Support Connect electricity Automatic Starting up
You'll receive:

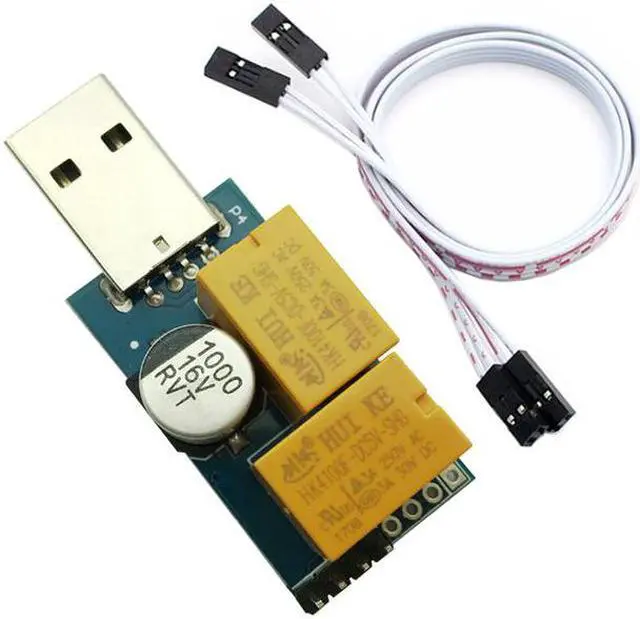

1 x Watchdog Control Board
1 x Reset Control Cable
1 x Monitor Software(
Tips:
when you make a order, pls leave your email address to us, we will send the Monitor Software & Driver files to your email. Thank you!
)
How to use?
1. Install the driver
Before install driver, please do not connect USB watchdog with your computer, double-click "Watchdog Driver. exe", click "Install", waiting for the installation is
complete.
2. Connect USB Watchdog to computer USB port.
Connect Watchdog to computer USB port. Do not connect cable with the motherboard reset pin temporarily, because default time-out time is 3 minutes, if drive-
installment has not finished within 3 minutes, the USB Watchdog may send a reboot signal to system. Wait for the computer to finish the automatic recognization of the
watchdog module.
3. Connect the cable with the motherboards reset pin
4. if you want to fix the Setting, you can open the config.inf to fix.
timeout=180;//Timeout reset time can only be 10 integers, range 10-1270 seconds
TimedRestartDays=3;//Auto restart days
HttpName=;//the link which you want to watch,it will not watch if you do not fill in,such as pool.ethfans.org
AppName=;//the app you want to watch
VideoCardMonitor=1;//Do you want to watch the video card?0 not watch,1 watch
5. start the Software.
start the USBWatchdog V2.5.5 software and configure as your need.
Advise you reboot the USBWatchdog software after you changed configure.
Note:
Some antivirus software may prevent the program running, please click "allow". Watchdog software is running, the control panel LED will flash once 1 time, then connect
USB Watchdog Cable with the motherboard Reset pin. It means the computer have crashed When the control panel LED is long time bright.
Please check pictures for more details.
