60cm PCI-E Express Riser Card 1X To 16X Extender With Led Light USB 3.0 SATA to 6Pin Power for BTC Bitcoin Mining Antminer Miner

Type:PCI-E Riser
Products Status:STOCK
Package:Yes
Model Number:AC3170
USB Cable Length:60cm
USB Interface:usb 3.0
With 2 Leds lights:blue light, green light
Power Supply:SATA/4Pin/6Pin Power Connector
Features 1:With 4x FP solid capacitors
Features 2:riser pci-e
Features 3:riser
Features 4:pci-e riser
Features 5:riser card

60cm PCI-E Express Riser Card 1X To 16X Extender With Led Light USB 3.0 SATA to 6Pin Power for BTC Bitcoin Mining Antminer Miner
About Description:
Features:
1. and .
2. No driver needed.
3. With side clip to fasten other card.
4. Dedicated for Bitcoin mining.
5. Gold plated PCI-E 1X slot for better connectivity and long life.
6. Integrated 6pin Molex power ports on the PCB, more powerful and flexible.
7. With 4x FP solid capacitors, making graphics power supply more stable and secure.
8. USB 3.0 cable is double shielded: Winding shielded net and Aluminum foil shield, ensure data transmission rapid and stable.
9. Compatible with 1x, 4x, 8x, 16x PCI-E slot of the motherboard, the Transmit signal is PCI-E 1X all the time.
Specification:
Riser Card Color: Blue
Size: 131 x 44 x 15 mm (approx.)
USB 3.0 Cable Length: 60cm (approx.)
With 2 Leds lights: blue light, green light
Note:
1. Please allow 0.2-0.3cm differs due to manual measurement.
2. For Dual-core graphics card or PCI-E 16X mainboard, Please use the old version Ribbon Riser card cable!
3. Problem: For some motherboard in the supermarket, The factory default is GEN3 so the the video card can't be recognized or an exclamation mark appears!Solution: In BIOS setting, you need change the PCIe 1X speed into GEN2 and Then the riser card will work normal.

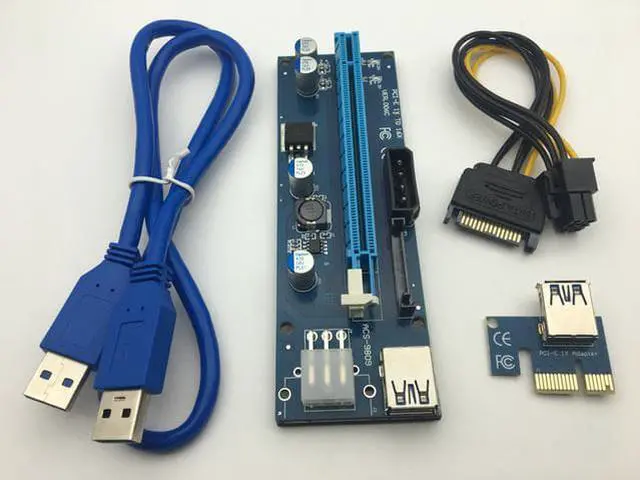

You'll receive:
1 x PCI-E 16X Slot Adapter
1 x PCI-E 1X Riser Board
1 x USB3.0 Cable
1 x SATA 15Pin-6Pin Power Cabl
e
Please check pictures for more details.
