Riser 008S PCI Express 1X to 16X Adapter Riser Card USB 3.0 Cable SATA to 6Pin Power Cable for Bitcoin Miner Antminer Mining

Type:PCI-E Riser
Products Status:STOCK
Package:Yes
Model Number:AC3368
Feature 1:riser
Feature 2:riser pci e
Feature 3:riser card pci-e
Feature 4:pci-e riser
Feature 5:pci e riser
Feature 6:riser card
Feature 7:usb 3.0 pci-e
Feature 8:compatible with graphics card
Feature 9:usb miner
Feature 10:for Bitcoin Miner Antminer Mining

Riser 008S PCI Express 1X to 16X Adapter Riser Card USB 3.0 Cable SATA to 6Pin Power Cable for Bitcoin Miner Antminer Mining
About Description:
Important Tips:
Now this item the capacitor color is
blue
, not red. But don't worry, other all is same, such as the side slip and the function is 100% same. If you care about the capacitor color, pls do not buy. Thanks!
Descriptions:
1. Special equipment wire to ensure data transmission without blocking, faster than before, to strengthen the stability of the voltage, protect equipment.
2. 1X, 2X, 4X, 8X, 16X compatibility (both 1-16X and 16-16X can be used), PCB PCIe switching lines are completely , safer, more efficient, and more practical.
3. It has solved the problems of the traditional line welding spot burning, the attenuation of transmission signal and the lack of wire length.
Features:
1. The power supply of the graphics card uses four FP solid state capacitors, and the burning machine chips are used to make the card work more stable.
2. Add LED indicator lights.
3. High Speed USB3.0 interface, faster and more stable.
4. The riser card can supply the power supply separately, so that the power supply of the developing card is independent from the main board, and the burden of the
main board is lighten when the card is connected.
5. The graphics card slot adopts the input connector to make the graphics card contact better.
6. PCI-E connector uses multi-layer shielded wire, the longest can be connected to 3m without attenuation signal.
7. The wire is soft, the wiring is convenient, the graphics card can be placed at will.
8. The slot is fastened with a fixed clip, so it is convenient to disassemble and fix the graphics card so that the card will not fall off from the slot.
Specifications:

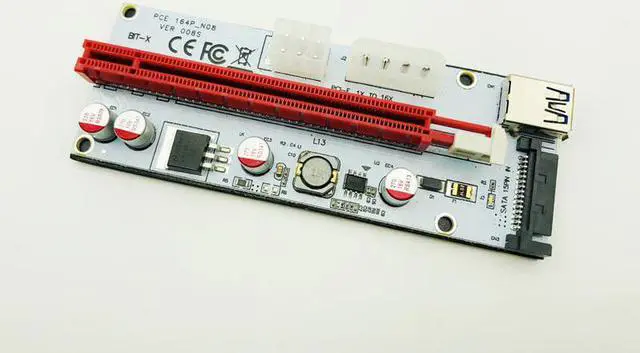

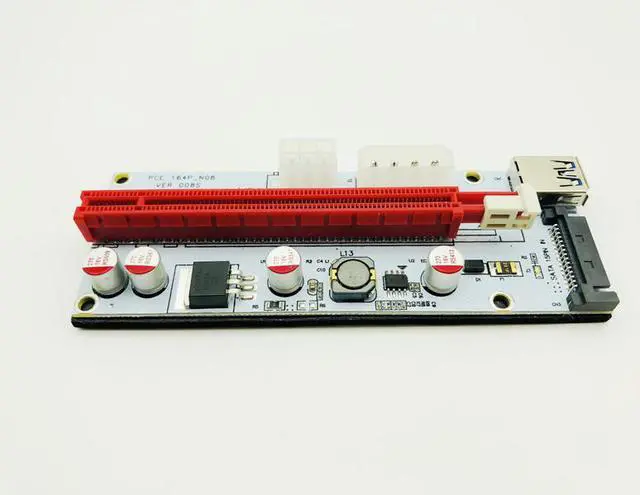

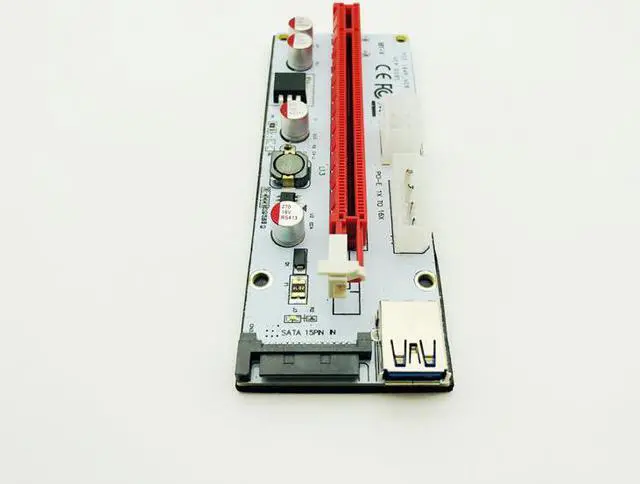

Model:  PCE164P_N08  008S
USB Cable length: approx. 60cm/23.62''
Board Size: 122 x 44 x 15 mm/4.8 x 1.73 x 0.59 in
Interface: PCI-E 1X  PCI-E 16X
USB3.0
Packing: PE Bag
Note:
Please allow 1-3cm differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
You'll receive:
1 x PCI-E 16X Slot Adapter
1 x PCI-E 1X Riser Board
1 x Red 60cm USB 3.0 Cable
1 x SATA 15Pin to 6Pin Power Cable
Please check pictures for more details.
