Riser Card VER008S 3 in 1 Molex Power 60CM LED PCI-E Riser Card 4pin 6pin Sata PCI-E 1x to 16x for Antminer Bitcoin Miner Mining

Type:PCI-E Riser
Products Status:STOCK
Package:Yes
Model Number:AC3141
Product model:VER008S
Board Size:133 x 45 x 15mm (approx.)
USB3.0 Cable Length:0.6M (approx. )
Applicable:For BTC LTC mining
Molex power connector:4Pin IDE / 6Pin IDE / 15Pin SATA
Connected:with graphics cards
Color:White
Slot:PCI-E 16x
Compatible with:PCI-E x1/x4/x8/x16

Riser Card VER008S 3 in 1 Molex Power 60CM LED PCI-E Riser Card 4pin 6pin Sata PCI-E 1x to 16x for Antminer Bitcoin Miner Mining
About Description:
Features:
1. and .
2. No driver needed.
3. With side clip to fasten other card.
4. Dedicated for Bitcoin mining.
5. Gold plated PCI-E 1X slot for better connectivity and long life.
6. Integrated 15Pin SATA, big 4pin and 6pin Molex power ports on the PCB, more powerful and flexible.
7. With 4x FP solid capacitors, making graphics power supply more stable and secure.
8. USB 3.0 cable is double shielded: Winding shielded net and Aluminum foil shield, ensure data transmission rapid and stable.
9. Compatible with 1x, 4x, 8x, 16x PCI-E slot of the motherboard, the Transmit signal is PCI-E 1X all the time.
Specification:
Riser Card Color: White
Board Size: 133 x 45 x 15mm (approx.)
Led lights: One LED Indicator
USB 3.0 Cable Length: 60cm (approx.)
Compatible use: with graphics card
Function: Dedicated for bitcoin mining
Note:
1. 4pin, 6pin and 15Pin SATA Molex power interface Integrated on the PCB, only one power input is needed. Please DO NOT try to plug 2 or 3 power interface simultaneously!
2. For Dual-core graphics card or PCI-E 16X mainboard, Please use the old version Ribbon Riser card cable!
3. Q&A: For some motherboard in the supermarket, The factory default is GEN3 so the the video card can't be recognized or an exclamation mark appears!Solution: In BIOS setting, you need change the PCIe 1X speed into GEN2 and Then the riser card will work normal.
You'll receive:
1 x PCI-E 16X Slot Adapter
1 x PCI-E 1X Riser Board
1 x USB3.0 Cable

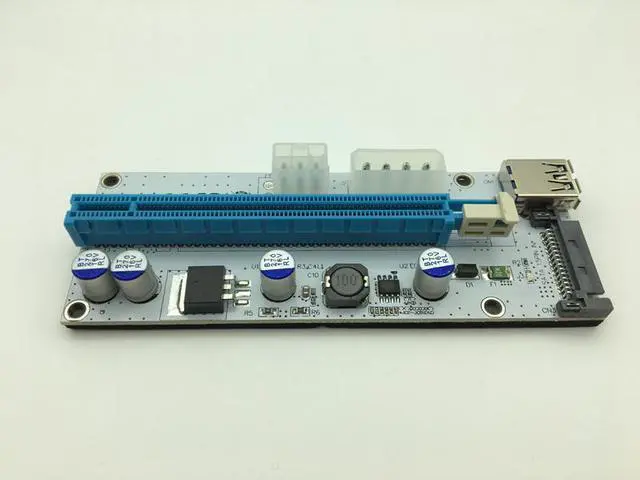

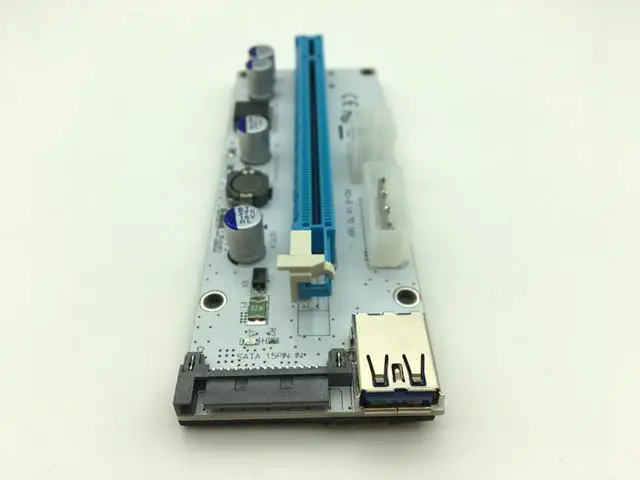

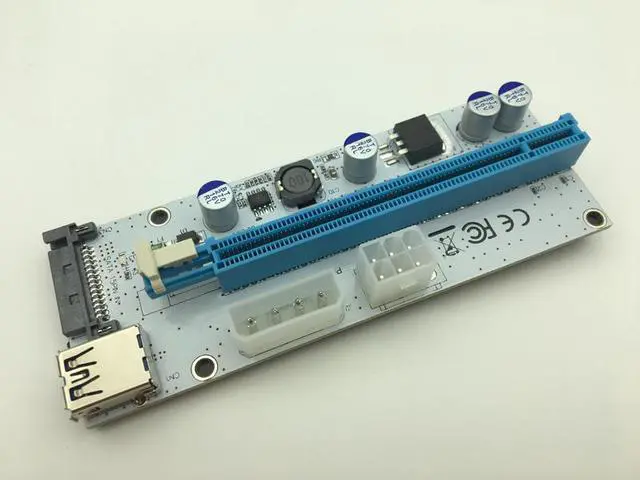

Please check pictures for more details.
