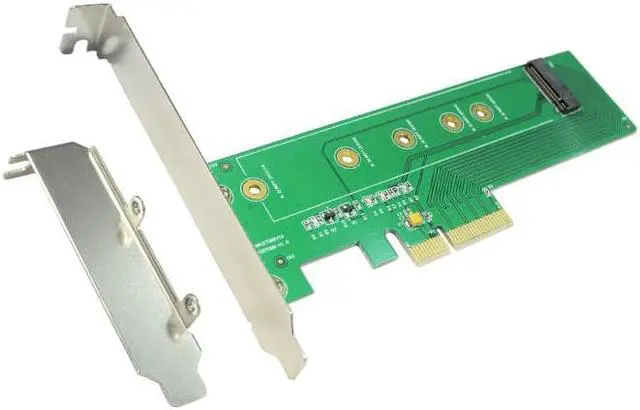

Add on Card PCIE TO M2 Adapter M.2 NGFF M key NVMe to PCI-e 3.0 x4 Adapter PCI Express Adapter for 22110 2280 2260 2242 2230 SSD

Interface Type:PCI Express
Package:Yes
Model Number:AC4097
Product name:PCIE TO M2 Adapter
Bus Type:PCI Express 3.0 x4
Support:Compatible with PCI-E X4, X8, X16 Slot
Support m.2:M-Key M.2 NVME
Color:Green
Support Size:Support 2230, 2242, 2260, 2280, 22110 Type M2 SSD
Feature 1:nvme ssd m2 pcie
Feature 2:nvme pcie
Feature 3:m.2 adapter
Feature 4:m2 pcie

Add on Card PCIE TO M2 Adapter M.2 NGFF M key NVMe to PCI-e 3.0 x4 Adapter PCI Express Adapter for 22110 2280 2260 2242 2230 SSD
About Description:
Features
Convert M.2 NGFF PCI-e based SSD to work in main board PCI-e x4/8/16 bus slot
PCI Express 3.0 x4 Lane Host adapter;
Supports PCI-e Gen3 and PCI-e Gen2 M.2 NGFF 110mm, 80mm, 60mm, 42mm, 30mm SSD
Movable M.2 NGFF stand-off and multiple plated-holes supports type 22110, 2280, 2260, 2242 and 2230 SSD
Supports PCI-e 1.0 ,PCI-e 2.0 and PCI-e 3.0 motherboard
Low Profile PCI-e Form Factor
Regular size PCI-e bracket on board and Low Profile bracket included
Transparent to the operating system and no driver required
Supports any OS like Windows, Mac and Linux
Supports industrial operating temperature range: -40 - 85 ºC
Note: M.2 SATA based SSD CANNOT work with this PCI-e based Adapter
System Requirements
Windows 2000/XP/2003/2008/Vista/7/8/8.1/10
Linux, MAC OS
You'll receive:
1 x PCIE TO M.2 Adapter
1 x User Manual
2 x Screws(M.2)

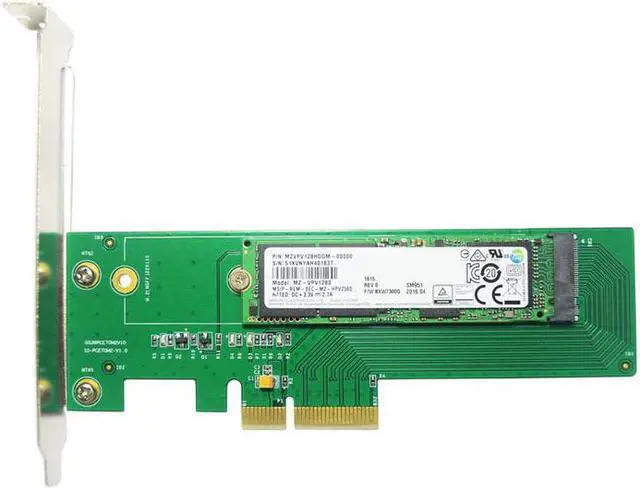

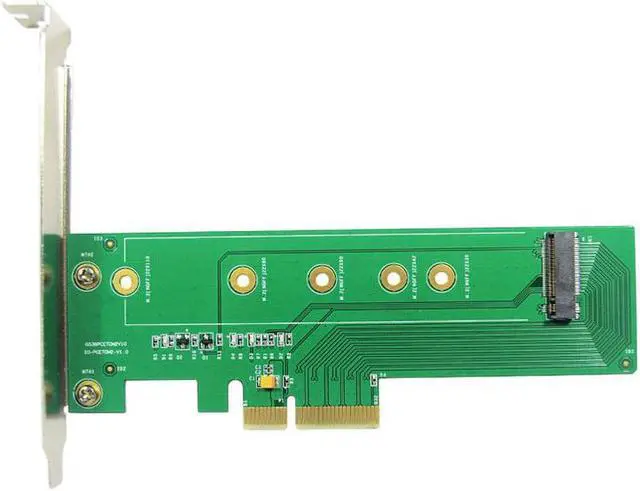

Please check pictures for more details.
