PCIE to M2 Adapter M2 SSD NVME M Key SATA-based B Key to PCI-e 3.0 x 4 Controller Converter Card Support 2280 2260 2242 2230 M.2

Interface Type:PCI Express
Package:Yes
Model Number:AC3848
Product name:m.2 ssd pcie adapter
Bus Type:PCI Express 3.0 x4
Support:compatible with PCI-E X4/X8/X16 Slot
Support m.2:M Key & B Key or B+M Key
Support M.2 Mode:M.2 NGFF SSD
Support Size:Support the 2230/2242/2260/2280 Type M.2 SSD
Feature 1:pci-e ssd adapter
Feature 2:pci-e ssd
Feature 3:m.2 pci-e ssd
Feature 4:m.2 ssd pcie adapter

PCIE to M2 Adapter M2 SSD NVME M Key SATA-based B Key to PCI-e 3.0 x 4 Controller Converter Card Support 2280 2260 2242 2230 M.2
About Description:

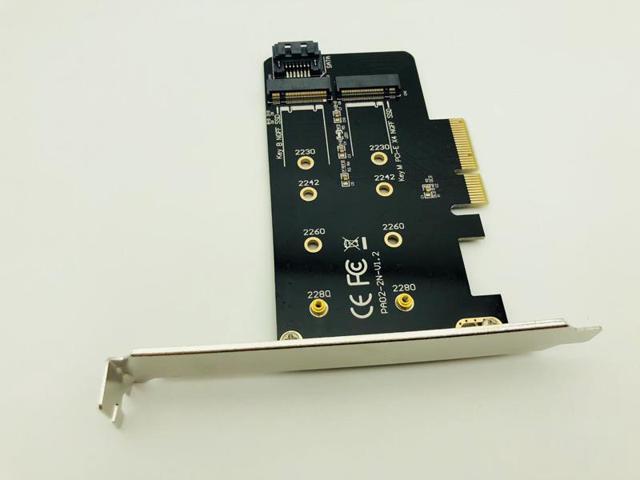

The item is 2 slots adapter Card: M key M.2 NGFF SSD to PCI-E X4 adapter and B key M.2 NGFF SSD to SATA adapter.
Features:
M key M.2 NGFF SSD to PCI-E X4 adapter or B key  M.2 NGFF SSD to SATA adapter.
The speed and other properties is not changed, only change the interface type and without any software or drivers.
Support size: 22*30 mm, 22*42 mm, 22*60 mm, 22*80 mm M.2 NGFF SSD.
Macth with two kinds of Metal sheet ( length: 8 cm, 12 cm )
Compatible with any operating system ( On the premise of operating system must be compatible with your hard disk ).
About M.2 NGFF SSD interface standard:
Socket 2(B key 2 LANE):there are SATA(such as THNSNH128G8NT/ THNSNH128GDNT/MZNTD256HAGM models of SSD) and PCI-E 2X(such as PX-AG128M6E/PX-AG256M6E/PX-AG512M6E/SD6PP4M models of SSD) two different transfer mode.
Socket 3(M key,4 LANE):PCI-E 4X(such as MZHPU128HCGM  MZHPU256HCGL and MZHPU512HCGL models of SSD) transfer mode.
You'll receive:
1 x 2 Slots Adapter Card for M.2 NGFF SSD
1 x Low Profile Bracket
1 x Screwdriver
1 x 7Pin SATA Cable
Please check pictures for more details.
