1X TO 16X M2 NGFF PCI-E PCI Express Extender Riser Card Adapter 60CM USB 3.0 Cable 6Pin Power Cable For Bitcoin Miner Mining

Type:PCI-E Riser
Products Status:STOCK
Package:Yes
Model Number:AC3101
Product name:M.2 to PCI Express 16X Riser Card
Interface type:m.2 ngff
Compatible with:1x,4x,8x,16x PCI-E slot of the motherboard
Featue 1:With 4x FP solid capacitors
Power Supply:15Pin SATA to 6Pin Power Cable
Use:PCIE Riser Card For Bitcoin Miner
Data transmission:NGFF M.2 M Key to USB 3.0
USB3.0 Cable Length:0.6M / 0.6 Meter
Function:Dedicated for bitcoin mining

1X TO 16X M2 NGFF PCI-E PCI Express Extender Riser Card Adapter 60CM USB 3.0 Cable 6Pin Power Cable For Bitcoin Miner Mining
About Description:
Features
1. Model: VER006C
2. Graphics power supply using 4 330UF solid state capacitors, more secure, more efficient and more practical.
3. Transfer card 6PIN interface 12V to strengthen the DC-DC power supply, so that the graphics card from the motherboard independent of the board, which in the multi-graphics card to reduce the burden on the motherboard.
4. The use of the slot card connector, graphics card and connector contact better.
5. PCI-E connector uses a multi-layer shielded wire, the longest can be connected to the 3-M without signal attenuation.
6. USB cable is soft and stable, easy to track, graphics cards can be placed at will.
7. Slot equipped with fixed buckle, more convenient to remove the graphics card and fixed graphics card, graphics card will not fall off from the slot.
8. PCI-E connector with multi-layer shielded wire, the longest can connect 3 Meters the signal will not attenuate, to ensure signal integrity.
Specifications:
1. Product Name: M2 NGFF TO 16X SATA 15PIN
2. Power Connector: 6 pin power cable
3. The board size: 12.7cmx4.2cm
4. USB Cable Length: 60cm
5. Compatible Use: For graphics cards
6. Product Interface: PCI-E 1X PCI-E 16X
7. Function: Dedicated for bitcoin mining
8. Support system: compatible with all WINDOWS system, LINUX MAC OS
Notes:
1. This extension cable is for the motherboard M2 NGFF KEY-M slot (1X, 2X, 4X, 8X, 16X). Please plug in the floppy drive power cord when using it. The PCI-E extension cable must be broken when the computer and then plug the wire, the notes must be read when use!
2. The wire is customized, please do not just plug in at will!
3. When insert the line the direction must be clear, do not plug or insert offset, to prevent burn equipment; plug the device first and then plug the line, to avoid excessive force socket socket interrupted.
4. Dual-core graphics recommended using the old cable, the motherboard is 16X also recommended the old cable!

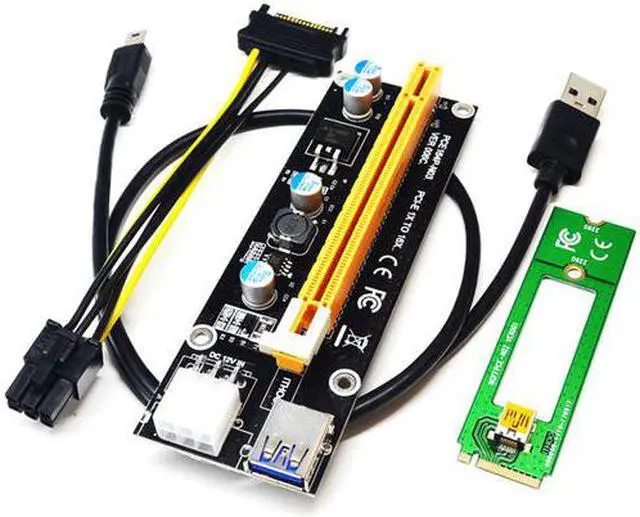

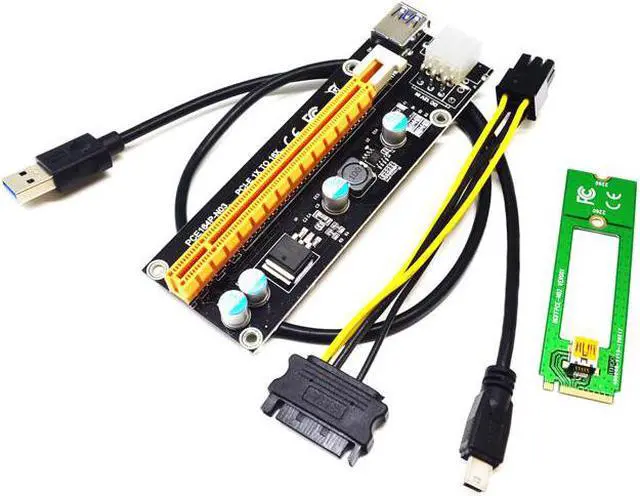

You'll receive:
1 x PCI-E 16X Slot Adapter
1 x M.2 NGFF Riser Borad
1 x 60CM USB3.0 Cable
1 x 15Pin-6Pin Power Cable
Please check pictures for more details.
