Riser PCIE SFF-8643 U.2 Adapter Expansion Card SFF-8643 U2 PCI E Converter SFF 8643 PCI-E 4.0 X4 Riser Card for U2 PCIe NVMe SSD

Certification:NONE
Origin:CN(Origin)
Package:Yes
Model Number:AC4861
Type:Add On Cards
Interface Type:PCI Express
Feature1:riser
Feature2:riser card
Feature3:pci express to sff8643
Feature4:nvme adapter

Riser PCIE SFF-8643 U.2 Adapter Expansion Card SFF-8643 U2 PCI E Converter SFF 8643 PCI-E 4.0 X4 Riser Card for U2 PCIe NVMe SSD
About Description:
Item Description
PCI Express 4.0 x4 Host Adapter Card with SFF-8643 Mini-SAS HD 36Pin Connector for U.2 (SFF-8639) PCIe-NVMe SSD - Support Intel 750 2.5-inch U.2 SFF SSD
Allow you to install a PCIe-NVMe U.2 2.5-inch SSD drive (such as Intel 750 U.2 SSD) through a Low Profile PCIe 4.0 x4 card to your PC System. It's the best & easy solution to install an Extremely High Performance Enterprise-Class PCIe-NVMe U.2 SSD in your Desktop for Enthusiast Gaming and Workstation Markets!

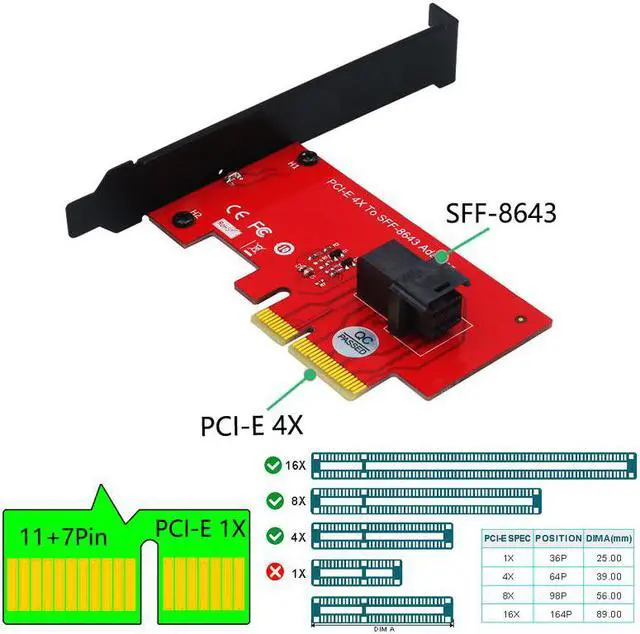

Connector:
1x mini-SAS HD (SFF-8643, 36 Pin) Female
Software:
No driver installation is required.
Windows 10/8, Windows Server 2012 R2, Linux series, Fedora, SUSE, Red Hat native drivers support both PCIe-NVMe
Mac Pro 2009, 2010 and 2012 models with High Sierra OS installed support PCIe-NVMe SSD
System Requirement:
An empty PCIe 4.0 or PCIe 3.0 x4, x8, or x16 slot.
Convert U.2 2.5-inch PCIe-NVMe SSD to work in main board PCIe x4 bus slot
PCI Express 4.0 x4 Lane Host adapter
Supports PCIe 4.0 and PCIe 3.0 motherboards
Support PCIe L1 Power Management Substates with CLKREQ.
Low Profile PCIe Form Factor
Low Profile PCIe bracket on board and Regular size bracket included
Transparent to the operating system and no driver required
You'll receive:
1 x SFF-8643 to PCI-E 4X Adapter(NOT Included Retail Package)
1 x Screwdriver
3 x M3 Screw
1 x Low Profile Bracket

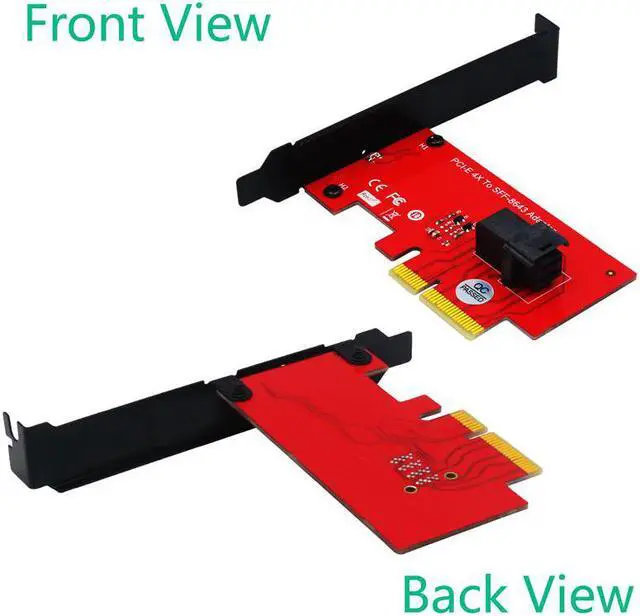

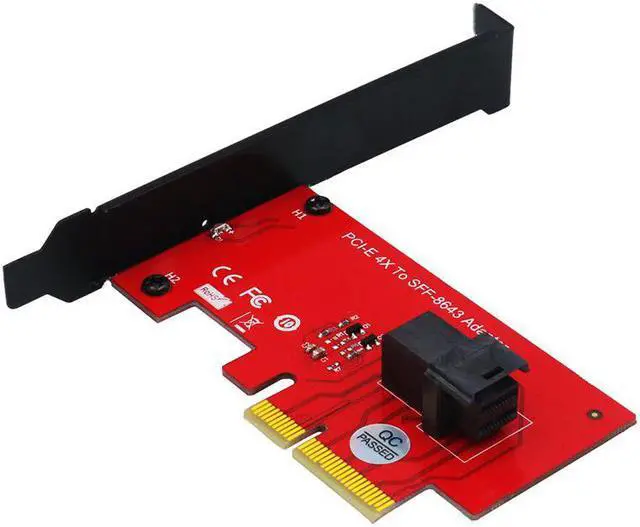

Please check pictures for more details.
