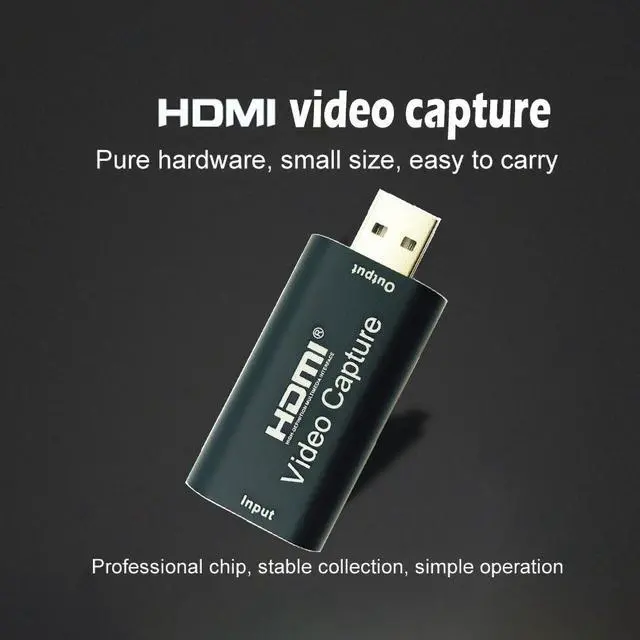

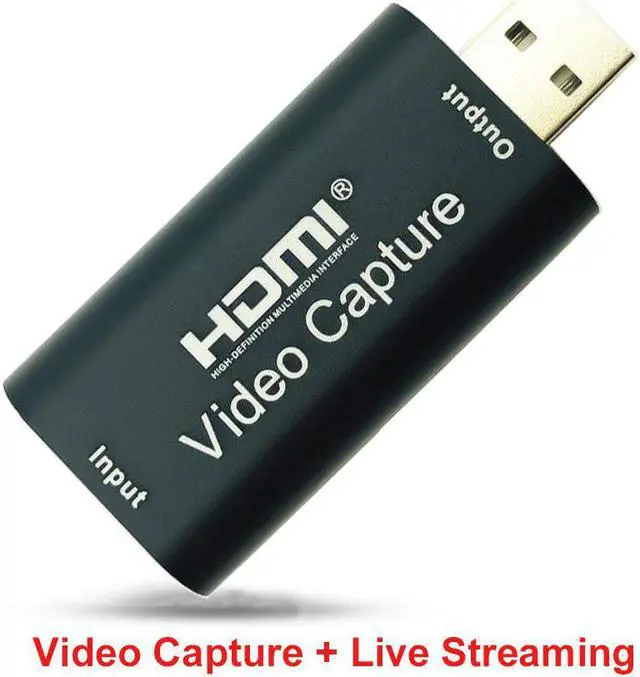

Mini HD 1080P HDMI To USB 2.0 Video Capture Card Game Recording Grabber Box for PC Computer Youtube OBS Live Streaming Broadcast

Model Number:AC4753
Package:Yes
Interface Type:USB
Product name:USB 2.0 Mini Video Capture Card
Type:Video & TV Tuner Cards
Feature 1:video card
Feature 2:video cards
Feature 3:capture card
Feature 4:hdmi capture
Feature 5:streaming
Feature 6:VHS
Feature 7:hdmi video capture
Feature 8:video capture
Feature 9:board capture
Feature 10:video capture card
MAX Input Resolution:4K
MAX Output Resolution:1080P
Support System:Windows 7/8/8.1/10, Mac OS
Color:Black
Function 1:video capture usb
Function 2:hdmi capture usb
Function 3:hdmi to usb capture
Function 4:hdmi to usb video capture
Function 5:capture hdmi
Function 6:hdmi capture card
Function 7:usb video capture card hdmi
Function 8:video capture box
Function 9:game capture
Function 10:usb video capture hdmi
Function 11:capture hdmi usb
Function 12:game capture card
Function 13:hdmi video capture card
Function 14:usb video grabber
Function 15:video capture device
Function 16:capture card hdmi
Function 17:hdmi usb capture
Function 18:video capture hdmi
Function 19:capture card live streaming
Function 20:capture card 4k
Function 21:usb video capture
Function 22:usb capture card
Function 23:video capture 4k
Function 24:4k capture card
Function 25:video capture hdmi 1080p
Function 26:usb hdmi capture
Function 27:hd capture
Function 28:video grabber
Function 29:hdmi grabber
Function 30:grabber hdmi

Mini HD 1080P HDMI To USB 2.0 Video Capture Card Game Recording Grabber Box for PC Computer Youtube OBS Live Streaming Broadcast
We are 100% Factory HDMI Video Capture Card - The Best Price for YOU!!
Description:
This USB 2.0 acquisition card can capture both HDMI video and HDMI audio at the same time.
It can transmit audio and video signals to computers and smartphones for preview and storage.
Suitable for HD acquisition, teaching recording, medical image, etc.
Feature:
1. Support the maximum input resolution of 3840x2160@ 30Hz;
2. Support the maximum output resolution of 1920x1080@ 30Hz;
3. Support 8 / 10 / 12 bit color depth;
4. When standard AWG26 cable is used, the input transmission distance is up to 15m (resolution of 1080P and below);
5. Support most acquisition software, such as for VLC, OBS, Amcap, etc;
6. Support for windows, Android and Mac OS;
7. Conform to USB video UVC specification;
8. Conform to USB audio UAC specification;
9. Without external power supply, small and portable.
Specification:
HDMI resolution: up to 3840x2160 @ 30Hz
Video input format: 8 / 10 / 12 bit color depth
Video output mode: YUV, JPEG
Video output resolution: maximum output resolution 1920x1080 @ 30Hz
Support audio format: L-PCM
Input cable length: 15m, AWG26 HDMI standard cable
Maximum working current: 0.4A/5VDC
Operating temperature range: (- 10 to + 55 )
Size: 64x28x13mm/2.52x1.1x0.51in
Connection operation:
1: Connect the UHD signal source and the HDMI input port of the USB acquisition card with one HDMI line
2: Plug the USB male of the USB acquisition card into the USB port of the computer
3: Collection operation steps (OBS): open the software - add a source - select "video capture device" - set the screen size - select "studio mode" (double window) - click "start recording"
Computer hardware configuration requirement:
CPU: PC i5-3400 or above; NB i7-3537u 2.0GHz or above
Display card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above
Storage: 4G RAM
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-3mm measuring deviation due to manual measurement.
Packge Included:
1 x Video Capture Card
1 x User Manual
