SATA Card PCI Express to 2 Ports SATA 3.0 Card 6Gbps PCI-E SATA PCIE SSD Adapter Low Bracket Computer Components IPFS HDD Mining

Certification:NONE
Origin:CN(Origin)
Package:Yes
Model Number:AC3780
Type:Add On Cards
Interface Type:PCI Express
Feature 1:sata card
Feature 2:sata card pci-e
Feature 3:pci-e sata
Feature 4:pci express sata
Feature 5:sata 6gb
Feature 6:2 port sata card
Feature 7:sata expansion card adapter
Feature 8:pcie sata
Feature 9:sata 3
Feature 10:sata pci express

SATA Card PCI Express to 2 Ports SATA 3.0 Card 6Gbps PCI-E SATA PCIE SSD Adapter Low Bracket Computer Components IPFS HDD Mining
About Description:
Product Feature:
Compliant with PCI-Experss specification V2.0 and backward compatible with PCI-Express 1.x
Comliant with Serial ATA Specification 3.0,Compliant with PCIe 2.0 specifications.
Supports communication speeds of 6.0Gbps,3.0Gbps and 1.5Gbps
Supports programmable transmitter signal levels
Supports Gen 1i,Gen 2i,Gen 2m, Gen 2x and Gen 3i
Applicable Slot: PCI-E (1x, 4x, 8x, 16x)
Supports Two SATA Ports
Supports AHCI Boot, IDE Boot, No Boot(Data Disk)
Supports Native Command Queuing(NCQ)
Supports Port Multiplier FIS based switching or command based switching
Supports Partial and Slumber Power Management states
Supports Hot Plug and Hot Swap
Compatible with SATA 6G,3G and 1.5G Hard Drives
Large chassis or small chassis can be used.
Bus Interface:PCI-Express x1
Connectors: 2 Port SATA 3.0
Bracket: with One Low Profile Bracket
Chipset: ASMedia1061
Speed: Single Port Speed Up to 400MB
Function: for SSD HDD IPFS Mining

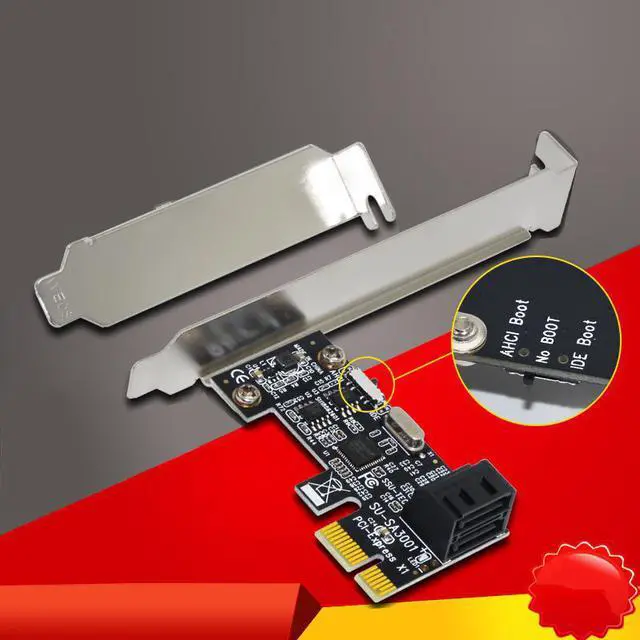

Feature: with switch change the AHCI, IDE, No Boot(as data disk)
System Support:
PCI Express-enabled system with on avaliable PCI Express slot
Windows10 8/7(32/64bit)/Vista(32/64bit)/XP/Server 2003/2008
You'll receive:
1 x PCI Express to 2-port SATA 3.0 Expansion Card
1 x Low Profile Bracket
Please check pictures for more details.
