Video Card Loop out Video Capture Device HDMI Capture Card 4K 1080P USB 2.0 Game Record Live Streaming Box for PS4 DVD HD Camera

Type:Cable Adapter
Package:Yes
Products Status:STOCK
Model Number:AC4691
Product name:USB 2.0 Mini Video Capture Card
Feature 1:video card
Feature 2:video cards
Feature 3:capture card
Feature 4:hdmi capture
Feature 5:streaming
Feature 6:VHS
Feature 7:hdmi video capture
Feature 8:video capture
Feature 9:board capture
Feature 10:video capture card
MAX Input Resolution:4K
MAX Output Resolution:1080P
Support System:Windows 7/8/8.1/10, Mac OS
Color:Black
Function 1:video capture usb
Function 2:hdmi capture usb
Function 3:hdmi to usb capture
Function 4:hdmi to usb video capture
Function 5:capture hdmi
Function 6:hdmi capture card
Function 7:usb video capture card hdmi
Function 8:video capture box
Function 9:game capture
Function 10:usb video capture hdmi
Function 11:capture hdmi usb
Function 12:game capture card
Function 13:hdmi video capture card
Function 14:video grabber usb

Video Card Loop out Video Capture Device HDMI Capture Card 4K 1080P USB 2.0 Game Record Live Streaming Box for PS4 DVD HD Camera
About Description:
Features:
* Support HDMI loop out;
* Support input max resolution 4K;
* Support output max resolution 1080P;
* Support AWG26 HDMI standard cable: input up to 15 meters,
(1080P and below resolution);
* Support most acquisition software, such as VLCOBS Amcap, etc;
* Support WindowsAndroid and MacOS;
* Conform to USB Video and UVC standard;
* Conform to USB Audio UAC standard;
* Compact and portable.
Specifications:
HDMI resolution : Max input can be 4K ;
Support video format :8/10/12bit Deep color ;
Video output format : YUVJPEG ;
Video output resolution : Max output can be 1080P ;
Support audio format: L-PCM;
Input cable distance :15m,AWG26 HDMI standard cable ;
Max working current: 0.7A/5VDC;
Operating Temperature range: (-10 to +55) ;
Application:
HDMI Video Capture With Loop out, t
he video capture can capture both HDMI video and HDMI audio, sending audio and video signals to computers and smart phones for preview and storage. Suitable for high definition acquisition, teaching recording, medical imaging, etc.
Note:
Computer hardware configuration requirements :
CPU: PC  i5-3400 or above NB  i7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA GT630 or aboveNC  NVIDIA  GT735M or above
Run memory: 4G RAM

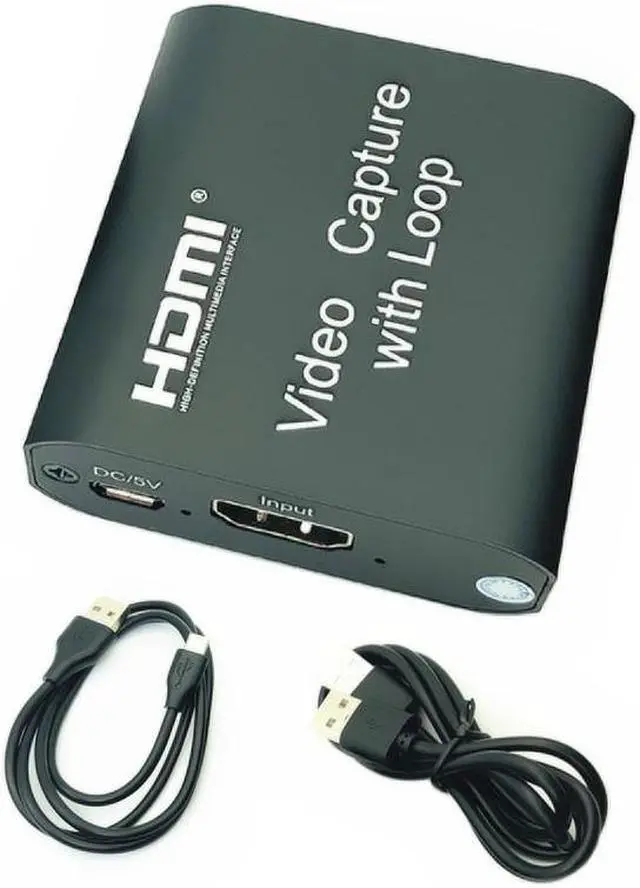

You'll receive:
1 x HDMI Video Capture Card
1 x User Manual
1 x USB Cable Male to Male
1 x Micro USB Cable
Please check pictures for more details.

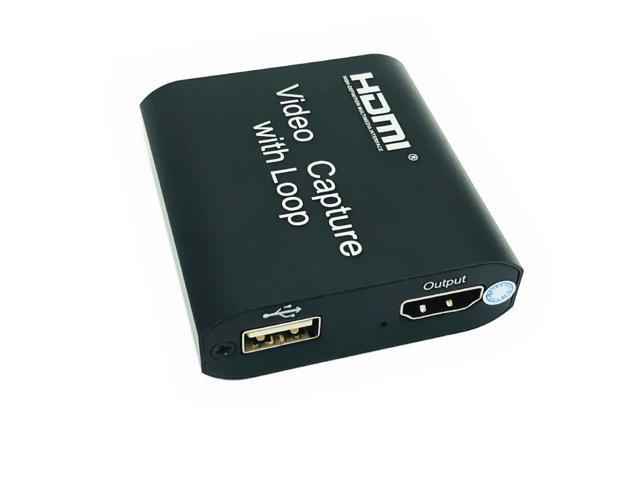

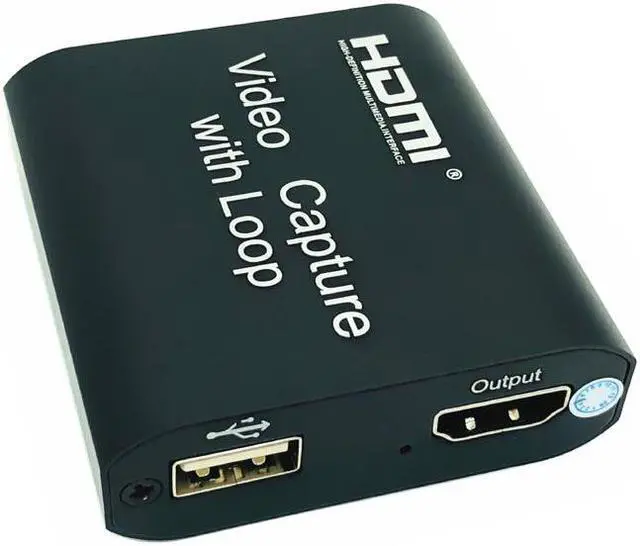

Connection and Operation:
1. Connect the UHD signal source to the HDMI input of the video capture with one HDMI cable. 2. Connect the display device to the HDMI output of the video capture with one HDMI cable. 3. Connect PC USB port to the USB output of the video capture with one USB cable. 4: Operation steps for USB video capture(OBS): Open the softwareChoose sources of Video capture DeviceSet the size of imageChoose Studio Mode(double window) Choose Start Recording.
Operation Example as below:
1. Add sources, choose Video Capture Device
2. Set the size of the image.
3. Choose Studio Mode(double window).
4. Click Start Recording
