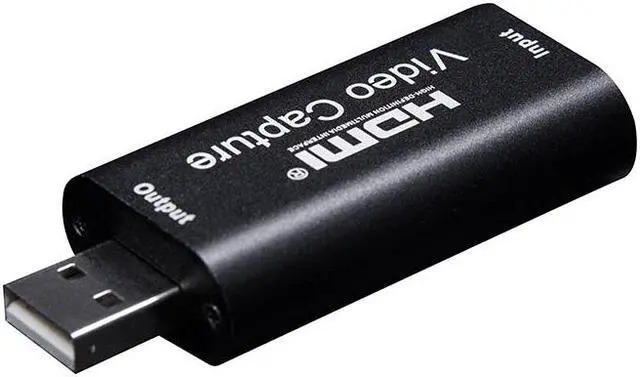

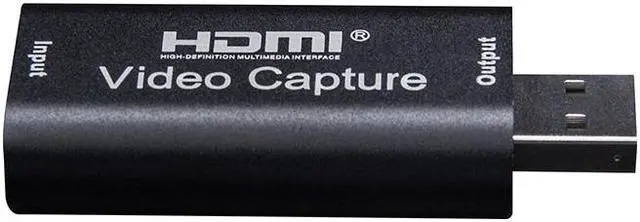

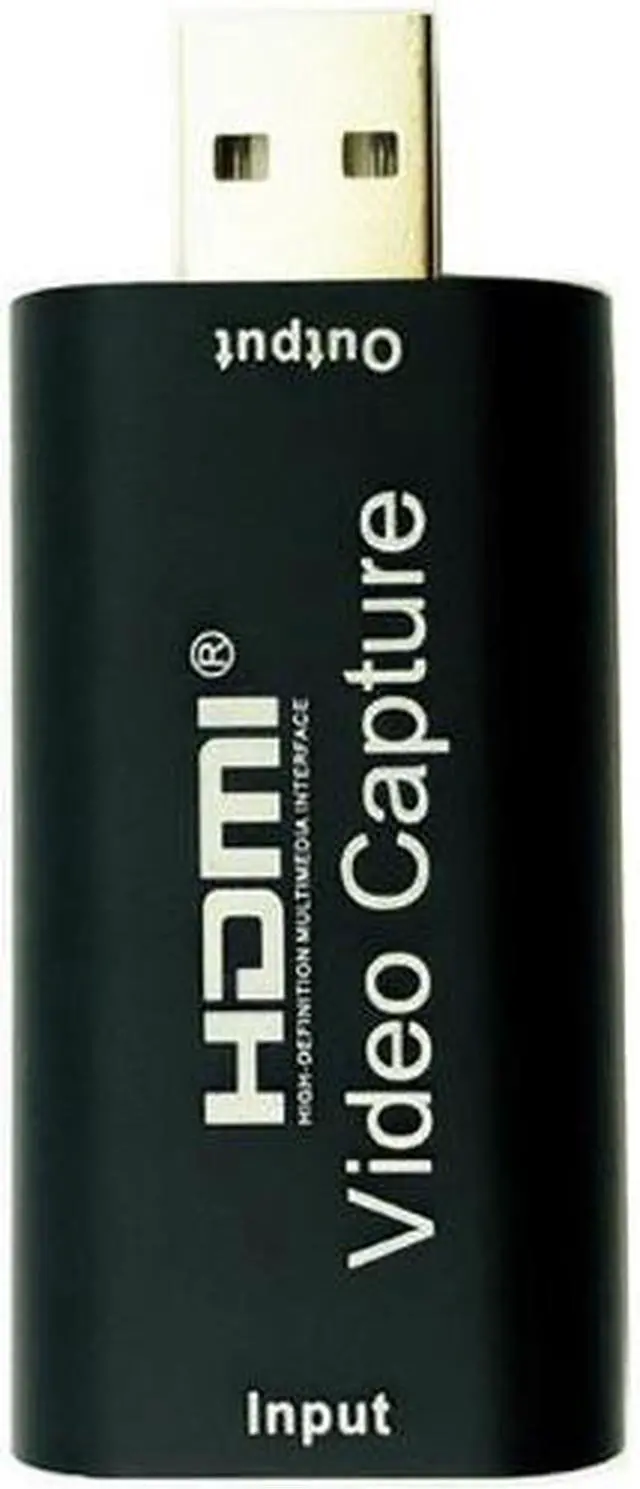

HDMI Video Capture Card Video HDMI Card 4K 30Hz 1080P USB 2.0 HDMI to USB Video Capture Device Dongle for HD Game Live Streaming

Model Number:AC4676-2
Package:Yes
Interface Type:USB
Product name:USB 2.0 Mini Video Capture Card
Type:Video & TV Tuner Cards
Feature 1:video card
Feature 2:video cards
Feature 3:capture card
Feature 4:hdmi capture
Feature 5:streaming
Feature 6:VHS
Feature 7:hdmi video capture
Feature 8:video capture
Feature 9:board capture
Feature 10:video capture card
MAX Input Resolution:4K
MAX Output Resolution:1080P
Support System:Windows 7/8/8.1/10, Mac OS
Color:Black

HDMI Video Capture Card Video HDMI Card 4K 30Hz 1080P USB 2.0 HDMI to USB Video Capture Device Dongle for HD Game Live Streaming
HDMI Video Capture Note:Computer hardware configuration requirements CPU: PC i5-3400 or above ,NB i7-3537U 2.0GHZ or above Graphics card: PC NVIDIA GT630 or above,NC NVIDIA GT735M or above Run memory: 4G RAM
The video capture can capture both HDMI video and HDMI audio, sending audio and video signals to computers and smart phones for preview and storage. Suitable for high definition acquisition, teaching recording, medical imaging, etc.
Features & Specifications
Features:
The video capture can capture both HDMI video and HDMI audio, sending audio and
video signals to computers and smart phones for preview and storage. Suitable for high definition
acquisition, teaching recording, medical imaging, etc.
Support input max resolution
3840×2160@30Hz
Support output max resolution
1920×1080@30Hz
Support 8/10/12bit deep color
Support AWG26 HDMI standard cable: input up to 15 meters
(1080P and below resolution)
Support most acquisition software, such as VLC,OBS ,Amcap, etc
Support Windows,Android ,Etc
Conform to USB Video and UVC standard
Conform to USB Audio UAC standard
Without external power supply, compact and portable.
Specifications:
HDMI resolution .Max input can be
3840×2160@30Hz
Support video format .8/10/12bit Deep color
Video output format . YUV,JPEG
Video output resolution . Max output can be
1920×1080@30Hz
Support audio format.L-PCM
Input cable distance . 15m,AWG26 HDMI standard cable
Max working current .0.4A/5VDC
Operating Temperature range .(-10 to +55)
Dimension (L x W x H) .64x28x13 (mm)
Net Weight .21.4g
Note
Computer hardware configuration requirements CPU: PC i5-3400 or above ,NB i7-3537U 2.0GHZ or above Graphics card: PC NVIDIA GT630 or above,NC NVIDIA GT735M or above Run memory: 4G RAM
