HDMI to VGA HDMI Adapter HDMI Male To VGA Famale Converter Adapter 1080P Digital to Analog Video Audio For PC Laptop Tablet

Package:Yes
Model Number:AC4695
Interface Type:USB

HDMI to VGA HDMI Adapter HDMI Male To VGA Famale Converter Adapter 1080P Digital to Analog Video Audio For PC Laptop Tablet
About Description:
1. Introduction
This HDMI to VGA + audio + HDMI converter is an audio and video converter that can convert high-definition video HDMI digital signal to VGA analog signal, audio signal and HDMI signal. Adapt to most devices with standard HDMI output interface. For example, PS3, XBOX, high-definition set-top boxes, Blu-ray DVD, high-definition players, computer notebooks, etc.
2. Features
Converts HDMI digital signal to VGA analog signal, 3.5mm audio signal and with HDMI output.
Supports VGA and HDMI signals output simultaneously.
Compatible with HDMI1.3, HDCP1.2
No need to install drivers, portable, flexible, plug and play.
Mini size, easy to carry!
3. Specification
Input port: HDMI*1

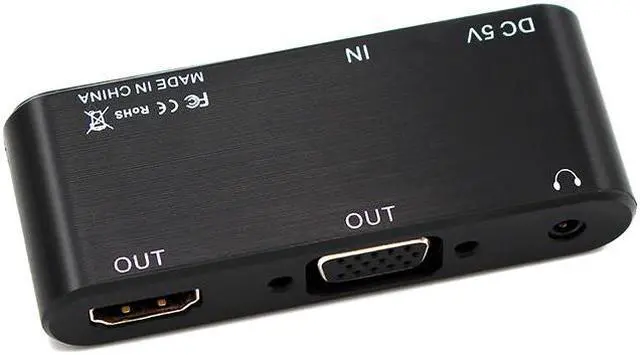

Output ports: VGA*1, 3.5mm audio*1, HDMI*1
HDMI input resolution: 480P, 720P,
1080P@60Hz
Output resolution up to 1920*1080
Dimensions(mm): 82*33*15
Net Weight(g): 26
Power: DC5V
4. How to Use (Please gently insert and pull out the cable)
Before installation, please make sure that all connected devices are powered off
Connect the signal source to the input interface of the converter with an HDMI cable
Connect the output of the converter to the monitor with a VGA cable
Connect the power cable to the converter, and then connect the external power supply.
Turn on the signal source and the monitor, select the monitor input channel as VGA or HDMI channel.
No need to adjust the image, this converter will automatically adjust.
You'll receive:
1 x Main Unit(HDMI to VGA+3.5mm audio+HDMI Converter)
1 x USB Power Cable
1 x User Manual
Please check pictures for more details.
