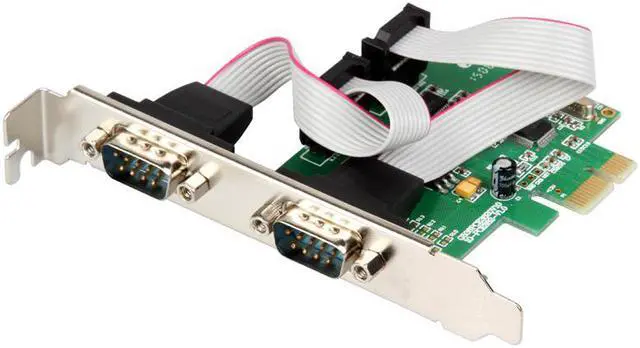

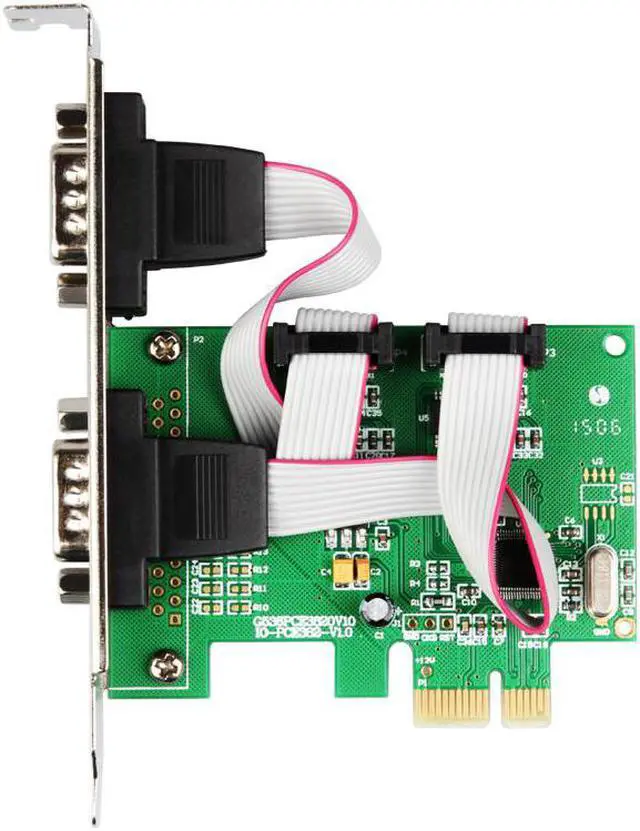

PCI Express 2 Ports Serial RS232 COM DB9 Controller Card PCI-e 1.0 x 1 WCH 382 Chip with Low Profile Bracket

Interface Type:PCI Express
Package:Yes
Model Number:AC4109
Feature 1:usb rs232 adapter
Feature 2:usb to rs232
Feature 3:rs 232
Feature 4:rs232 cable
Feature 5:rs232 2 port rs232
Port:2 port rs232
Chipset:WCH 382
Interface:PCI-e
Color:Green
is_customized:Yes

PCI Express 2 Ports Serial RS232 COM DB9 Controller Card PCI-e 1.0 x 1 WCH 382 Chip with Low Profile Bracket
About Description:
DB9 rs232 2 Port Serial PCI-e x1 riser card
Specification
Fully Compliant with PCI-e Base Specification, Revision 1.0a
PCI-e Multi Function Peripheral Controller with x1 Lane Interface
Support for D1, D2, D3hot and D3cold
Utilizes 100-Mhz Differential PCI-e Common Reference Clock
Supports PCI-e Power Management
Serial Port:
2 16c450/550/Extended 550 Compatible UARTs
Supports RS232 Modes
Bi-directional Speeds from 50bps to 16Mbps/Port
Full Serial Modem Control
Supports Hardware, Software Flow Control
5, 6, 7, 8 and 9-bit Serial Format Support
Support MODEM Modem Signals CTS, DSR, RI, DCD, the DTR, RTS, Convert RS232 Level
Even, Odd, None, Space & Mark Parity Supported
Custom BAUD Rates Supported with External Clock or by Programming Internal PLL
On Chip 256 Byte Depth FIFOs in Transmit, Receive Path of Each Serial Port
Support Remote Wakeup and Power management Features
Serial Port Transceiver Shutdown Support
Support Slow IrDA on all Serial Ports
Software Requirement
Windows 8
Windows 7
Vista
Windows XP
Windows ME
Windows 98SE
Server 2003
Server 2000 (32bit only)
Linux Kernel 2.4 & 2.6
Mac 10.4 & Above

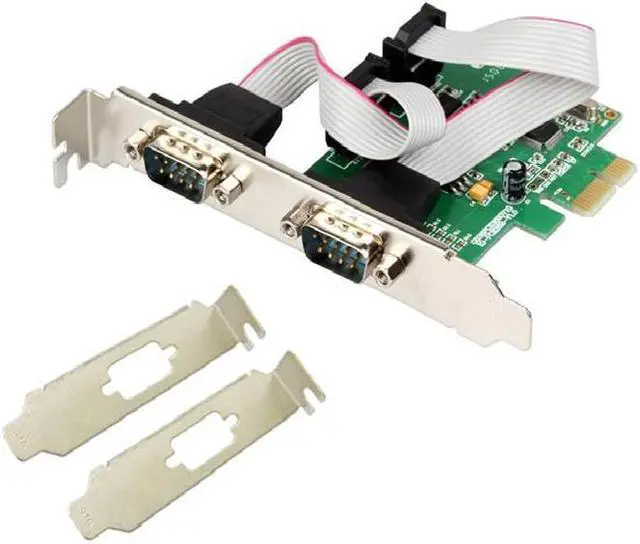

You'll receive:
1 x 2-port Serial PCI-Express Card
2 x Low Profile Bracket
1 x CD Driver
1 x User Manual
Please check pictures for more details.
