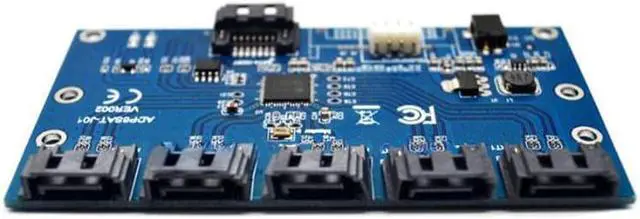

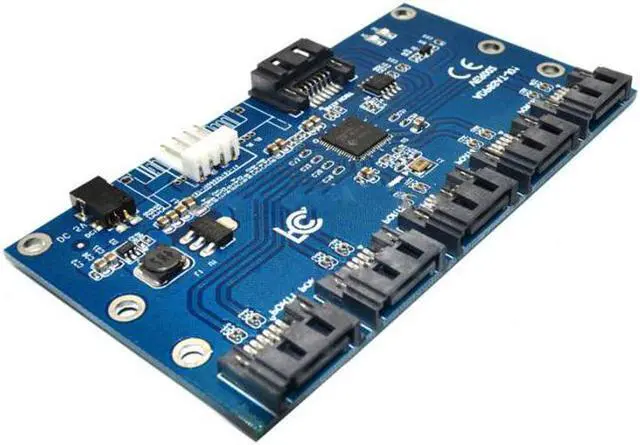

SATA Expansion Card 1 to 5 Port SATA3.0 Controller Card Motherboard SATA Port Multiplier Riser Card HUB Adapter for HDD Computer

Origin:CN(Origin)
Type:SATA Cables
Certification:NONE
Package:Yes
Products Status:STOCK
Model Number:AC3340
Feature 1:1 to 5 sata adapter
Feature 2:sata 3.0 interface
Feature 3:sata port multiplier
Feature 4:sata hub
Feature 5:riser
Feature 6:riser card
Feature 7:sata card
Feature 8:sata converter
Feature 9:sata 3.0 controller
Feature 10:4pin connector

SATA Expansion Card 1 to 5 Port SATA3.0 Controller Card Motherboard SATA Port Multiplier Riser Card HUB Adapter for HDD Computer
About Description:
Feature:
· Supports 6-port 3.0Gbps SATA II interface
· Output swing control and automatic impedance calibration for SATA II PHY
· Supports asynchronous signal recovery
· Supports spread spectrum clocking
· Supports partial / slumber power saving mode
· Automatically speed negotiation
· Supports BIST and loopback mode
· Supports staggered spin-up (Optional)
· Supports Hot-Plug
· Supports asynchronous notification
· Supports ATAPI drives
· Supports command-based and FIS-based switching
· Supports PM aware and non-PM aware host
· Supports cascaded mode
· Supports executing host loaded firmware code.
Precautions:
1. This expansion card must support the PM (SATA PORT MULTIPLIER) function on the motherboard or the expansion card to recognize 5 hard disks. The general motherboard SATA does not support this function. If not, only one card can be recognized.
2. Must use the small 4PIN power plug, the specific wiring:
Small 4PIN power plug, the input SATA cable is inserted into the motherboard or expansion card.

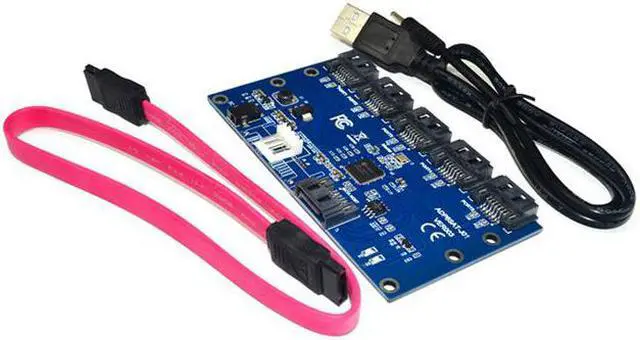

You'll receive:
1 x Adapter Card
1 x DC Cable
1 x SATA 7P Cable
Please check pictures for more details.
