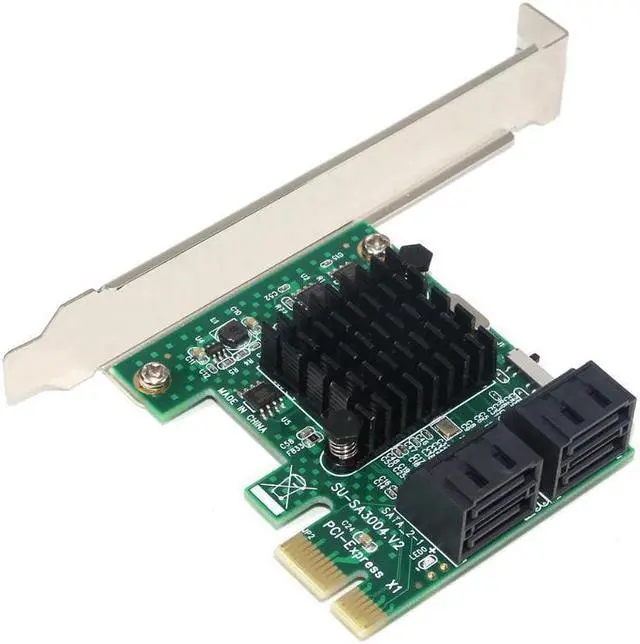

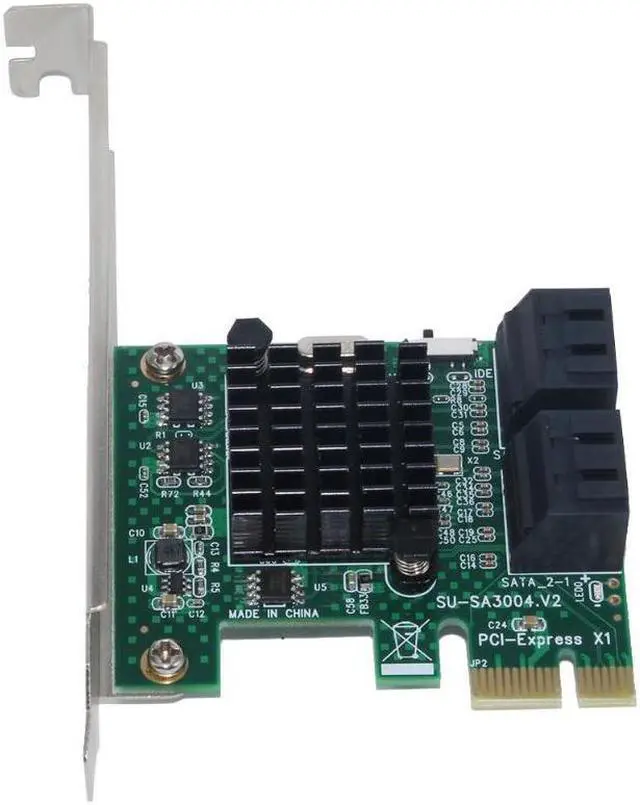

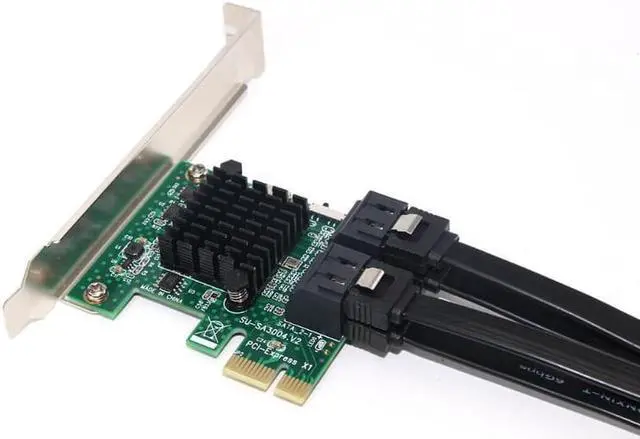

4 port SATA 3.0 to PCIe expansion Card PCI express PCI-E SATA Adapter PCI-e SATA 3 Converter for hdd SSD IPFS Mining Controller

Origin:CN(Origin)
Model Number:AC4557
Interface Type:PCI Express
Package:Yes
Certification:NONE
Type:Add On Cards
Feature 1:sata card
Feature 2:4 port sata card
Feature 3:sata card pci express
Feature 4:pci-e sata card
Feature 5:pcie to sata card
Feature 6:pcie sata 3.0
Feature 7:pcie to sata adapter
Feature 8:for computer pc hard disk
Feature 9:controller sata 3
Feature 10:pcie to sata 3.0 card
Feature 11:PCI-E to 4 SATA
Bus interface:PCI-E X1
Interfaces:SATA3.0 interface X4
Product size:120mm (baffle) *65mm*56mm

4 port SATA 3.0 to PCIe expansion Card PCI express PCI-E SATA Adapter PCI-e SATA 3 Converter for hdd SSD IPFS Mining Controller
About Description:
Feature:
1. With large heat sink, heat dissipation is better.
2. The design of the rear four ports is more convenient to wire.
3. Rear four port design, suitable for all kinds of chassis.
4. The design of the tail edge, and the probability of blocking the card player is smaller.
5. The four layer circuit board, with the addition of isolation layer in the middle, has stronger anti-interference capability.
6. mode selection, AHCL, IDE, data disk, three modes are to choose.
The three mode can be selected by pulling the switch:
1. Hard disk boot system in AHQ mode.
2. Data disk mode, hard disk does not participate in boot (at the same time can turn off self-test interface).
3. Hard disk boot system in IDE mode.
Specification:
Brand: QINDIAN
Model: SA3004
Bus interface: PCI-EX1 (compatible with X4, X8, X16/ graphics card interface)
Number of interfaces: SATA3.0 interface X4
Product size: 120mm (baffle) *65mm*56mm/4.72*2.55*2.2''
Product weight: 70g
System support: support for Windows XP/2003/ Vista/win7/in8/win10 (32/64bit) operating system.
Note:
Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
You'll receive:
1 x Adapter Card
1 x Low Profile Bracket
2 x Screws
Please check pictures for more details
