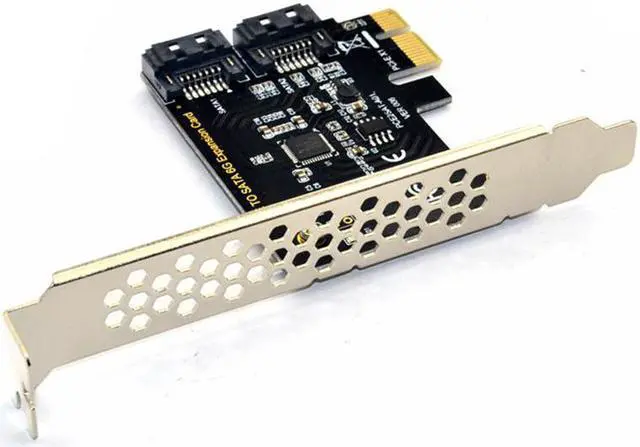

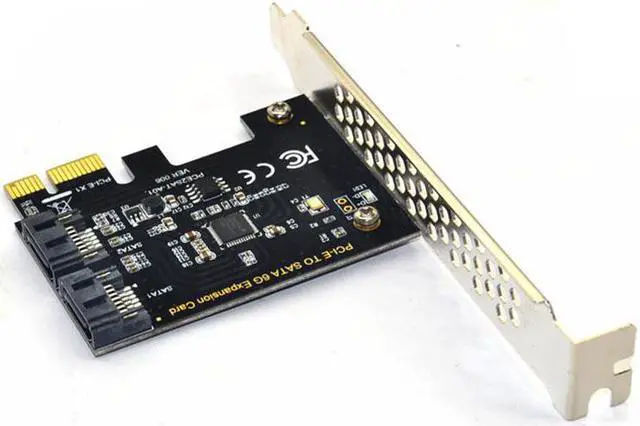

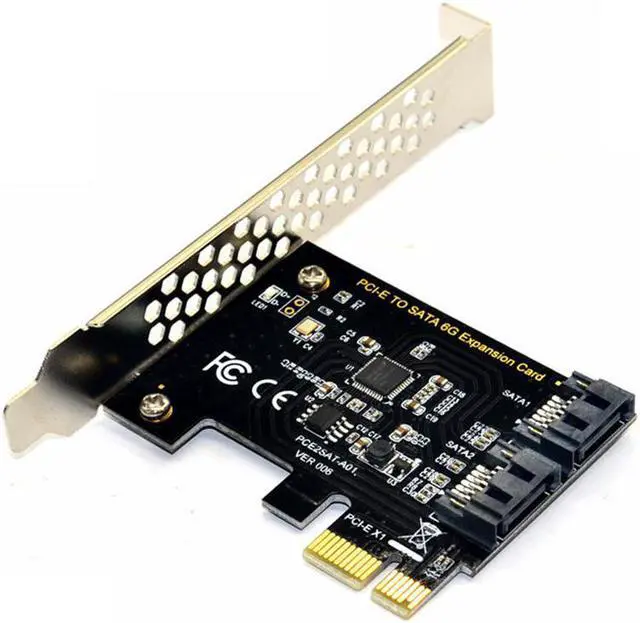

PCI Express SATA 3 Controller Card, 2 Port PCIe SATA III 6GB/s Internal Adapter Converter for Desktop PC Support SSD and HDD w

Certification:NONE
Origin:CN(Origin)
Package:Yes
Model Number:AC3393
Type:Add On Cards
Interface Type:PCI Express
Feature 1:sata card
Feature 2:sata card pci-e
Feature 3:pci-e sata
Feature 4:pci express sata card
Feature 5:sata card pcie
Feature 6:sata 6gb
Feature 7:2-port sata 3.0 pci express card
Feature 8:sata expansion card adapter
Feature 9:sata 3.0 iii
Feature 10:sata 3.0 pci-e
Feature 11:controller sata 3
Feature 12:pcie sata
Feature 13:sata controller
Feature 14:sata
Feature 15:sata3 pcie
Feature 16:pci express sata
Feature 17:sata 3 pcie
Feature 18:sata expansion
Feature 19:pcie sata 3
Feature 20:sata multiplier
Feature 21:sata pcie

PCI Express SATA 3 Controller Card, 2 Port PCIe SATA III 6GB/s Internal Adapter Converter for Desktop PC Support SSD and HDD w
About Description:
material
: metal
Colour:
Black
Support Interface:
USB3.0 TO SATA 22PIN
Support System:
WinXP/Vista/Win7/Win8 32-bit/64-bit LINUX
Meets
Serial ATA 3.0 specification, backward compatible with SATA2.0 SATA1.0
Compliant with
PCI-Express v2.0 specification, backward compatible with PCI-Express v1.0.
Supports
communication speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps
Support
Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.
Supports
two SATA
Support
AHCI1.0 mode and IDE mode
Support
native command queue (NCQ)
Supports
FIS based on port multiplier switches or command switches.
Hot-swappable and hot-swappable.
Compatible with
SATA6G, 3G and 1.5G Hard Drives
Bus interface
PCI-Express x1 slot
Extension ports
2 SATA3.0 interfaces
System Requirements
One available PCI Express X1 slot, supporting PCI-E X2 X4 X8 X16
Operating System: Windows 10/8/7 (32/64 bit) / Vista (32/64 bit) / XP/2003/2008/linux
System disk and PCIE to SATA3.0 adapter card connection conditions and solutions:
1, PCIE to SATA3.0 SATA interface mode is AHCI mode, if you want to insert the system disk in our card, the premise is that your system disk installed on the motherboard must be AHCI mode installation, otherwise it can not pass Our card adapter card boot system.
2. If it is determined that the system disk is inserted in the AHCI mode of the SATA interface mounting system on the mainboard, then the hard disk can be directly inserted into our card, and then the mainboard BIOS is set to start the system disk as the first boot.
3, the above two conditions are available, if you still can not start, or repeatedly restart, then the motherboard hard drive interface and our adapter card conflict, the solution is to enter the motherboard BIOS, the motherboard's hard disk interface options set to Disabled, save and restart to boot the system
Attention: Don't Support as System
You'll receive:
1 x PCI-E to SATA 6G Expansion Card
1 x Low Profile Bracket
Please check pictures for more details.
