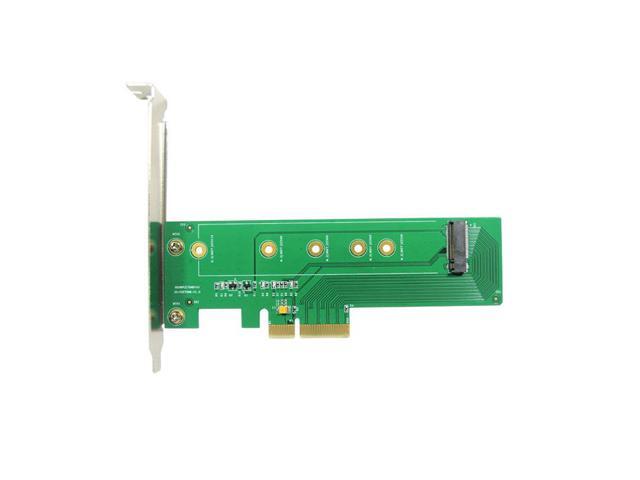

M.2 NVMe SSD NGFF to PCIE X4 Convert Card Adapter M Key Interface HDD Expansion Cards

Interface Type:PCI Express
Package:Yes
Model Number:IO-PCE4X-M2

M.2 NVMe SSD NGFF to PCIE X4 Convert Card Adapter M Key Interface HDD Expansion Cards
About Description:
100% And .
Part Number: IO-PCE4X-M2
Specifications
Convert M.2 NGFF PCI-e based SSD to work in main board PCI-e x4/8/16 bus slot
PCI Express 3.0 x4 Lane Host adapter;
Supports PCI-e Gen3 and PCI-e Gen2 M.2 NGFF 110mm, 80mm, 60mm, 42mm, 30mm
SSD
Movable M.2 NGFF stand-off and multiple plated-holes supports type 22110, 2280, 2260,
2242 and 2230 SSD
Supports PCI-e 1.0 ,PCI-e 2.0 and PCI-e 3.0 motherboard
Low Profile PCI-e Form Factor
Regular size PCI-e bracket on board and Low Profile bracket included
Transparent to the operating system and no driver required
Supports any OS like Windows, Mac and Linux
Supports industrial operating temperature range: -40 - 85 ºC
Note: M.2 SATA based SSD CANNOT work with this PCI-e based Adapter
System Requirement:
Windows 2000/XP/2003/2008/Vista/7/8/8.1/10
Linux, MAC OS
You'll receive:
1 x M.2 PCI-e to PCI-e 3.0 x4 Adapter
1 x Low Bracket
1 x User Manual
2 x Screws(M.2)
Please check pictures for more details.
