M2 Riser Card M.2 NGFF To 16x GPU USB 3.0 Extender Riser Adapter SATA to 4Pin IDE Power Supply for BTC Miner Machine Mining

Type:PCI-E Riser
Products Status:STOCK
Package:Yes
Model Number:AC3083
Product name:pci-e adapter card
USB Interface:USB 3.0
Features:M.2 NGFF To 16x GPU Usb 3.0 Extender Riser

Compatible with:1x,4x,8x,16x PCI-E slot of the motherboard
Featue 1:With 3x FP solid capacitors
Feature 2:With SATA 15pin Male to 4pin power cable
Use:for bitcoin miner

M2 Riser Card M.2 NGFF To 16x GPU USB 3.0 Extender Riser Adapter SATA to 4Pin IDE Power Supply for BTC Miner Machine Mining
About Description:

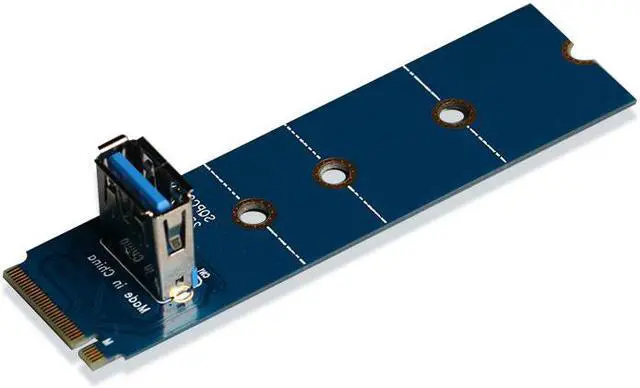

M.2 TO USB Description:
100% and
Connects USB device to NGFF B or M Key motherboard
Compliant with PCI Express M.2 specification 1.0
Compliant with USB 3.0 specification
Data transfer rate up to 5.0Gbps
Supports socket 2 (B Key) & socket 3 (M Key)
One USB 3.0 type-A female and one NGFF M.2 Key B+M male connectors available
4 pin 6pin SATA power connector available for stable power
4 screw holes 2230/2242/2260/2280 available
Easy installation & no driver required
Supports any OS, like Windows, WinCE & Linux etc
Quantity: 1pcs

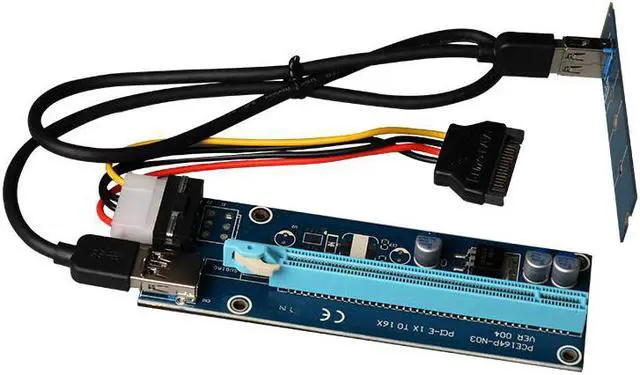

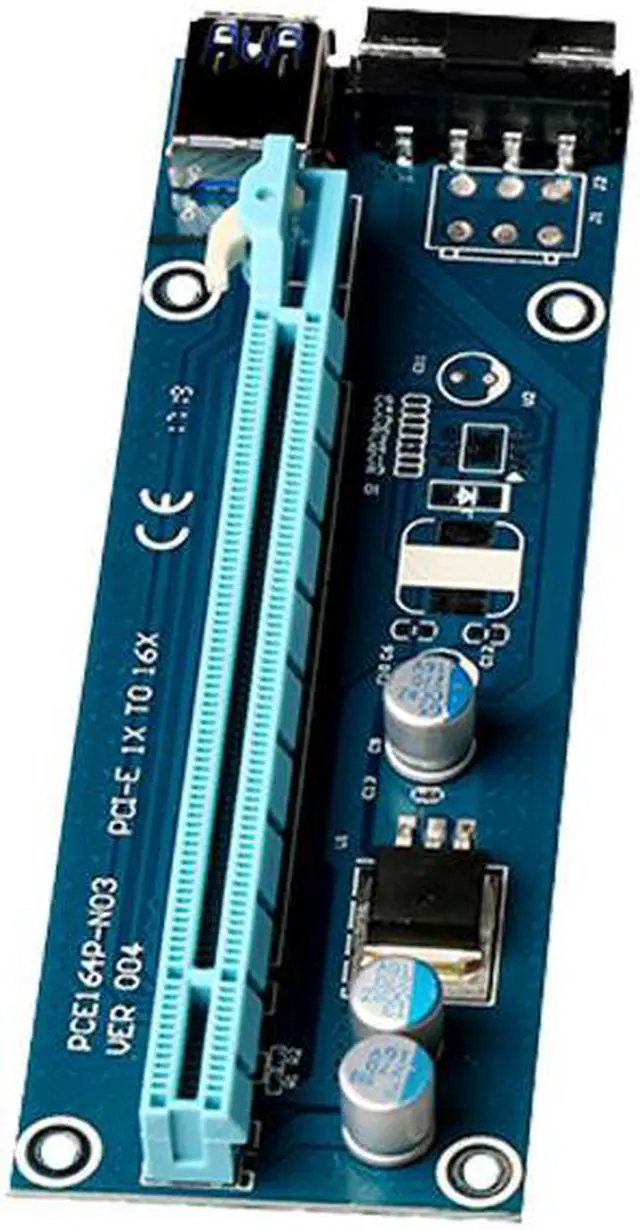

PCIE 1X TO 16X
Features:
1. 100% and .
2. Using 60cm USB 3.0 cable as extender cable ,premium quality and super speed.
3. With 4x FP solid capacitors, making graphics power supply more stable and secure
4. Gold plated contacts for better connectivity and long life .
5. Compatible with 1x,4x,8x,16x PCI-E slot of the motherboard.
6. With side clip to fasten other card.
7. No driver needed.
8. Dedicated for bitcoin mining.
9. Colour: Blue
10. USB Cable Length: approx.60cm/1.96 feet
Attention:
The output board defaults to GEN3, so it can't recognize the card or appear exclamation marks! For these
motherboards, we need to study the relevant settings inside the BIOS, the BIOS inside the PCIE, 16X speed set to GEN2,
GEN1, recommended GEN2, you can use normally.
Reminder:
M.2 NGFF To PCI-E X16 adapter, the adapter can convert M.2 NGFF interface for PCI-E normal X16 interface board, with 2
fixed holes, respectively 22*30MM, 22*42MM, 22*60MM, 22*80MM.
According to your computer card slot length, can break the
location, be sure to pay attention to, be sure to use it can be broken.
You'll receive:
1 X NGFF M.2 To USB Riser Card
1 x PCI-E 16x Slot Adapter
1 x USB 3.0 Cable
1 x SATA 15Pin to 4Pin Power Cable
Please check pictures for more details.
