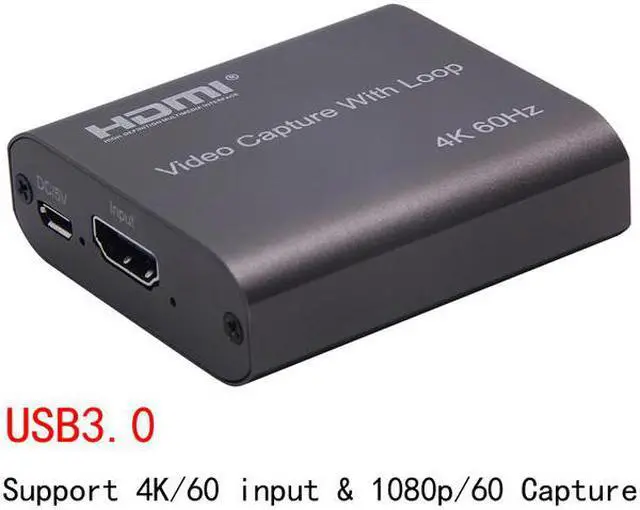

HDMI Video Capture Card HD 1080P 4K 60Hz HDMI To USB 3.0 Video Capture Board Game Record Live Streaming Broadcast Local Loop Out

Origin:CN(Origin)
Model Number:AC4767
Package:Yes
Interface Type:USB
Product name:USB 3.0 Mini Video Capture Card
Type:Video & TV Tuner Cards
Feature 1:video card
Feature 2:video cards
Feature 3:capture card
Feature 4:hdmi capture
Feature 5:streaming
Feature 6:VHS
Feature 7:hdmi video capture
Feature 8:video capture
Feature 9:board capture
Feature 10:video capture card
MAX Input Resolution:4K/60Hz
MAX Output Resolution:1080P/60Hz
Support System:Windows 7/8/8.1/10, Mac OS
Color:Coffee
Function 1:video capture usb
Function 2:hdmi capture usb
Function 3:hdmi to usb capture
Function 4:hdmi to usb video capture
Function 5:capture hdmi
Function 6:hdmi capture card
Function 7:usb video capture card hdmi
Function 8:video capture box
Function 9:game capture
Function 10:usb video capture hdmi
Function 11:capture hdmi usb
Function 12:game capture card
Function 13:hdmi video capture card
Function 14:video grabber usb

HDMI Video Capture Card HD 1080P 4K 60Hz HDMI To USB 3.0 Video Capture Board Game Record Live Streaming Broadcast Local Loop Out
Important Tips:
Coffee capture card is
USB3.0
Physical Interface, the capture chips is
USB2.0
Max Input: 4K/60Hz; Max Output 1080P/60Hz
About Description:
The video capture can capture both HDMI video and HDMI audio, sending audio and video signals to computers and smart phones for preview and storage. Suitable for high definition acquisition, teaching recording, medical imaging, etc.
Features:
* Support HDMI loop out;
* Support input max resolution 4K/60Hz;
* Support output max resolution 4K/60Hz;
* Support USB video capture max resolution 1080P/60Hz;
* Support AWG26 HDMI standard cable: input up to 5 meters,output up to 5 meters;
* Support most acquisition software, such as VLCOBS Amcap, etc;
* Support WindowsAndroid and MacOS;
* Conform to USB Video and UVC standard;
* Conform to USB Audio UAC standard;
* Compact and portable.
Specifications:
HDMI resolution: Max input/output can be 4K/60Hz
Support video format: 8/10/12bit Deep color
USB video capture format: YUVJPEG
USB video capture resolution: Max output can be 1080P/60Hz
Support audio format: L-PCM
Input cable distance: 5m,AWG26 HDMI standard cable
Output cable distance: 5m,AWG26 HDMI standard cable
Max working current: 0.7A/5VDC
Operating Temperature range:(-10 to +55)
Dimension (L x W x H): 59x56x19 (mm)
Weight: 52g

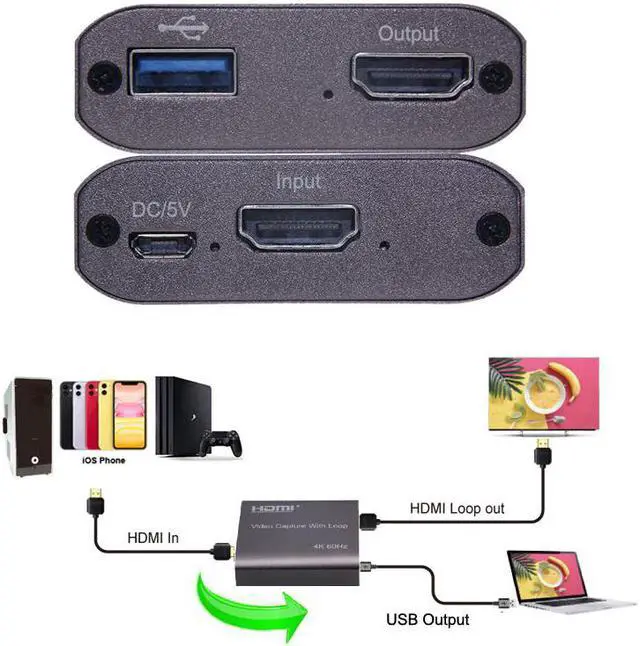

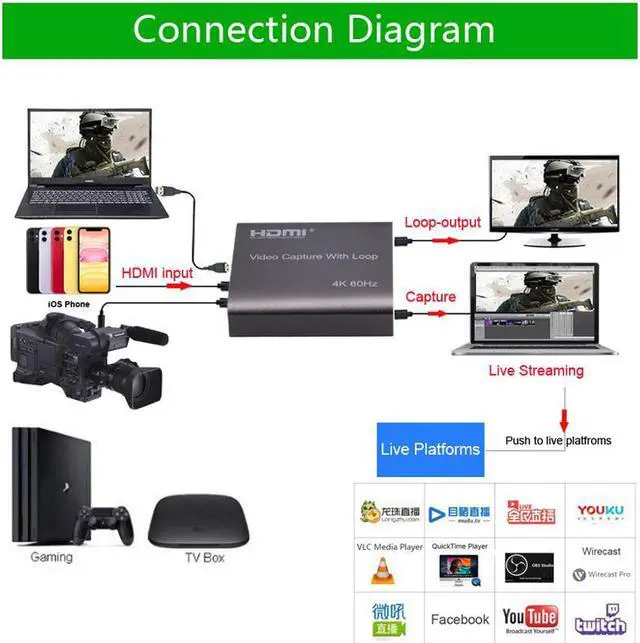

Connection and Operation
1: Connect the UHD signal source to the HDMI input of the video capture with one HDMI
cable.
2. Connect the display device to the HDMI output of the video capture with one HDMI cable.
3. Connect PC USB port to the USB output of the video capture with one USB cable.
4: Operation steps for USB video capture(OBS): Open the softwareChoose sources of
Video capture DeviceSet the size of imageChoose Studio Mode(double window)
Choose Start Recording.
Note:
Computer hardware configuration requirements
CPU: PC i5-3400 or above NB i7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA GT630 or aboveNC NVIDIA GT735M or above
Run memory: 4G RAM
You'll receive:
1 x Video Capture Device
1 x User Manual
1 x USB Cable Male to Male
1 x Micro USB Cable
Please check pictures for more details.
