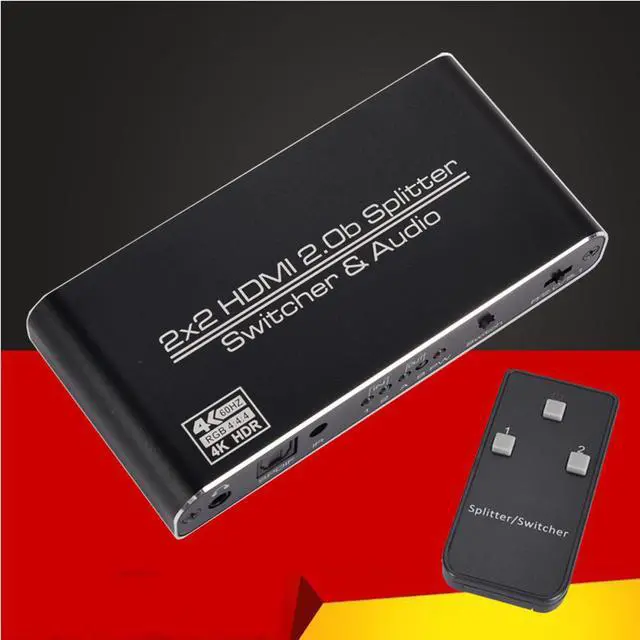

HDMI Splitter 4K HDMI Switch Audio Box 2x2 Adapter with IR Remote HDMI Switcher 2 in 2 out 3D 1080P for PS4/3 TV Box HDMI Switch

Type:Cable Adapter
Package:Yes
Products Status:STOCK
Model Number:AC4701

HDMI Splitter 4K HDMI Switch Audio Box 2x2 Adapter with IR Remote HDMI Switcher 2 in 2 out 3D 1080P for PS4/3 TV Box HDMI Switch
About Description:
The HDMI 2*2 with 4Kp60 supported which allows HDMI signal from any of its 2 sources to be routed to and displayed on any of its two connected HDMI displays simultaneously. It supports 3D, 18Gbps bandwidth, 24-bit Deep Color, Hi-Def lossless audio and other features defined by HDMI specifications. The management of source sink scenarios can be operated easily through on-panel buttons, IR remote control.
Features:
1. Compliant with HDMI 2.0b; HDCP2.2;HDR.
2. Support video format up to
4k2k@60Hz
with 24bit RGB 4:4:4, 3D frame sequential video format up to
4k2k@60Hz
.
3. Audio support: HDMI 2.2b compatible audio interface Dolby TrueHD DTS-HD Master Audio 5.1CH.
4. Frequency Bandwidth: 18Gbps
Specification:
Input Ports: 2 x HDMI Female.
Output ports: 2 x HDMI Female; 1x Toslink; 1x Earphone
HDMI Audio Output: PCM2, 5.1CH, Dolby 5.1, DTS5.1, D-TrueHD, DTS-HD
Power Supply: 5V/1A DC (US/EU standards, CE/FCC/UL certified)
ESD Protection Human Body Model: ± 8kV (air-gap discharge), ± 4kV (contact discharge)
Dimensions (mm): 112(D) x55(W) x 18(H)
Weight (g): 167g
Power Consumption(max) 5W
Operating Temperature: 0C ~ 40C / 32F ~ 104F
Storage Temperature: -20C ~ 60C / -4F ~ 140F
Operation controls and Functions:

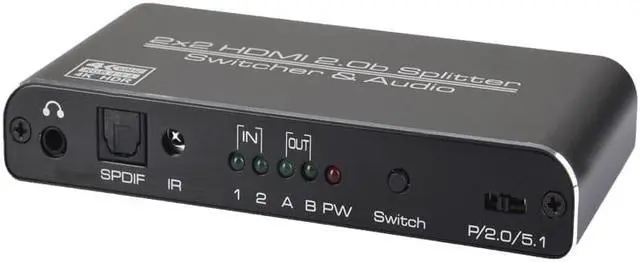

Front Panel (From left to right)
Earphone audio output.
SPDIF:  Spdif audio output.
IR: Remote control signal receive.
IN LED(1-2): These green LED illuminate when the output select to the corresponding input.
IN LED(A-B):This green LED will illuminate when the signal comes from the A or B port.
PW LED: This RED LED illuminate when the device is connected with power supply.
Switch: Press this button to select the input source.
P/2.0/5.1: Different Audio output mode.

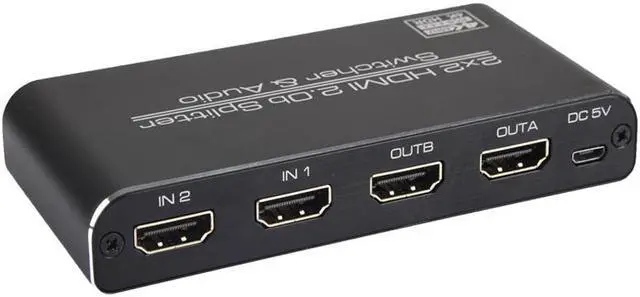

Rear Panel (From left to right)
IN2\IN1: HDMI input port.
OUTB\OUTA:HDMI output port.
DC 5V: Plug the 5V DC power supply into the unit.
Application Example
You'll receive:
1 x HDMI 2*2
1 x USB Power Supply Cable
1 x Remote Control
1 x Operation Manual
Please check pictures for more details.
