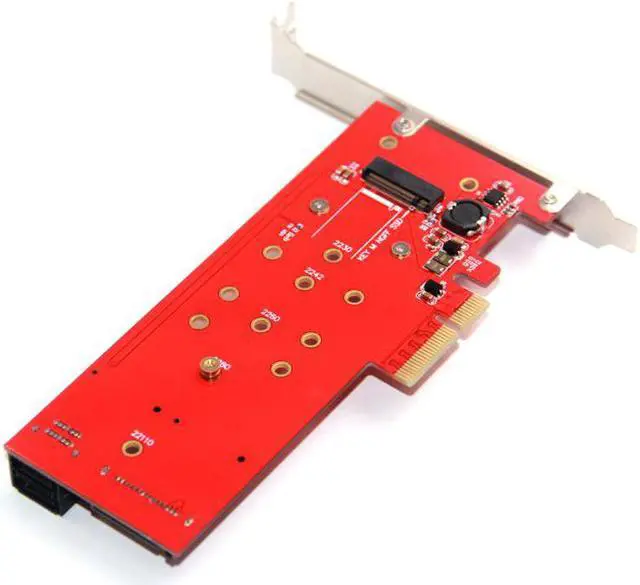

PCIE to M2 Adapter PCIE X4 to 1Port M Key NVMe M.2 + 2Port B Key NGFF M.2 Riser Card SATA 15Pin Power 2 SATA Connect Motherboard

Interface Type:PCI Express
Package:Yes
Model Number:AC3839
Product name:pcie to m2 adapter
Bus Type:PCI-E X4
SSD Interface:1-port M Key +2-port B Key
Support SSD Quantity:1x M.2 NVMe + 2x M.2 NGFF SSD
Support Size:Support the 2230, 2242, 2260, 2280 M2 SSD
Feature 1:m2 pci-e adapter
Feature 2:compatible ssd m2 2242
Feature 3:ssd m2 adapter
Feature 4:ssd pci-e riser
Feature 5:with LED indicator

PCIE to M2 Adapter PCIE X4 to 1Port M Key NVMe M.2 + 2Port B Key NGFF M.2 Riser Card SATA 15Pin Power 2 SATA Connect Motherboard
About Description:
1. Product Name: PCI-E 4X TO NGFF 2B/1M KEY Riser
2. Product Description:

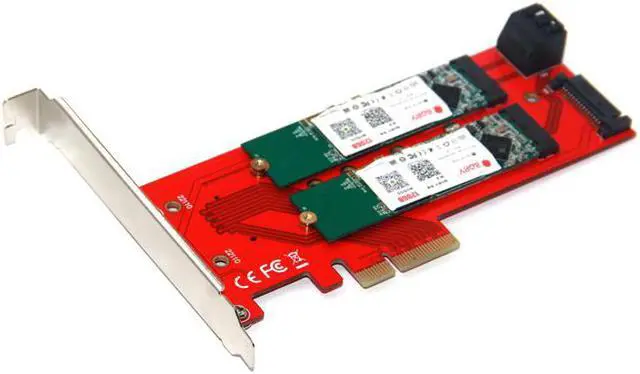

This is a multi-interface M.2 solid state drive adapter. This product with one M.2
M-KEY interface (PCIe protocol) and two M.2 B-KEY interfaces (SATA protocol), which can easily expand an NVMe solid state system disk or an M.2 SATA system disk for your computer. This product is reserved with an external power interface. 3pcs M.2 interfaces can be connected to the SSD hard disk at the same time. When the SSD hard disk Excessive Power Consumption and the computer is not Recognized., it can be connected to the external power supply for increase the power supply. When the Main Board's power supply is sufficient, don't need connect an external power supply.
3. Product Size Chart: 166mm*120mm
4. Product Features:
*Multi-interface, can connect a variety of M.2 interface SSD, easily expand the system disk.
*With LED indicator for easy control of SSD operation.
*Reserve external power supply interface, when using high-power SSD, you can connect external power supply at any time to increase power supply.
*Fixed SSD copper studs are removable, for connection to the various specifications SSDs easily.
*elastic connectors for a more stable contact.
*Gold finger gold plating, better conductivity.
5. Product Parameters:
Product Name: PCI-E 4X TO NGFF 2B/1M KEY Riser
Interface Type: SATA7P*2  M-KEY*1 B-KEY*2
Power Supply Interface: SATA15P
Bus Type: PCI-E x4
Support Slot: PCI-E x4/x8/x16
Support System: WIN7/8/10, Linux, Mac OS
Warm Tips:
This item not include any SSD/HDD. Thanks!

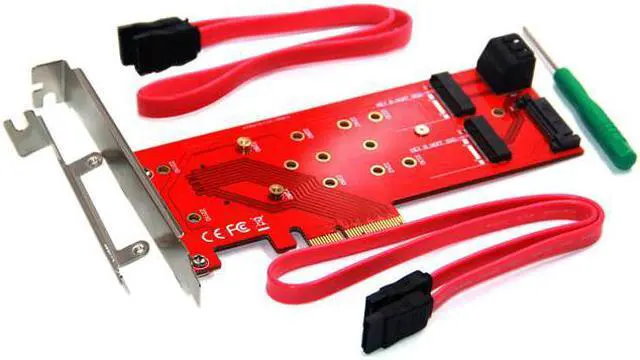

You'll receive:
1 x PCI-E 4X Adapter Card
2 x SATA Cable
1 x Short Bracket
1 x Screwdriver
1 x User Manual
Please check pictures for more details.
