M key NVME PCI Express M.2 SSD HDD Enclosure USB3.1 to PCI-e 3.0 4x NGFF 2280 Mobile Box for Samsung 960 EVO PM961 PM951

Interface Type:USB
Package:Yes
Model Number:TS3776
Product name:USB 3.1 Type-C PCI-E Nvme Convert Box
Speed:10Gbps
Size:107*46*10mm
Support m.2:M-Key M.2 SSD
Feature:USB3.1 to pcie SSD NVMe
Type:HDD Enclosure
Feature 1:nvme adapter
Feature 2:pcie m.2
Feature 3:pcie ssd
Feature 4:pcie ssd adapter

M key NVME PCI Express M.2 SSD HDD Enclosure USB3.1 to PCI-e 3.0 4x NGFF 2280 Mobile Box for Samsung 960 EVO PM961 PM951
Note :
This case use for mobile hard disk, can't use it as the system disk.
it work with Samsung NVME M.2 hard disk . But Samsung Data Migration is not
supported, becuase of Samsung_Data_Migration is used to clone the system.
About Description:
Features:
Supports TRIM to the SSD
Integrates with USB Type-C multiplexer& configuration channel(CC)logic
Complies with PCI Express Base Specification Revision 3.1a
Complies with NVM Express 1.3
Complies with USB3.1 Gen 1 and Gen 2 Specification,USB Mass Storage Class,Bulk-only Transport Specification(Revision 1.0)
Complies with USB Attached SCSI Protocol(UASP)Specification(Revision 4)
Supports USB Super-Speed/High-Speed/Full-Speed Operation
Supports USB2.0/USB3.1 Gen 1/2 power saving mode
Supports external SPI NVRAM for Vendor VID/PID of USB2.0/USB3.1 Gen 1/2 device controller
Thirteen GPIOs for customization
Provides hardware controlled PWMs
Provides software utilities for downloading the upgraded firmware code under USB2.0/USB3.1 Gen1,2
Design for Windows 7,Windows 10 and MAC 10.10.5 or later version
Supports 25MHZ external crystal
Supports 3.3V I/O
Embedded 5V to 1.0V voltage regulator
Embedded 5V to 3.3V linear voltage regulator(LD0)
Specs:
Item: USB3.1 TYPE-C NVMe
Size: 107*46*10mm, support SSD 2230, 2242, 2260, 2280
Material: Aluminum
Protocol : NVMe
Connector : TYPE-C
High Speed: 10Gbps
Support : 3D Game, 4K video ,HIFI Music, RAM Picture ect
Note: this item only support M key PCIE Protocol SSD.

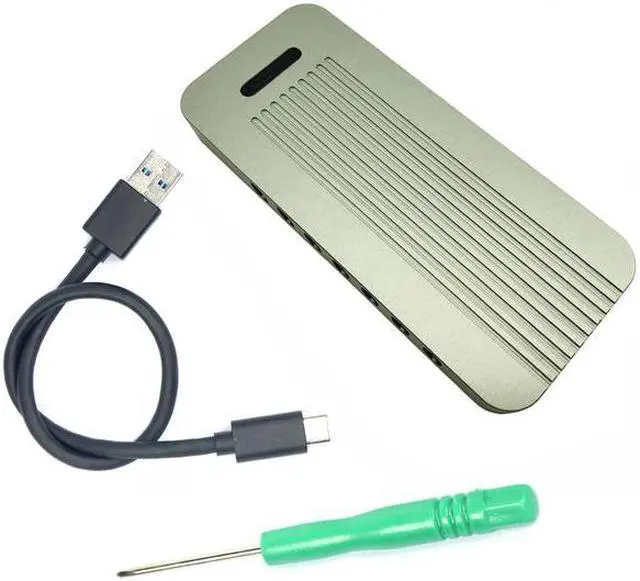

You'll receive:
1 x USB 3.1 Type-C PCI-E Nvme SSD Enclosure
1 x Type A-C or Type C-C Cable
1 x Screwdriver
Please check pictures for more details.
