USB3.1 Type C NVMe SSD Enclosure Adapter M KEY Connector M.2 NGFF to USB 3.1 Converter Hard Disk Drive HDD Case Aluminum HDD Box

Type:SATA Cables
Products Status:STOCK
Package:Yes
Model Number:AC3467
Product name:USB 3.1 Type-C PCI-E Nvme Convert Box
Speed:10Gbps
Size:107*46*10mm
Support m.2:M-Key M.2 SSD
Feature:USB3.1 to pcie SSD NVMe
Feature 1:nvme adapter
Feature 2:pcie m.2
Feature 3:pcie ssd
Feature 4:pcie ssd adapter

USB3.1 Type C NVMe SSD Enclosure Adapter M KEY Connector M.2 NGFF to USB 3.1 Converter Hard Disk Drive HDD Case Aluminum HDD Box
dear all value clients ,
Note:
This case use for mobile hard disk, can't use it as the system disk.
it work with Samsung NVME M.2 hard disk . But Samsung Data Migration is not
supported, becuase of Samsung_Data_Migration is used to clone the system.
If the disk memory you detected is not the same as the actual disk memory,
because the computer's capacity algorithm is different from the hard disk capacity algorithm.
1GB is not equal to 1024M.
Please take it into you account before purchase .
any questions, please feel to contact us;
Common sense:
conversion in the computer,
1 Bytes = 8 bits; 1 KB = 1024 Bytes; 1 MB = 1024 KB; 1 GB = 1024 MB,
hard disk manufacturers often use a simpler algorithm, namely:
1GB = 1000MB, 1MB = 1000KB
Therefore,  the actual capacity of the 80G of the hard disk is only 80×1000×1000×1000/1024/1024/1024=74.51G, which is about 76300M.
About Description:
Features:
Item: USB3.1 TYPE-C NVMe
Size: 107*46*10mm
Material: Aluminum
Protocol : NVMe
Connector : TYPE-C
High Speed: 10Gbps
Support : 3D Game, 4K video ,HIFI Music, RAM Picture ect
Note:
M-key connector , Only support PCI-E Protocol M.2 NVMe SSD.
NVMe Supriority:
1. up theperformance
2. decrease delay
3. decrease power dissipation
4. IPOS of SSD will increase
Function:
Supports TRIM to the SSD
Integrates with USB Type-C multiplexer& configuration channel(CC)logic
Complies with PCI Express Base Specification Revision 3.1a
Complies with NVM Express 1.3
Complies with USB3.1 Gen 1 and Gen 2 Specification,USB Mass Storage Class,Bulk-only Transport Specification(Revision 1.0)
Complies with USB Attached SCSI Protocol(UASP)Specification(Revision 4)
Supports USB Super-Speed/High-Speed/Full-Speed Operation
Supports USB2.0/USB3.1 Gen 1/2 power saving mode
Supports external SPI NVRAM for Vendor VID/PID of USB2.0/USB3.1 Gen 1/2 device controller
Thirteen GPIOs for customization
Provides hardware controlled PWMs
Provides software utilities for downloading the upgraded firmware code under USB2.0/USB3.1 Gen1,2
Design for Windows 7,Windows 10 and MAC 10.10.5 or later version
Supports 25MHZ external crystal
Supports 3.3V I/O
Embedded 5V to 1.0V voltage regulator
Embedded 5V to 3.3V linear voltage regulator(LD0)
You'll receive:
1 x USB 3.1 Type-C PCI-E Nvme HDD Case
1 x Type-C Cable
1 x Screwdriver

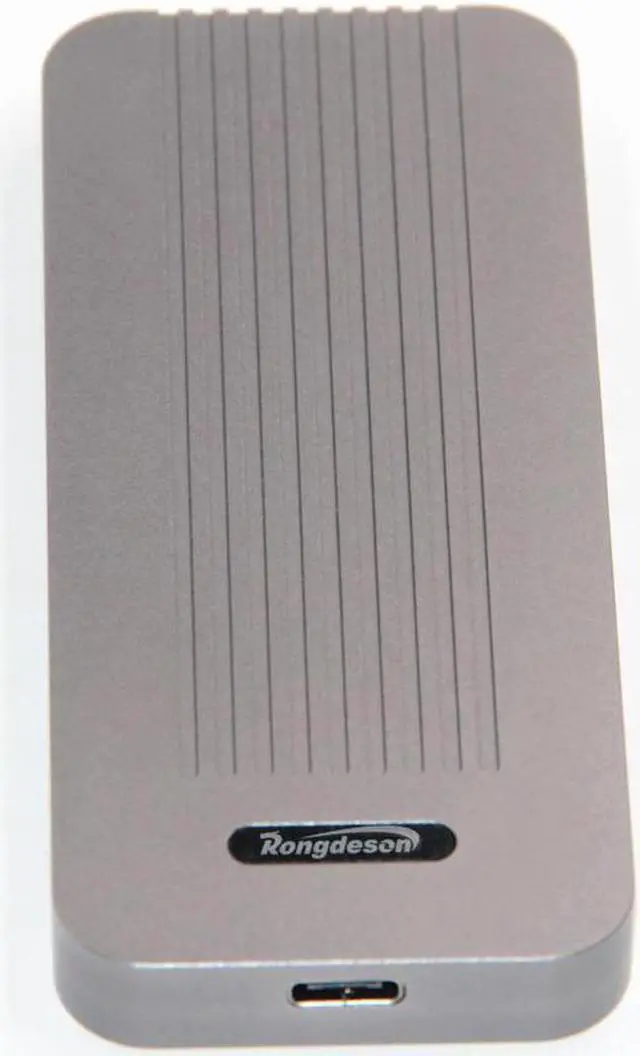

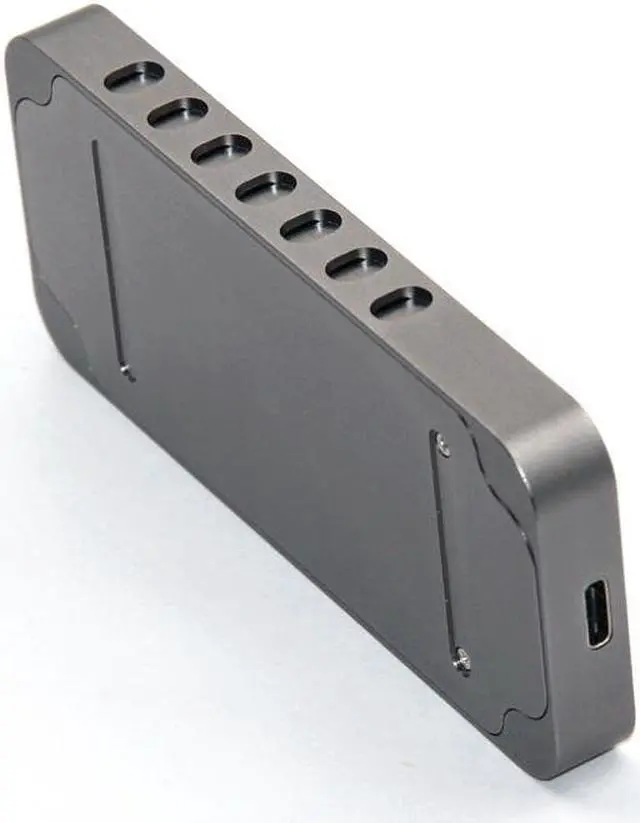

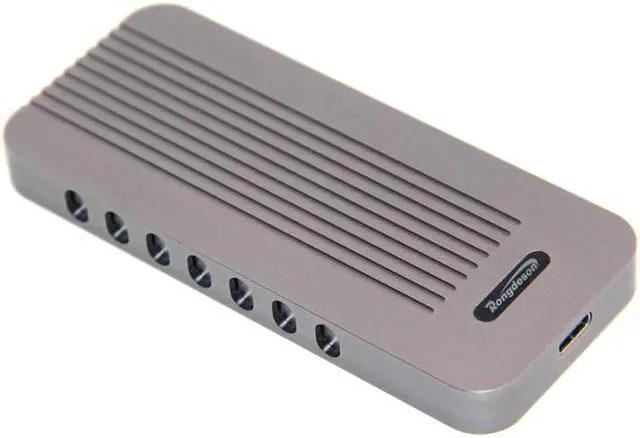

Please check pictures for more details.
