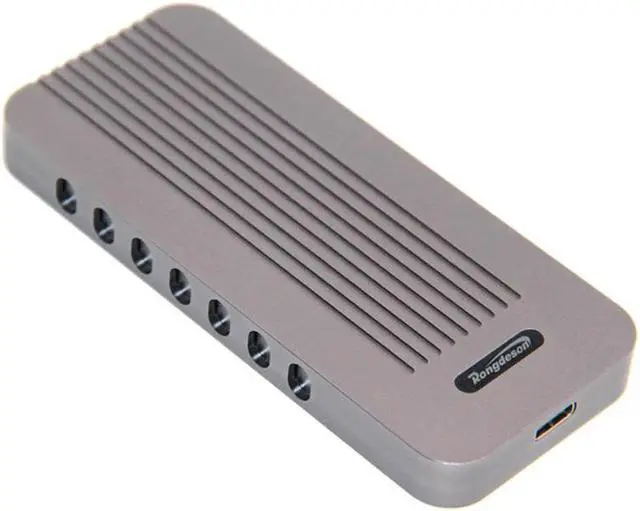

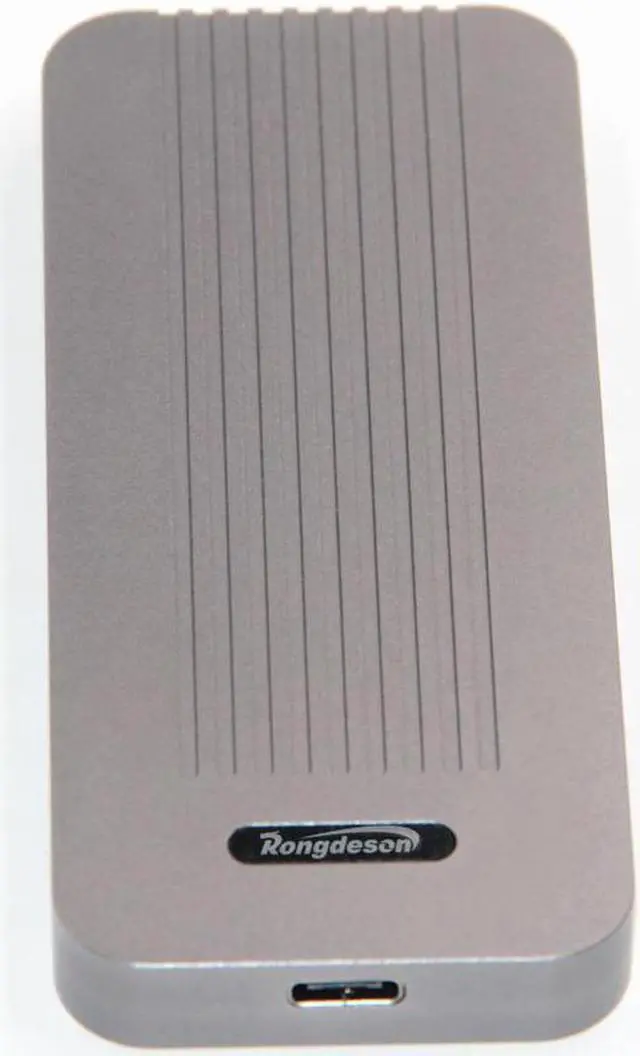

M key NVME PCI Express M.2 SSD HDD Enclosure USB3.1 type-c to PCI-e 3.0 4x NGFF 2280 External Mobile Box for Intel 600P PM951

Interface Type:USB
Package:Yes
Model Number:TS3467
Product name:USB 3.1 Type-C PCI-E Nvme Convert Box
Speed:10Gbps
Size:107*46*10mm
Support m.2:M-Key M.2 SSD
Feature:USB3.1 to pcie SSD NVMe
Type:HDD Enclosure
Feature 1:nvme adapter
Feature 2:pcie m.2
Feature 3:pcie ssd
Feature 4:pcie ssd adapter

M key NVME PCI Express M.2 SSD HDD Enclosure USB3.1 type-c to PCI-e 3.0 4x NGFF 2280 External Mobile Box for Intel 600P PM951
dear all value clients ,
    Your Hard disk should meet the following requirements can use this case :
1. M-key connector ,
2. Only support PCIE (NVME)Protocol.
3. All hard disk must be partitioned and formatted the first time use this case!
if there are date with hard disk, pls backup first .
Partitioning and formatting steps:
Then click Computer "Device Manager"--"Storage"--"Disk Management",
Find out the hard disk that is connected,
Install the system's hard disk , re-partition selects the MBR hard disk and uses the GUID partition table type.
Set the partition, right click the mouse to initialize .
Then there will be a dialog box for the next step,
just click next step will be fine.
4.This case use for mobile hard disk, can't use it as the system disk.
it work with Samsung NVME M.2 hard disk . But Samsung Data Migration is not
supported, becuase of Samsung_Data_Migration is used to clone the system.
5. If the disk memory you detected is not the same as the actual disk memory,because the file format is different, must choose MBR and GUID format.
6. if not sure whether your hard disk can use this case , pls massage us before purchase.
we don't hope you open dispute or left nagative feedback to inform us can't use the case.
About Description:
Features:
Item: USB3.1 TYPE-C NVMe
Size: 107*46*10mm
Material: Aluminum
Protocol : NVMe
Connector : TYPE-C
High Speed: 10Gbps
Support : 3D Game, 4K video ,HIFI Music, RAM Picture ect
Important Note:
M-key connector , Only support PCI-E Protocol NVMe SSD
NVMe Supriority:
1. up theperformance
2. decrease delay
3. decrease power dissipation
4. IPOS of SSD will increase
Function:
Supports TRIM to the SSD
Integrates with USB Type-C multiplexer& configuration channel(CC)logic
Complies with PCI Express Base Specification Revision 3.1a
Complies with NVM Express 1.3
Complies with USB3.1 Gen 1 and Gen 2 Specification,USB Mass Storage Class,Bulk-only Transport Specification(Revision 1.0)
Complies with USB Attached SCSI Protocol(UASP)Specification(Revision 4)
Supports USB Super-Speed/High-Speed/Full-Speed Operation
Supports USB2.0/USB3.1 Gen 1/2 power saving mode
Supports external SPI NVRAM for Vendor VID/PID of USB2.0/USB3.1 Gen 1/2 device controller
Thirteen GPIOs for customization
Provides hardware controlled PWMs
Provides software utilities for downloading the upgraded firmware code under USB2.0/USB3.1 Gen1,2
Design for Windows 7,Windows 10 and MAC 10.10.5 or later version
Supports 25MHZ external crystal
Supports 3.3V I/O
Embedded 5V to 1.0V voltage regulator
Embedded 5V to 3.3V linear voltage regulator(LD0)
You'll receive:
1 x USB 3.1 Type-C PCI-E Nvme SSD Case
1 x Type-C Cable
1 x Screwdriver
Please check pictures for more details.
