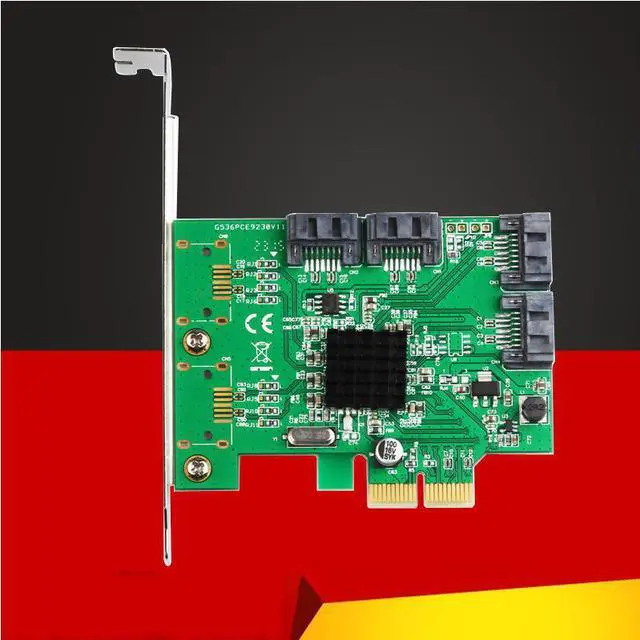

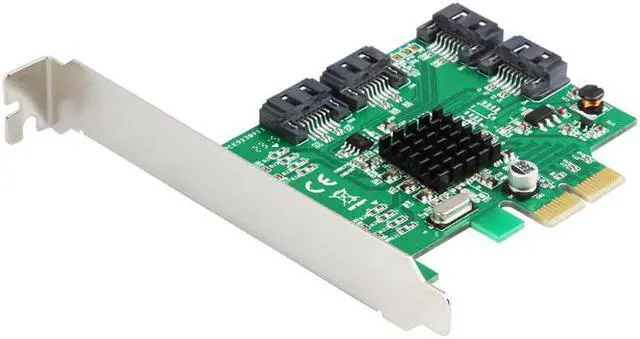

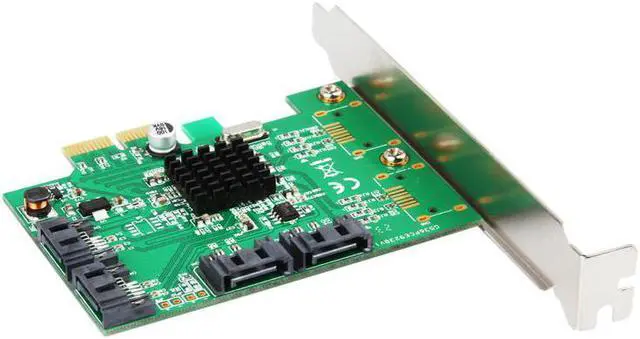

Add On Cards SATA Raid Card PCI-Express 4-Ports HyperDuo SATA III RAID Controller Card Marvell 88SE9230 with Low Profile Bracket

Certification:NONE
Origin:CN(Origin)
Package:Yes
Model Number:AC4090
Type:Add On Cards
Interface Type:PCI Express
Chipset:Marvell 88SE9230
Internal Port:4-Port Controller SATA 3
Support:RAID Function
Packing with:Low profile bracket
Feature 6:sata raid
Feature 7:raid controller
Feature 8:raid card
Feature 9:raid sata
Feature 10:pci express sata raid card

Add On Cards SATA Raid Card PCI-Express 4-Ports HyperDuo SATA III RAID Controller Card Marvell 88SE9230 with Low Profile Bracket
About Description:
Specification:
1. 4 Internal SATA 6Gb/s Ports
2. Compliant with PCI-Express Specification v2.0 and Backward Compatible with PCI-Express 1x
3. Compliant with Serial ATA Specification 3.0
4. PCI-Express x2 Interface (for Selected Models)is Compatible with PCI-Express x4, x8 and x16 slots.
5. Supports Communication Speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps.
6. Hot Plug and Hot Swap.
7. Supports Native Command Queue (NCQ).
8. Supports Port Multiplier FIS Based Switching or Command Based Switching.
9. Compatible with SATA 6G, 3G and 1.5G Hard Drives.
RAID Function:
RAID 0-Striping (Stripe Size: 32K, 64K)
RAID 1-Disk Mirroring
RAID 10-Stripe of Mirrors (Stripe Size: 32K, 64K)
HyoperDuo Safe (Mirrored Protection) or Capacity-Cost (Optimized)
Note:Not Supported RAID on PM
Software requirement:
Windows 8
Windows 7
Vista
Windows XP
Server 2008
Server 2008 R2
Server 2003
Linux 2.6.x and Above (AHCI devices driver is a built-in feature)
You'll receive:
1 x PCI Express SATA Raid Card
1 x SATA Cable
1 x User Manual
1 x CD Driver
Please check pictures for more details.
