4K 60Hz HDMI Video Capture Card 3.5mm Audio Output Mic In Loop Game Recording Box 1080P USB3.0 PC Live Streaming Broadcast Plate

Origin:CN(Origin)
Model Number:AC4797
Package:Yes
Interface Type:USB
Product name:Full HD 4K 60 1080P 60 HDMI Video Capture Card
Type:Video & TV Tuner Cards
Feature 1:video card
Feature 2:video cards
Feature 3:capture card
Feature 4:hdmi capture
Feature 5:streaming
Feature 6:VHS
Feature 7:hdmi video capture
Feature 8:video capture
Feature 9:board capture
Feature 10:video capture card
MAX Input Resolution:4K
MAX Output Resolution:1080P
Support System:Windows 7/8/8.1/10, Mac OS
Color:Black
Function 1:video capture usb
Function 2:hdmi capture usb
Function 3:hdmi to usb capture
Function 4:hdmi to usb video capture
Function 5:capture hdmi
Function 6:hdmi capture card
Function 7:usb video capture card hdmi
Function 8:video capture box
Function 9:game capture
Function 10:usb video capture hdmi
Function 11:capture hdmi usb
Function 12:game capture card
Function 13:hdmi video capture card
Function 14:video grabber usb

4K 60Hz HDMI Video Capture Card 3.5mm Audio Output Mic In Loop Game Recording Box 1080P USB3.0 PC Live Streaming Broadcast Plate
Description:
The HDMI video capture can capture and separate the HD video and audio signal.
It can display the HD signal to the displayer or projector.Also it supports USB storage
by computer at the same time.The stripped left and right analog audio 3.5 stereo
output.The max resolution can be up to 4K/60Hz.Also can push to online live platfroms to live at the same time, Suitable for HD acquisition, teaching live streaming, game live streaming, Study video capture, Films capture etc.
Features:
1. Support max resolution up to 4K/60Hz;
2. Support microphone audio input 3.5 stereo output
3. Support microphone audio and hdmi audio overlay capture
4. Support the max baud rate of 18G and TMDS clock can be up to 600MHz;
5. Support deep color
6. Support AWG26 HDMI standard cable: HDMI input up to 8 meters, HDMI output up to 8 meters.(1080P and below resolution);
7. Support USB3.0 Standard cable, output up to 1.5m;
8. Support many capture software, such as VLC/OBS/Amcap ect.
9. Conform to USB video 1.5 and USB audio 1.0 standard;
10. Support uncompressed(YUY2 1080P 60Hz) acquisition (USB3.0);
Specifications:
HDMI resolution: Up to 4K/60Hz
Support color format: Deep Color
Support audio format: LPCM
Max bandwidth: 600MHz
Max baud rate:18Gbps
Input cable distance(1080p resolution): 8m,AWG26 HDMI standard cable
0utput cable distance(1080p resolution): 8m,AWG26 HDMI standard cable;1.5m, USB 3.0 standard cable
Max working current: 0.7A/5VDC
Operating Temperature range: (-10 to +55)
Dimension (L x W x H): 70x56x19 (mm)
Weight: 56g

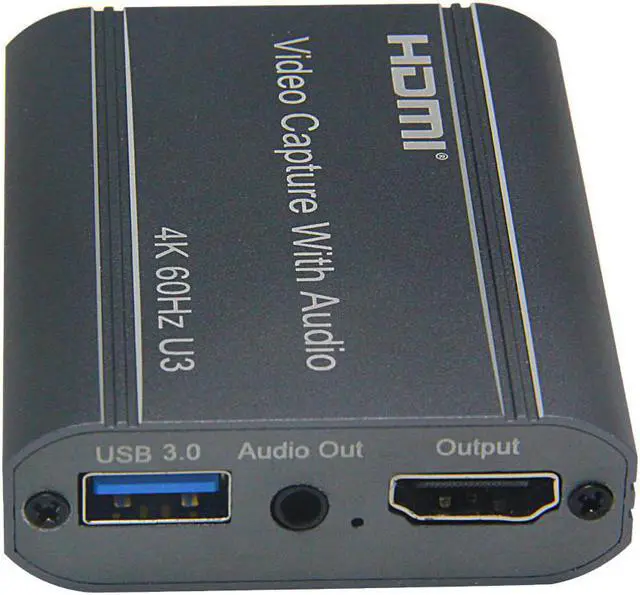

Connection and Operation:
1. Connect the UHD signal source to the HDMI input of the video capture with one HDMI cable.
2. Connect the microphone and the Mic port of the video capture together
3. Connect the display device to the HDMI output of the video capture with one HDMI cable.
4. Connect PC USB port to the USB output of the video capture with one USB 3.0 cable.
5. Connect the 5V/1A power adapter to the video capture;
4. Operation steps for USB video capture(OBS): Open the softwareChoose sources of Video capture Device/Audio Input CaptureSet the size of imageChoose Studio Mode(double window)Choose Start Recording.
Note:
Computer hardware configuration requirements
CPU: PC i5-3400 or above NB i7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA GT630 or aboveNC NVIDIA GT735M or above

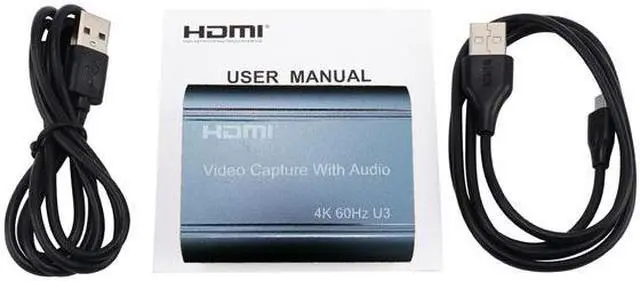

You'll receive:
1 x Video Capture Card
1 x User Manual
1 x USB Male to Male Cable
1 x Micro USB Cable
