4 Port SATA 3.0 6Gbps PCI-Express X1 Expansion Card Chip for Marvell 88SE9235 with Low Profile Bracket

Interface Type:PCI Express
Package:Yes
Model Number:IO-PCE9235-4I

4 Port SATA 3.0 6Gbps PCI-Express X1 Expansion Card Chip for Marvell 88SE9235 with Low Profile Bracket
About Description:
100% And .
88SE9235 Chipset for Marvell (IO-PCE9235-4I)
Specifications
Chipset: For Marvell 88SE9235
Ports:
4 Internal SATA 6Gb/s Ports
Compliant with PCI-Express Specification v2.0 and Backward Compatible with PCI-Express 1x
Compliant with Serial ATA Specification 3.0
PCI-Express x2 Interface is Compatible with PCI-Express x4, x8, and x16 slots
Supports Communication Speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps
Hot Plug and Hot Swap
Supports Native Command Queue (NCQ)
Supports Port Multiplier FIS Based Switching or Command Based Switching
Compatible with SATA 6G, 3G and 1.5G Hard Drives.
Support Low Profile Bracket
System requirements:
Windows 8
Windows 7
Vista
Windows XP
Server 2008
Server 2008 R2
Server 2003
Linux 2.6.x and Above (AHCI devices driver is a built-in feature)

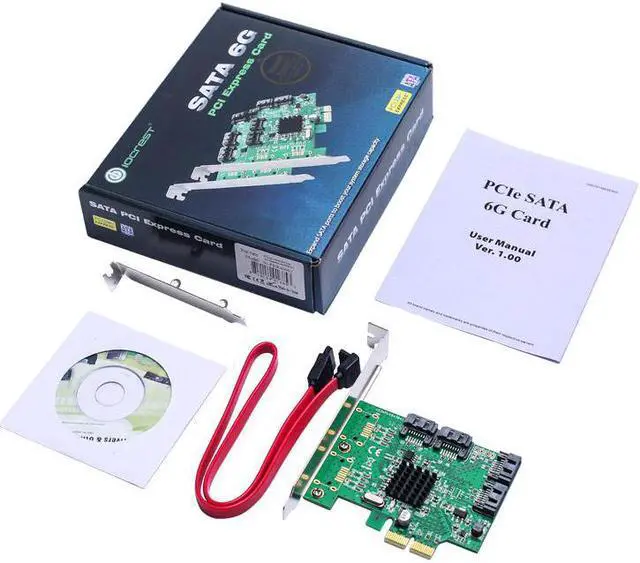

You'll receive:
1 x SATA III (6Gbps) 4-Port PCIe Expansion Card
1 x User Manual
2 x SATA Cable
1 x Driver CD
1 x Low Profile Bracket
Please check pictures for more details.
