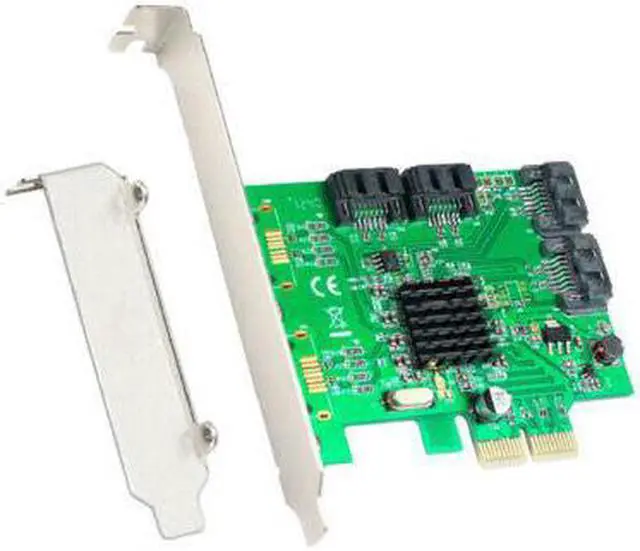

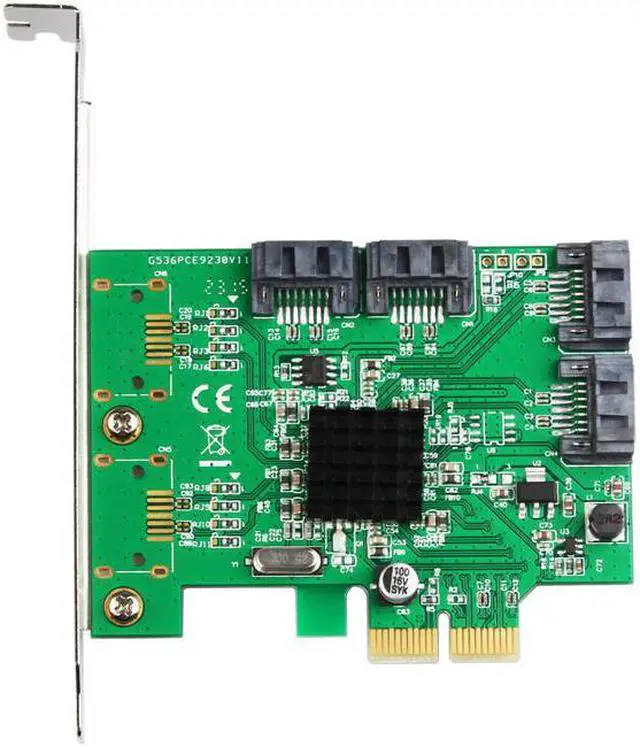

For Marvell 9230 Chipset PCIe to 4-Port SATA 3.0 Raid Card 6Gb/s with Low Profile Bracket Support RAID0 1 10

Interface Type:PCI Express
Package:Yes
Model Number:IO-PCE9230-4IR

For Marvell 9230 Chipset PCIe to 4-Port SATA 3.0 Raid Card 6Gb/s with Low Profile Bracket Support RAID0 1 10
About Description:
100% And .
9230 Chipset for Marvell (IO-PCE9230-4IR)
Specifications
Features:
1. Compliant with PCI-Experss Specification v2.0 and backward compatible with PCI-Express 1.x
2. Compliant with Serial ATA Specification 3.0 PCI Express x2 interface, and compatible with PCI Express x4, x8 and x16 slots.  3. Supports communication speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps Hot plug and Hot Swap.
4. Supports Native Command Queue (NCQ)
5. Supports Port Multiplier FIS based switching or command based switching.
6. Compatible with SATA 6G, 3G and 1.5G Hard Drives.
7. Support RAID function: RAID 0, RAID 1,RAID10,and HyperDuo.
Note: Not Supported RAID on PM.
System requirements:
Supports Windows XP/Vista/7/8/Server 2008 R2/8, Linux 2.6.x and above.

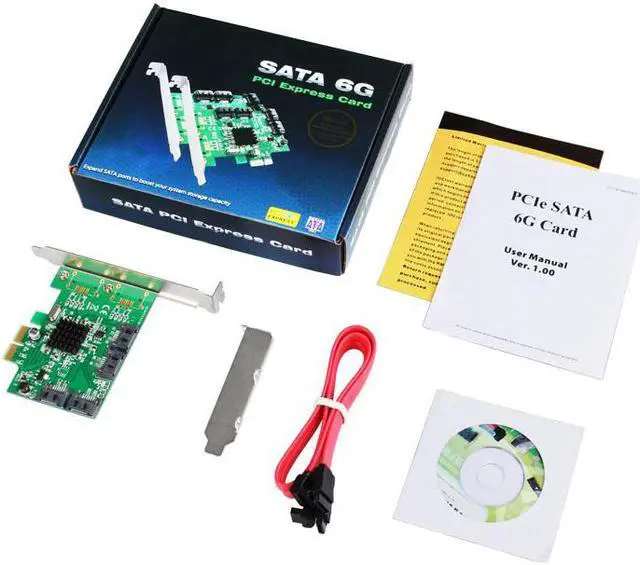

You'll receive:
1 x SATA III (6Gbps) 4-Port Raid Card
1 x User Manual
2 x SATA Cable
1 x Driver CD
1 x Low Profile Bracket
Please check pictures for more details.
