Video Capture HDMI 4K USB 3.0 Game Capture Card Device 1080P Record HD Live Streaming MIC 3.5mm for Camera PC PS4 TV Xbox Switch

Model Number:AC4710-2
Package:Yes
Interface Type:USB
Type:Video & TV Tuner Cards
Support:Win7/8/10/Mac OS
Feature 1:USB3.0 video capture
Feature 2:HDMI Video caputer card
Feature 3:1080p HDMI video card
Feature 4:USB3.0 HDMI
Input Max Res.:4K
HDMI loop-out Max Res.:1080P/60hz
Recording Res.:1080P
supports:phone capture card
function:live stream
software:OBS,potplayer,youtube

Video Capture HDMI 4K USB 3.0 Game Capture Card Device 1080P Record HD Live Streaming MIC 3.5mm for Camera PC PS4 TV Xbox Switch
About Description:
Introduction
This 4K/30Hz HDMI to USB3.0 Video Capture Dongle is easy to carry,have a superior performance,superior compatibility,simple installation and many other features,It can capture one HDMI signal input and compatible with Windows,Linux,Macos X and USB3.0 interface. It also compatible with many USB3. 0 chipset (Intel,Renesas,ASMedia,Fresco Logic) and USB2.0 and preview, record, capture, live broadcase through a number of third-party software via USB3.0 interface;The HDMI video capture meets UVC and UAC standard.
Features
1. It can capture one single channel HD HDMI video signals
2. The capture resolution up to 1080P/60Hz, input resolution up to 4K/30Hz, the HDMI Loop-out resolutionup to 1080P/60Hz

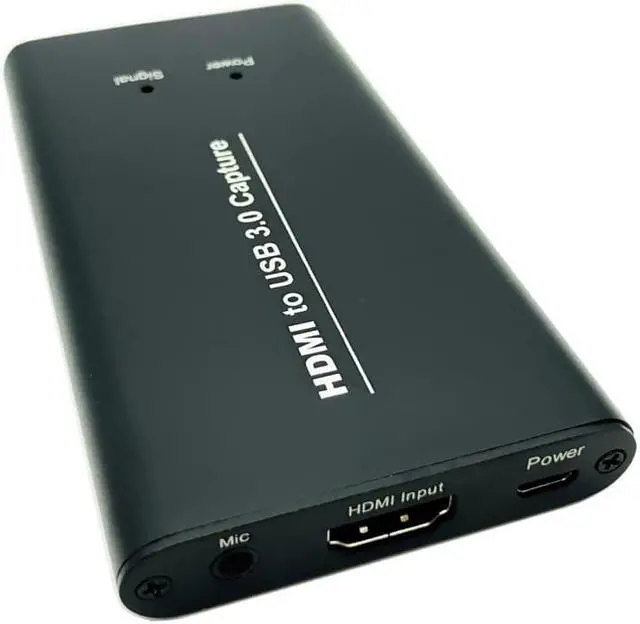

3. Support Mic recording input, 3.5mm line out, External power input.
4. Support MJPE and YUY2
5. Support UAC&UVCsupport 48 KHz PCM audio
6. It need to install a driver with some of the Windows7 system
7. It is compatible with Windows 7,Windows8,Windows8.1,Windows10 or later, Linux OS, Mac OS operating systems.
8. USB3.0, 300~350MB / s throughput max and it is compatible with USB 2.0 (40MB/s throughput max).
9. It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
10. It can automatically detect the input audio formats and swift it to 48KHz PCM audio.
11. Two capture can be used on one PC
12. The firmware can be updated.
13. With good picture quality, the RGB color range is 0-255, less delay.
14. Support for all third-party player software compatible with UVC and UAC protocols.
Computer system requirements:
Windows® 10 / Windows 8.1 / Windows 7 (SP1)
PC: Intel® Core i5-4440 3.10 GHz + NVIDIA® GeForce® GTX 660or above.
Notebook: Intel Core i7-4810MQ + NVIDIA GeForce GTX 870M or above
4 GB RAM (suggest 8 GB)
Mobile phone requirements:
Android phone (Most phones are supported)
Only USB2,no USB3.(android UVC driver not support USB3)
If its an Android phone with USB, then need pure USB2cable force into his mode to use.
Warm Tips:
1. Please do not use HUB or USB extension cable.
2. A low computer configuration will cause the recording screen to blinking randomly or black.
3. This is a normal phenomenon that the recording screen and the screen is not synchronized.

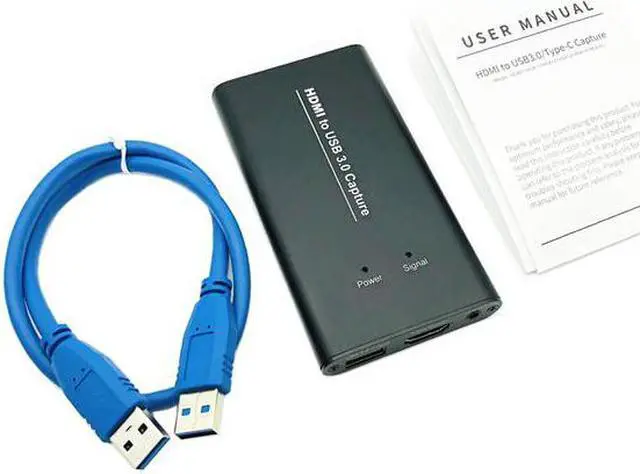

You'll receive:
1 x Video Capture Card
1 x USB 3.0 Cable
1 x User Manual
Please check pictures for more details.
