PCI Express Raid Card 4Port SATA 3.0 Add On Card Marvell 88SE9230 Chip PCIE SATA Raid Controller PCI-E to SATA HDD SSD Raid Card

Certification:NONE
Origin:CN(Origin)
Package:Yes
Model Number:AC4565
Type:Add On Cards
Interface Type:PCI Express
Feature 1:pcie to 4-port sata3.0 raid card
Feature 2:pci-e raid sata card
Feature 3:raid controller sata
Feature 4:pcie to sata raid card
Feature 5:pci-e to sata 3.0
Feature 6:sata raid card
Feature 7:for computer pc hard disk
Feature 8:pcie to sata3.0
Feature 9:pci express to sata 3.0 adapter
Feature 10:with low profile bracket
Feature 11:4 port sata raid card
Main Chip:Marvell 88SE9230

PCI Express Raid Card 4Port SATA 3.0 Add On Card Marvell 88SE9230 Chip PCIE SATA Raid Controller PCI-E to SATA HDD SSD Raid Card
About Description:
Specification:
SATA III 4-port PCI-e Version 2, Bus type PCI-E x4 Slot Controller Card, HyperDuo, Software RAID
Ports: 4 Internal SATA 6Gb/s Ports
Compliant with PCI-Express Specification v2.0 and Backward Compatible with PCI-Express v1.0
Compliant with Serial ATA Specification 3.0
PCI-Express x4 Interface (for Selected Models)is Compatible with PCI-Express x4, x8 and x16 slots
Supports Communication Speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps
Hot Plug and Hot Swap
Supports Native Command Queue (NCQ)
Supports Port Multiplier FIS Based Switching or Command Based Switching
Compatible with SATA 6G, 3G and 1.5G Hard Drives
RAID Function:
RAID 0-Striping (Stripe Size: 32K, 64K)
RAID 1-Disk Mirroring
RAID 10-Stripe of Mirrors (Stripe Size: 32K, 64K)
HyoperDuo Safe (Mirrored Protection) or Capacity-Cost (Optimized)
Note: Not Supported RAID on PM
Software R
equirement:
Windows XP/Vista/7/8/10, Windows Server 2003, 2008, 2008 R2, Linux 2.6.x and Above (AHCI devices driver is a built-in feature)

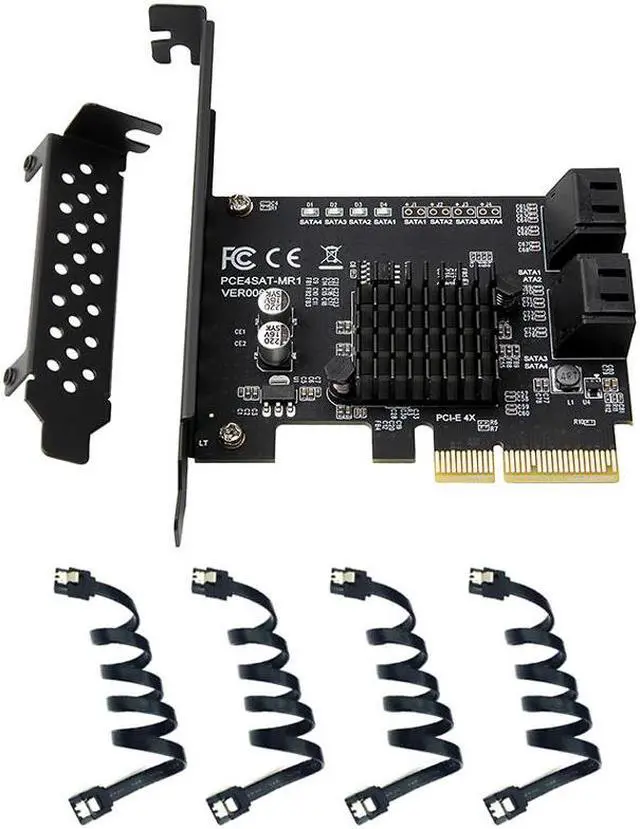

You'll receive:
1 x PCI Express to 4-port SATA3.0 Raid Card
4 x SATA Cable
1 x Low Profile Bracket
1 x Driver CD

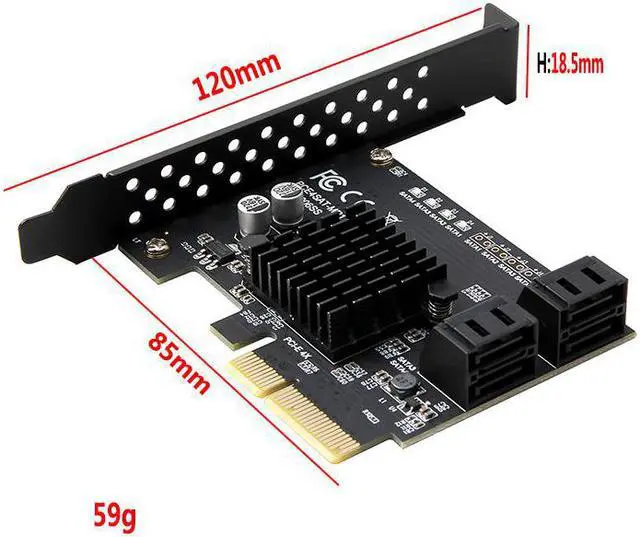

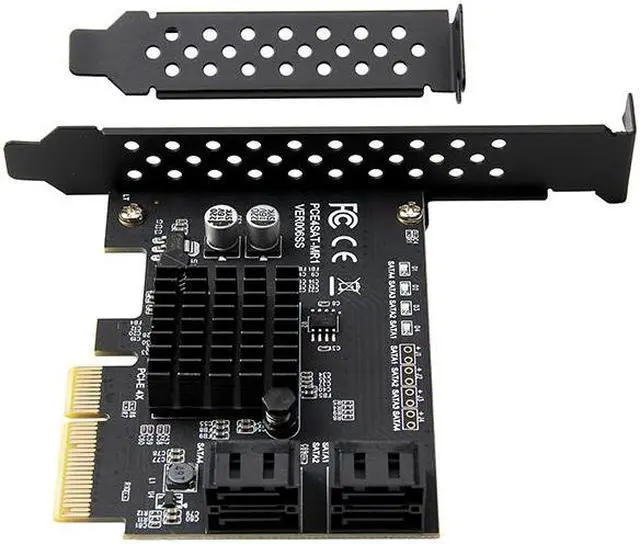

Please check pictures for more details.
