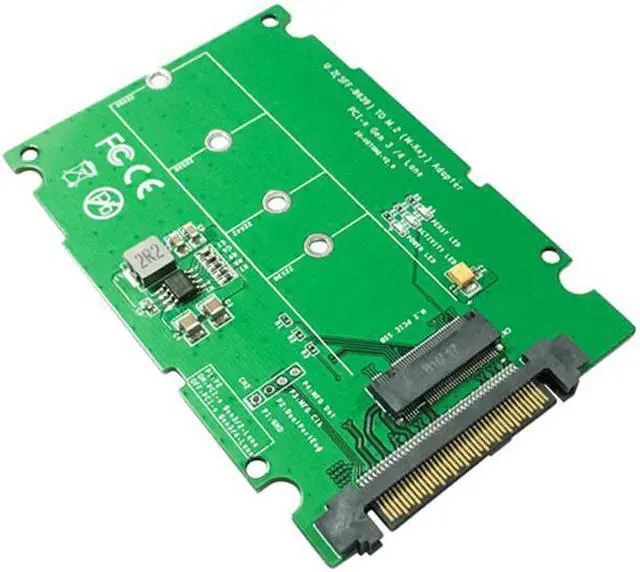

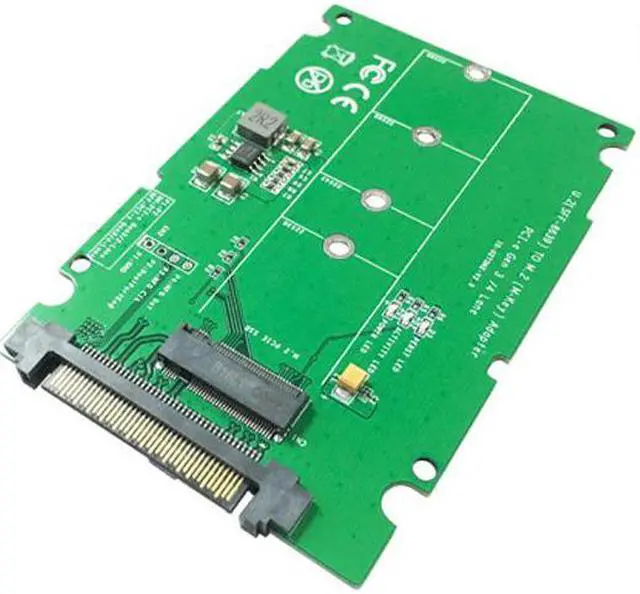

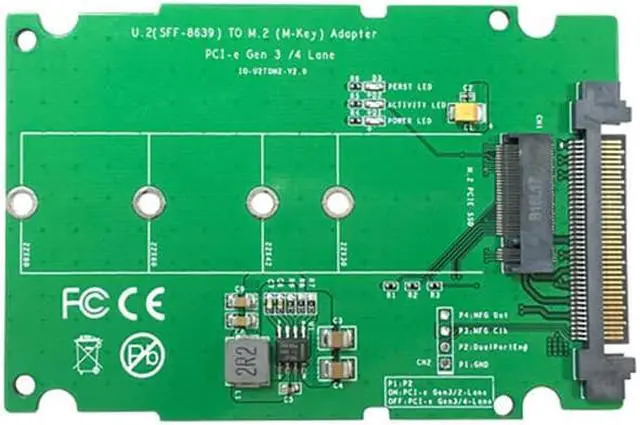

SSD Add on Cards 2.5" Enclosure Adapter U.2 (SFF-8639) to M.2 PCI-e I/F with Cable NGFF Convert Card

Interface Type:PCI Express
Package:Yes
Model Number:IO-U2TOM2-F1

SSD Add on Cards 2.5" Enclosure Adapter U.2 (SFF-8639) to M.2 PCI-e I/F with Cable NGFF Convert Card
About Description:
100% And .
Part Number: IO-U2TOM2-F1
Specifications
Buit-in SFF-8639 plug connector
Buit-in M.2 (NGFF) M-key receptacle connector
D1 ON indicate M.2/PCI-e 4 Lanes device power OK
D2 indicate active status
Supports CLKREQ functions to implement PCIe port circuit power on/off
PCI Express Base Specification Rev 3.0
SFF 8639 Enterprise SSD Form Factor Version 1.0a
PCI Express Card Electro-Mechanical* (CEM) Specification Rev 2.0
PCI Express M.2 Spec. Revision 0.7, Version 1.0
NVM Express 1.2a
PWM synchronous buck converter Power IC
3.3V, 5A maximum output current
Short circuit protection
In-rush current suppression
Thermal shutdown protection
ESD HBM (Human Body Mode)/2KV
ESD CDM (Charged Device Model) /500V
Support M.2 M-key Form Factor
Type B-M:8022/6022/4222/3022
Operating System Support:
Windows 7/8/8.1/10 64 bit
UEFI 2.3.1 or later
You'll receive:
1 x 2.5" Enclosure SSD Adapter
1 x SFF-8643 to SFF-8639 Cable
1 x User Manual
1 x Screws
Please check pictures for more details.
