PCI-E SATA Card 4 Port SATA III 3.0 6Gb Expansion Card Adapter PCI Express Controller Card Marvell 88SE9215 Chip with SATA Cable

Certification:NONE
Origin:CN(Origin)
Package:Yes
Model Number:AC4568
Type:Add On Cards
Interface Type:PCI Express
Feature 1:sata card
Feature 2:pcie sata card
Feature 3:4 port sata card
Feature 4:pci-e sata card
Feature 5:pci express sata card
Feature 6:for computer pc hard disk
Feature 7:sata 3 controller
Feature 8:pcie to sata3.0 card
Feature 9:sata adapter
Main Chip:Marvell 88SE9215

PCI-E SATA Card 4 Port SATA III 3.0 6Gb Expansion Card Adapter PCI Express Controller Card Marvell 88SE9215 Chip with SATA Cable
About Description:
Feature:
1. Compliant with Serial ATA 3.0 specification, down compatible with SATA2.0 SATA1.0.
2. Conforms to PCI-Express v2.0 specification and is compatible with PCI-Express v1.0.
3. Supports 6 Gbps, 3 Gbps and 1.5 Gbps of communication speed.
4. Support Gen 1I, Gen 1X, Gen 2I, Gen 2m, Gen 2x, and Gen 3i.
5. Support 4 ports SATA.
6. Support AHCI1.0 patterns and IDE patterns.
7. Support the native command queue (NCQ).
8. Support FIS based on port multiplier switch or command switching.
9. It supports hot plugged.
10. Compatible with SATA6G, 3G, and 1.5G hard drives.
Specification:
Product model: PCE4SAT-M01
Product master control: Marvell 88SE92xx
Product packaging: cowhide box
Product interface: PCI-E 1X 2X 4X 8X 16X
Support system: WINXP WIN7 WIN8 WIN10, LINUX, for MAC
Bus interface: PCI-Express 1X slot
Extension interface: 4xSATA3.0 interfaces
System requirements: there is an available PCI Express 1X slot, while supporting PCI-E 2X 4X 8X 16X
Operating system: Windows10/8/7 (32/64 bit) / Vista (32/64 bit) / XP/2003/2008/linux
Note:
Please allow slight size differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understand.

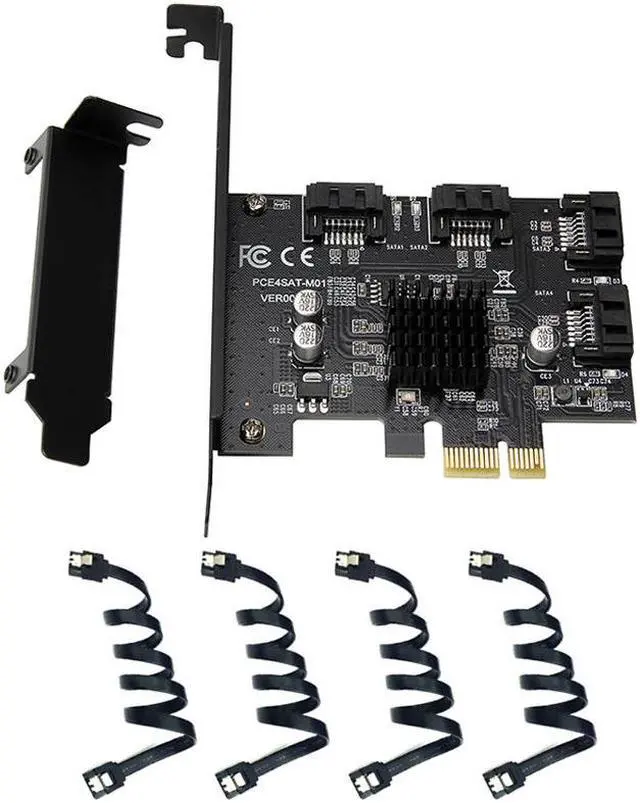

You'll receive:
1 x PCI-Express to SATA3.0 Expansion Card
4 x SATA Cable
1 x Low Profile Bracket
1 x CD Driver
Please check pictures for more details.
