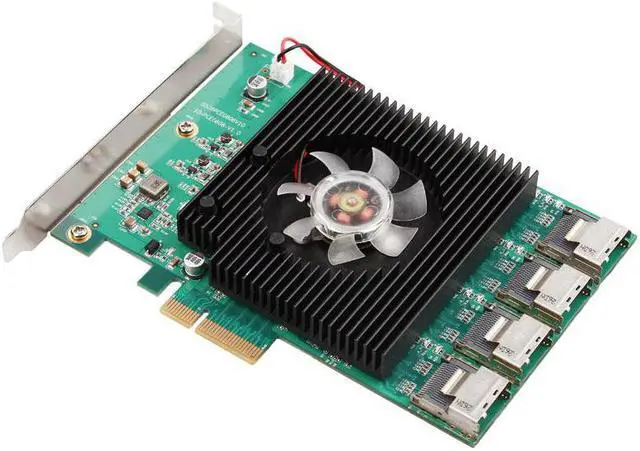

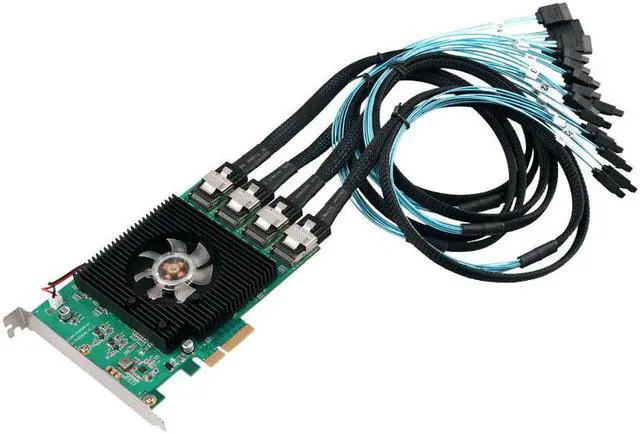

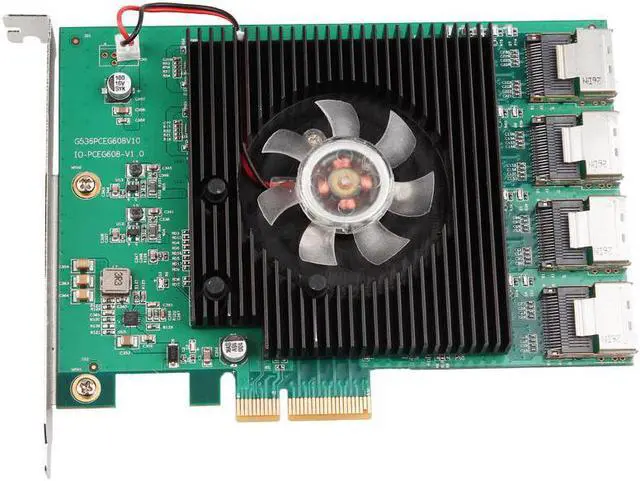

16 Ports SATA Card 6Gbps PCI Express Controller Card Marvell 88SE9215 Chipset PCIe to SATA III 3.0 with Mini SAS to 4 SATA Cable

Certification:NONE
Origin:CN(Origin)
Package:Yes
Model Number:AC4110
Type:Add On Cards
Interface Type:PCI Express
Feature 1:pcie to 16-port sata card
Feature 2:pci-e sata card
Feature 3:sata 3 controller
Feature 4:pcie to sata3.0 card
Feature 5:pci-e to sata 3.0
Feature 6:sata expansion card
Feature 7:for computer pc hard disk
Feature 8:pcie to sata3.0
Feature 9:pci express to sata 3.0 adapter
Feature 10:with Mini SAS to 4 SATA Cable

16 Ports SATA Card 6Gbps PCI Express Controller Card Marvell 88SE9215 Chipset PCIe to SATA III 3.0 with Mini SAS to 4 SATA Cable
About Description:
Features:
Compliant with PCI-Experss Specification v2.0 and backward compatible with PCI-Express 4x
Compliant with Serial ATA Specification 3.1
PCI Express x4 interface, and compatible with PCI Express x8 and x16 slots.
Supports communication speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps
Hot plug and Hot Swap.
Supports Native Command Queue (NCQ)
Supports AHCI 1.0 programming interface registers for the SATA controller
Supports aggressive power management
Supports error reporting ,recovery and correction
Supports Message Signaled Interrupt (MSI)
Supports Programmable transmitter signal levels
Supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i
Supports Port Multiplier FIS based switching or command based switching.
Supports Partial and Slumber Power Management states
Supports Staggered Spin-up
Compatible with SATA 6G, 3G and 1.5G Hard Drives.
Note: Not Supported RAID on PM
System Requirements:
Supports Windows XP/Vista/7/8/8.1/10 Server 2003/2008 R2, Linux 2.6.x and above
You'll receive:
1 x SATA III (6Gbps) PCI-Express Controller Card
1 x User Manual
4 x Mini SAS to SATA Cable
1 x Driver CD
Please check pictures for more details.
