Pin-Bare Laptop 44-Pin Male IDE To CF Card Adapter & 2.5 Inch Ide To Sata Adapter, Convert Laptop 44 Pin Male Ide Pata Hdd Hard

Origin:CN(Origin)
Gender:Male-Male
Connector A:TYPE-C
External Power Source:Yes
Connector B:DP/Mini DP
Certification:NONE

Pin-Bare Laptop 44-Pin Male IDE To CF Card Adapter & 2.5 Inch Ide To Sata Adapter, Convert Laptop 44 Pin Male Ide Pata Hdd Hard

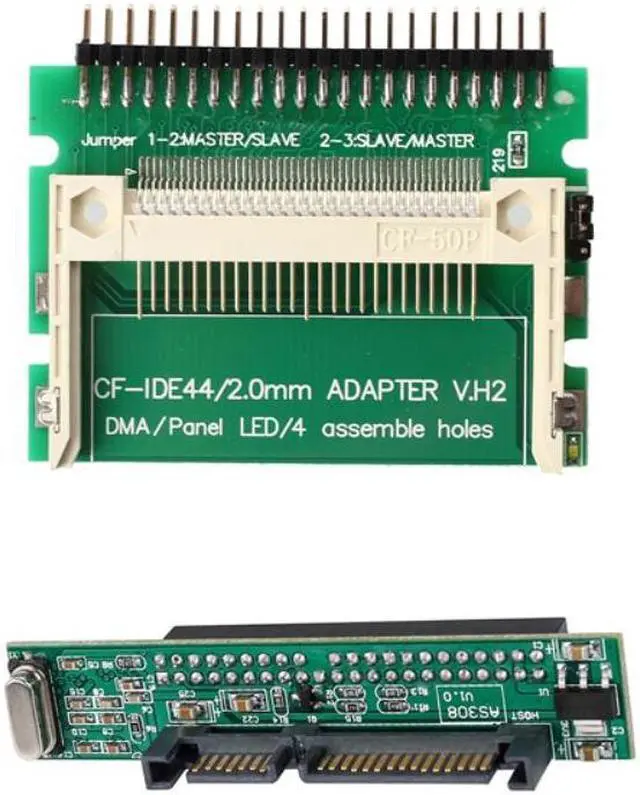

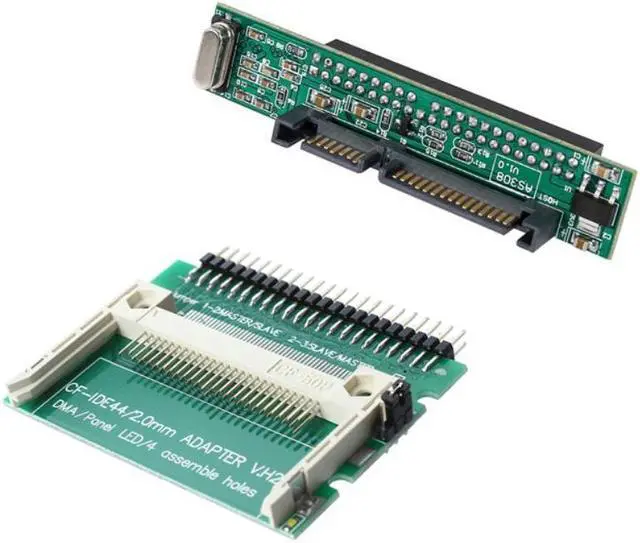

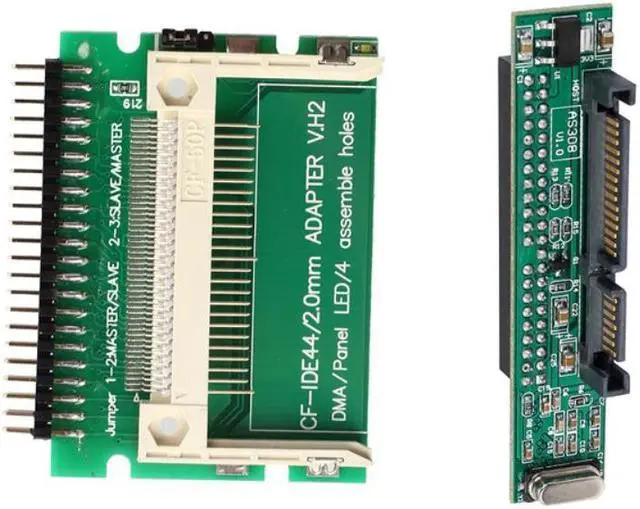

set2: 1 x 2.5 inch 44 pin IDE to SATA Adapter + 1 x 44 Pin Adapter Compact Flash CF
44 Pin CF compact flash adapter. The host PC will identify the inserted CF as standard 2.5 inch IDE HDD. Fully 2.5 inch IDE compatible which allows them to be used as hard drive replacements for embedded applications. Compact flash to 2.5 inch IDE adapter provides an alternative for data storage
For connecting a CF to 2.5 inch IDE host interface
One 22 Pin male SATA connector,One 44-Pin standard female IDE connector. IDE to SATA Adapter. The 44-Pin IDE 2.5 inch HDD to SATA Adapter can allow you use your laptop 2.5 inch IDE hard disk as SATA disk. You can use your 2.5 inch IDE hard disk in the laptop or desktop which have SATA connector. Adapter is good for up grading an old computer with 2.5 inch IDE HDD to a 2.5 inch SATA HDD.
Great for computers that use 44 pin IDE connector and require an upgrade to SATA 2.5 Inch Drives.
Dimensions: 2.72 inch x 0.55 inch x 0.69 inch.
Low power consumption, low operating temperature, no acoustic noise, cost efficient and fast read access time
Transparent to the operating system and does not require any drives
Master / slave jumper selectable
2.5 inch IDE male connector (44 pin)
For DOS use, make sure this set as primary master, and perform format
For Linux use, please make sure run lilo or grub on the boot sector of the CF card
For Windows use, it should be treated as master drive on the IDE bus
Compatible: CF Type I / CF Type II / CF Type III / MicroDrive
System Requirement: Pentium, Celeron, Centrino: WIN 98SE/ ME/ 2000/ XP/ VISTA
Important: Please do not plug the compact flash card while power on
7+15 pin SATA Male
44-Pin standard female IDE connector
Compliant with serial-ATA specification
Supports MS Windows 98/NT/ME/2000/2003/XP/Vista, DOS, Mac, Linux
The 44-Pin IDE 2.5 inch HDD to SATA Adapter can allows you use your laptop 2.5 inch IDE hard disk as SATA disk. You can use your 2.5 inch IDE hard disk in the laptop or desktop which have SATA connector.
Color: As shown
material: plastic
Package include:
1 x 2.5 inch 44 pin IDE to SATA Adapter
1 x 44 Pin Adapter Compact Flash CF
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
