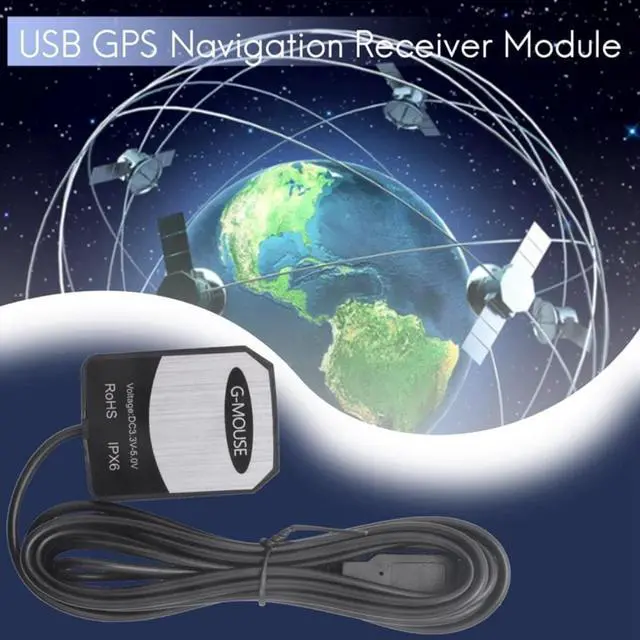

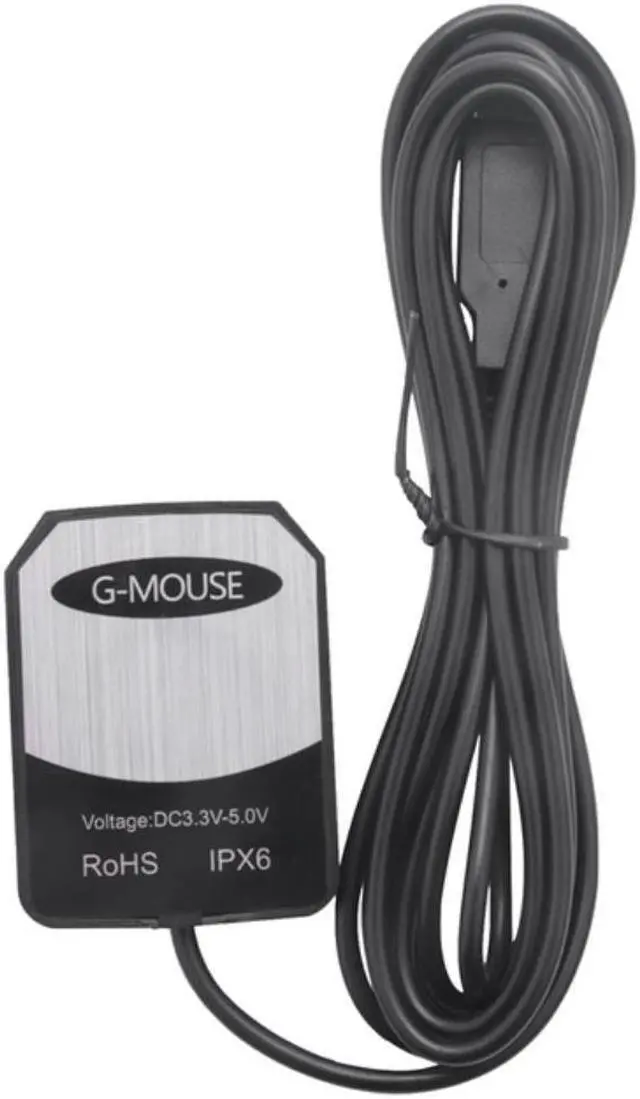

For Gps Data Acquisition, Pc Notebook Navigation Gps Usb Receiver Gmouse Antenna Module For Google Earth Windows

Origin:CN(Origin)
Certification:NONE

For Gps Data Acquisition, Pc Notebook Navigation Gps Usb Receiver Gmouse Antenna Module For Google Earth Windows
USB communication protocol support operating system: VistaXP,CE Windows10; Support: XP, win7, win8, win10 (support for all series win system drive); GPS G-703 receiver, is a complete satellite positioning receiver. Built in satellite receiving antenna, and using the most advanced satellite receiving core, with a full range of functions, can meet the industrial level positioning of the strict requirements and the use of personal needs.

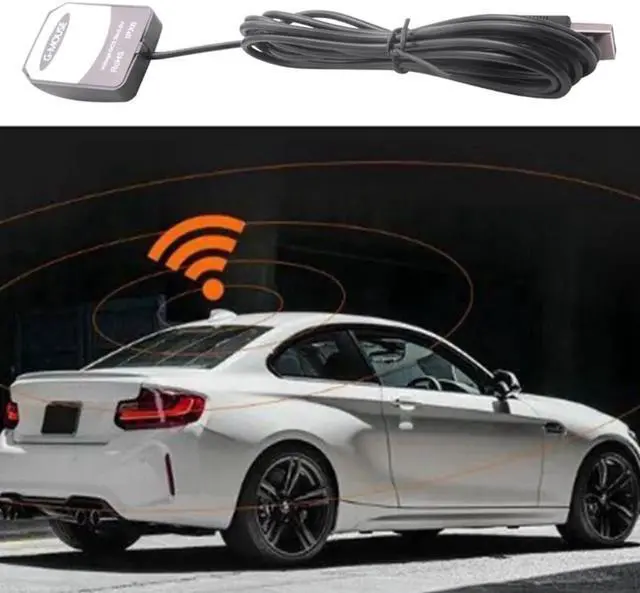

Applicable scope from car navigation, car alarm, bus station, Car DVR, car video surveillance, car DVD navigation, DVR, car audio, vehicle monitoring, vehicle terminal, tracking, security system, personal positioning, various surveys to agricultural use and so on. Use the basic needs only (appropriate power supply and the face of the sky; For vehicle traveling GPS data record, excellent positioning accuracy performance (reference satellite map track playback)
Use:(1) professional network test GPS receiver, telecom / Unicom / bus companyand so on all kinds of road test, necessary professional equipment.(2) for measuring. Geodetic survey, resource exploration, cadastral survey and so on.(3) traffic areas, ships, vehicles, aircraft positioning and navigation, vehicle and personnel tracking, logistics, intelligent transportation and so on.(4) outdoor sports, travel adventure.(5) electric power, telecommunications, communications network accurate timing.
Application domain:Notebook, on board computer, palm computer navigation. Vehicle DVD navigation, vehicle DVR, on-board computer, vehicle mounted hard disk recorder. Vehicle monitoring, video monitoring, bus automatic reporting station. Timing correction, synchronization application.
characteristic: Main chip: G7020; Built in TCXO device, to maintain good consistency in the temperature range of -40 to ~+85. Receiving frequency band: L1 GPS
Colour: Black
material:plastic
Built in a 20dB low noise amplifier and low loss filter, perfect support passive antenna.
Receiving frequency band: L1OF GLONASS
Antenna side to build high-quality ESD protection [TVS tube, to ensure that the ESD to achieve 8KV above [air discharge].
Receiving frequency band: E1B/C1 Galileo
Default support for wide area differential GPS enhancement system S137,.[S129... Wan enhanced satellite
Receiving channel: 56CH
Positioning performance
Less than 2.5m[Autonomous][50%]
Less than 2.0m[SBAS]
Rate: Less than 0.1m/s; direction: Less than 0.5Degrees
Timing accuracy: 30ns
Reference coordinate system: WGS-84
Maximum altitude: 50000 M
Max speed: 500m/s
Acceleration: Less than 4G
Electrical properties:
Tracking sensitivity: -161dBm
Capture sensitivity: -147dBm
Cold start time: 30s[average
Warm start time: 30s[average]
The auxiliary ephemeris data of AGPS[network: 3S
Operating temperature:
-40 C to C +85 C
Interface electrical properties:
Wide voltage range: the main power supply is +3.3V~+5.5V, self owned RTC power supply
Built in 25 * 25 * 4mm passive ceramic antenna
Other parameter
Standard clock pulse: 0.25Hz~10MHz
Location update rate: 1Hz~10Hz
UART port interface [default]
Data rate: 9600bps
Package Contents:
1 * USB GPS Receiver
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
